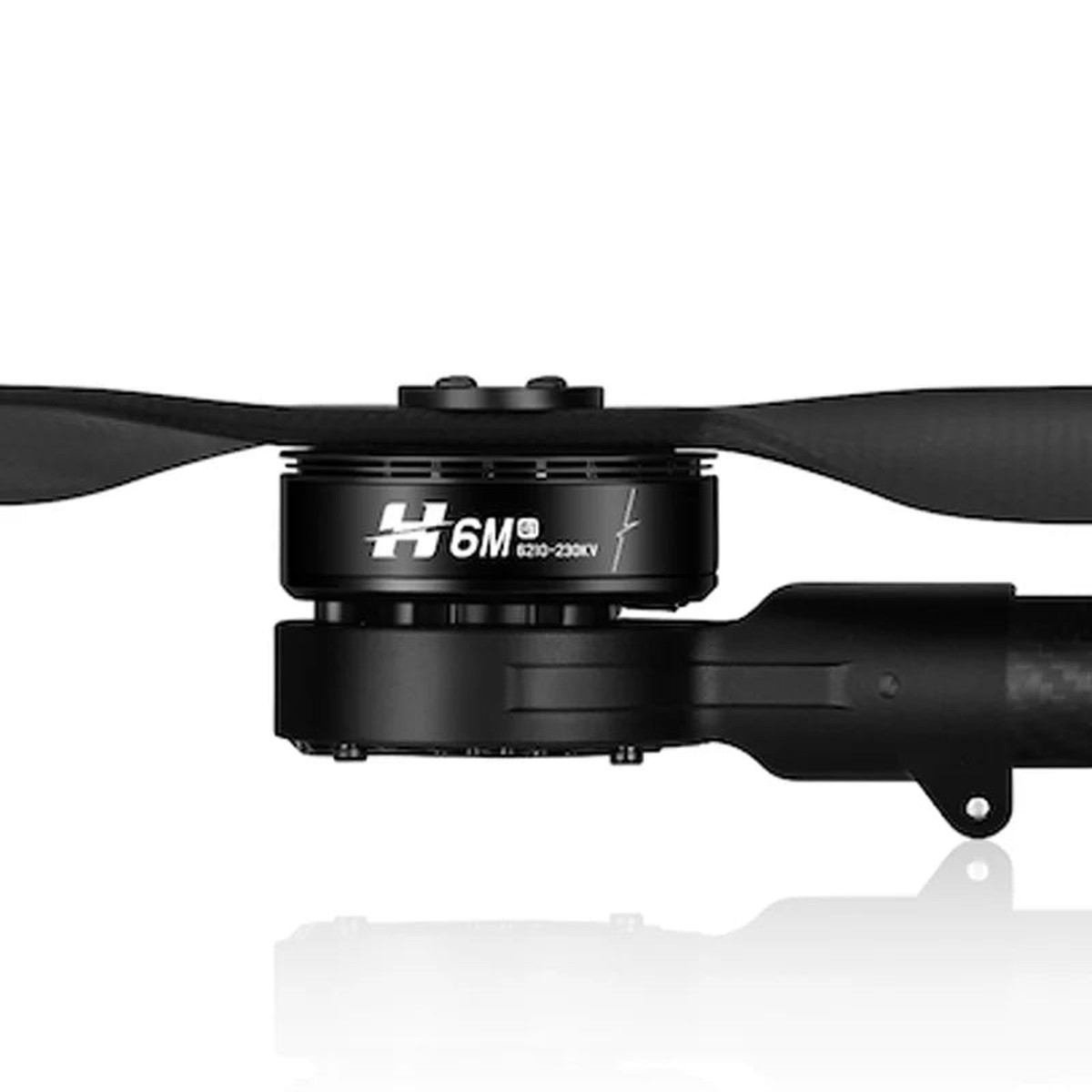

Name: Hobbywing H6M Motor - 12S 130KV 6.5Kg Thrust Integrated Power System With 60A FOC ESC, 22x78 Inch Propeller for 30MM Arm Industrial Drone
SKU: A2380053007
Availability: InStock

Description
Reviews (0)

Overview

The HOBBYWING H6M 6210 130KV brushless power system is an industrial-grade solution designed for single-axis loads ranging from 2 to 2.5 kg. Each axis offers a maximum pulling force of 6.5 kg and is compatible with 30mm carbon fiber tube arms. With an IP45 waterproof protection rating and efficient heat dissipation, this system serves as an all-in-one power solution for various applications, including small professional aerial photography, police operations, security, surveying and mapping, emergencies, and more.

The FOC ESC (Electronic Speed Controller) incorporates CAN communication and features a dual redundant design for both digital and PWM throttle options. It also includes power-on self-test, fault storage, over-current protection, stall protection, and other protective functions.

Specifications

Specifications

Max Thrust:

Recommended Battery:

Recommended Takeoff Weight:

Total Weightwithout propellers):

Powertrain Arm Tube Outer Diameter:

Operating Temperature:

Ingress Protection:

6.5kg

12S

2-2.5KG

418g

30mm

20~50

IP45

Motor

Stator Size:

KV:

Motor Size:

62*10 mm

130KV

67.7 * 33.1mm

ESC

ESC:

PWM Input Signal Level:

Throttle Pulse Width:

Signal frequency:

Max Allowable Voltage:

Continuous Current( Non-hermetic

Ambient Temperature 60):

Maximum Current( Non-hermetic

Ambient Temperature 60):

Communication Port:

Digital Communication Throttle:

Firmware Upgrade:

60A-FOC

3.3V/5V

1100-1940s

50-500HZ

63V

20A
60A

60A

CAN

Support

Propeller

Diameter X Thread Pitch:

Total weight( inc. adapter):

22*7.8″

36g

Details

H6M Load performance parametersH6M Technical Parameters

Voltage(V)	Propeller(Inch)	Throttle(%)	Thrust(g)	Current(A)	Power(W)	RPM	Efficiency(g/W)	Temperature()
48V (12S LIPO)	22*7.8″	30%	805	1.3	63.5	1819	12.7	50.0
33%	955	1.6	74.8	1983	12.8
36%	1175	2.0	94.7	2206	12.4
39%	1385	2.4	116.7	2400	11.9
42%	1635	3.0	146.1	2612	11.2
45%	1895	3.7	179.8	2814	10.5
48%	2235	4.7	227.8	3054	9.8
51%	2505	5.6	268.5	3230	9.3
54%	2765	6.4	309.6	3389	8.9
57%	3060	7.5	358.3	3559	8.5
60%	3300	8.3	399.4	3691	8.3
63%	3695	9.8	470.1	3896	7.9
66%	3935	10.7	515.0	4014	7.6
69%	4305	12.2	587.0	4189	7.3
72%	4575	13.4	641.9	4310	7.1
75%	4820	14.4	693.5	4417	7.0
78%	5220	16.3	781.3	4583	6.7
81%	5505	17.6	846.5	4696	6.5
84%	5685	18.5	888.6	4767	6.4
87%	6010	20.1	966.4	4893	6.2
90%	6335	21.8	1045.6	5019	6.1
100%	6570	23.0	1103.1	5113	6.0

Under the environment of sea level altitude, the data above is measured in room temperature of 25C. The throttle input is able to adjust the tension, and the motor temperature is the temperature of the rated throttle running for 10 minutes.
