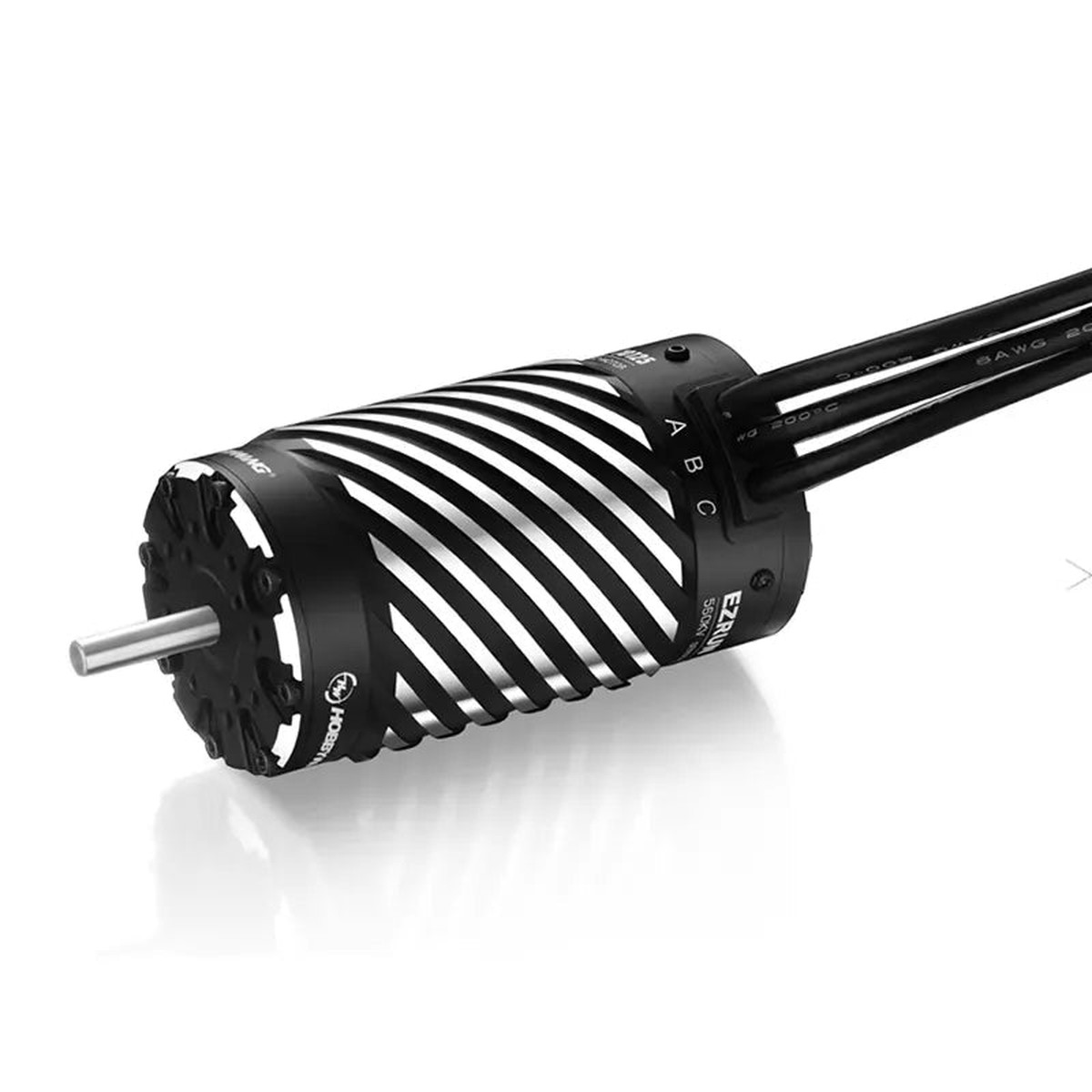

Name: Hobbywing EZRUN MAX 70125 SD Brushless Motor for Uber-sized vehicle (1/4, 1/5th Scale)
SKU: ELAC22173212225
Availability: InStock

Description
Reviews (0)

Overview

Hobbywing EZRUN MAX 70125 SD is a sensored brushless motor for uber-sized vehicle applications, designed for 1/4 and 1/5 scale heavy-duty off-road trucks.

Key Features

Fully sensored mode / high power (feature text).
Waterproof protection: IP67 (feature text).
Stated motor efficiency: up to 90% (feature text).
Modular detachable structure for easy disassembly and daily maintenance (feature text).
New sensored cable interface (feature text), and noted compatibility messaging with EzRun MAX4 HV ESC (feature text).
Manufacturer feature text includes: “Exquisite appearance” and an “innovative heat dissipation structure” description.

For customer service and order support, contact support@.

Specifications

Model	70125 Sensored (SD) 560KV
Pole	4
KV (No-load)	560KV
R. (Ohm)	0.0050
Current No-load (A)	3.6
Motor D. & L (mm)	70mm (2.760in) / 125mm (4.921in)
Shaft D. & L of the projecting part (mm)	8mm (0.315in) / 30mm (1.181in)
LiPo (S)	8-12S Lipo
W (g)	1995g
Applicable	1/4th, 1/5th Heavy-duty Off-road, Truck.
Best match with	MAX 4 HV ESC
Mechanical drawing notes (mm)	Dia. of cooling fins: 70; 125 +/- 0.30; 30 +/- 0.5; Dia. 66.50; Dia. 8; 7.3 Cut; 28; CCW 45 degrees; 22.50 degrees; 12-M4; Dia. 30; Dia. 40; 3-Heat shrink tube (black); 3-Dia. 8.0 GBC
Protection / efficiency (feature text)	IP67; Up to 90% motor efficiency

Applications

1/4th and 1/5th scale heavy-duty off-road truck setups.
All-weather and track conditions messaging is provided with IP-67 waterproof and dustproof protection (feature text).
