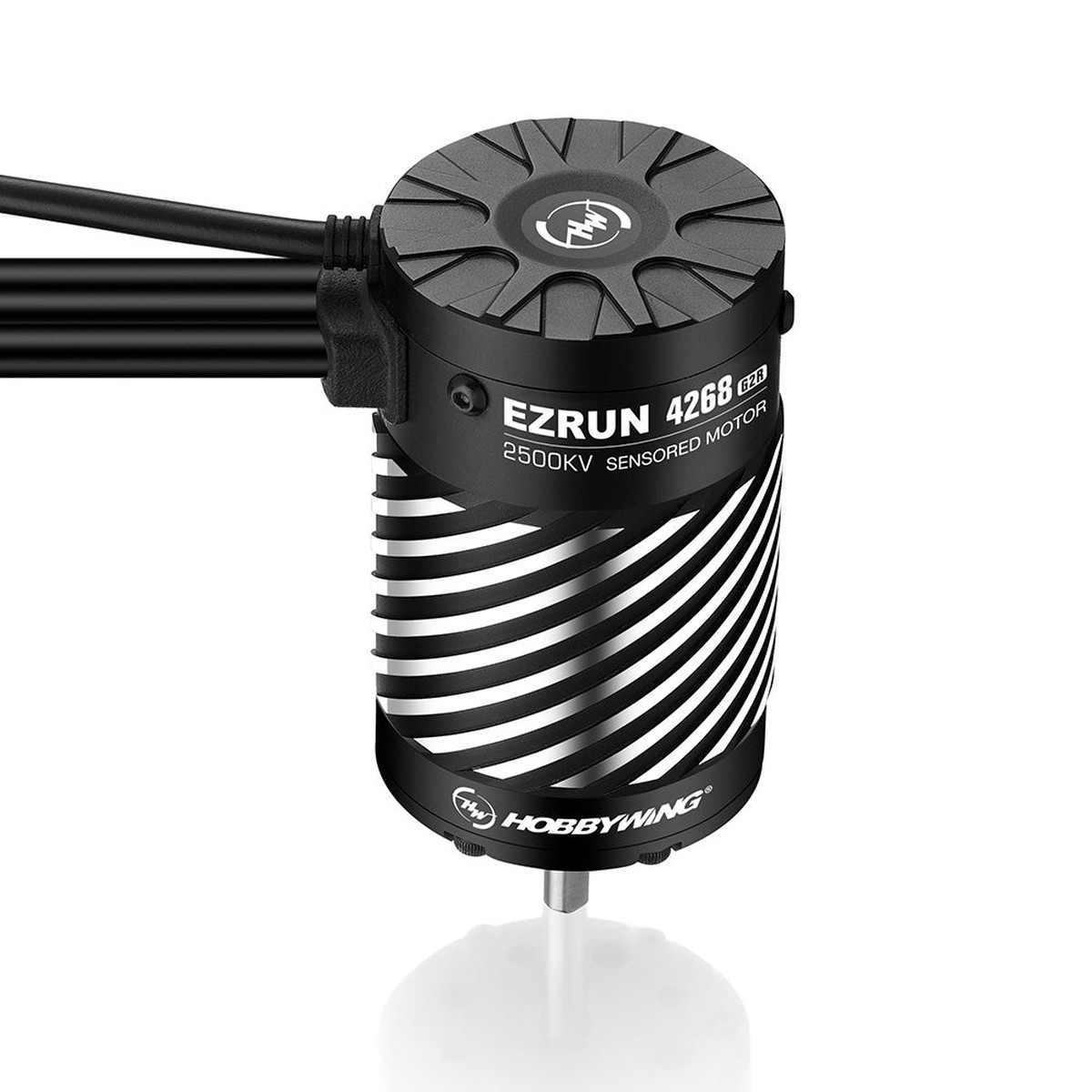

Hobbywing EZRUN MAX 4200 Series 4268SD G2R Sensored Motor 2500KV for 1/8 Buggy, 1/10 Truck

Overview

The Hobbywing EZRUN 4268SD G2R is a sensored motor designed for RC applications such as 1/8 buggy and 1/10 heavy-duty monster truck setups. It is designed for compatibility with the Hobbywing EZRUN MAX8 G2S ESC; the ESC can automatically recognize the motor to form a fully sensored power system and enable motor overheat protection.

Key Features

• Sensored design for linear, smooth response (sensor mode supported).
• Rotor uses four high-strength, high-temperature-resistant sintered Nd-Fe-B magnets with widened magnetic tiles for torque and stable output.
• Independent magnetic ring helps the Hall sensor output a pure rotor position signal and reduces sensor signal interference.
• High output efficiency to help reduce temperature and deliver more power under the same load.
• Construction elements listed: CNC-machined aluminum housing, high-purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, stainless steel output shaft, high-precision bearings.
• New sensor interface and rubber-covered bearings for improved waterproofing and dustproofing versus traditional sensored motors.
• Maximum speed up to 60,000RPM; noted as a 9% increase compared to the G2 motor.

Specifications

Whats Included

• (1) Ezrun MAX 4268 SD Motor (2500KV)
• (1) Manual

For product support, contact [email protected] or visit https://rcdrone.top/.

Applications

• 1/8 Buggy
• 1/10 Heavy-duty Monster Truck
• Use with Hobbywing EZRUN MAX8 G2S ESC (automatic motor recognition; motor overheat protection supported when paired with the matching ESC)

Installation & Use Notes

• Mounting hole screws: two sets of M4 and two sets of M3; mounting holes are 5.5mm in depth. Confirm screw length according to motor mounting plate thickness to avoid damage due to long screws.
• When connecting the motor and ESC, match the marked three-phase positions A, B, and C correspondingly.
• When connecting the motor sensor wire to the ESC sensor wire, connect according to the arrow mark on the sensor interface.
• Before powering on the ESC, check the motor installation and the order of all connections.
• All connections must be made correctly. Improper or weak connections can cause loss of control or major issues.
• Never apply full throttle without the pinion installed. Extremely high RPM without load may damage the motor.
• Stop use if the motor exceeds 100C/212F, as high temperatures can damage the motor and weaken the rotor.

Manuals

• User’s Manual: Ezrun MAX 4200 series Motors
• Product brochure: EzRun MAX4200 series Motors leaf_en.pdf

Details

The EZRUN 4268SD G2R is listed at 2500KV with 34S LiPo support, a 42mm diameter x 68mm length can, and a 5mm shaft.

The EZRUN 4268SD G2R sensored motor uses a finned 42mm can layout with a 4-M3/4-M4 mounting pattern and clearly marked shaft and bolt-circle dimensions for easier fitment.

The motor connects to the ESC using matched A, B, and C phase wires plus a sensored cable aligned to the arrow mark for correct operation.

The EZRUN MAX 4200 series sensored design is geared toward a linear, smooth throttle response.

Hobbywing EZRun MAX 4200 series motors are designed to pair with the EzRun MAX8 G2S ESC for matched operation and overheat protection support.

The EZRUN 4268 sensored motor is rated for up to 60,000 RPM and comes with pre-wired leads for straightforward installation.

The EZRUN MAX 4200 4268SD G2R sensored motor features a CNC aluminum shell with visible bearings, copper windings, and a sturdy output shaft.
