High Power Airplane ESC MT2204 2204 2300KV Brushless Motor 12A ESC SG90 Servo & Servo Tester for RC Aircraft DIY Toy Fan

High Power Airplane 2204 2300KV Brushless Motor+SG90 Servo + 5045 Propeller+ 12A ESC+Simple Servo Tester for RC Aircraft DIY Toy FanMT2204 2300KV Brushless MotorMotor parameters:2204-2300KVThe outer diameter of the motor is 28mmWeight: 27gSuitable for electrical regulation 12a-40amost pulls: 420gApplicable propeller: 4-6inch 2-blade propeller 4-5inch 3-blades propellerProduct specifications:(1) Output: <= 15mA (5.0)(2) Input: DC 4.2-6.0v(3) Output signal: 1.5ms(4) Size: 46*32*17MM(5) Weight: 8g(6) Adjustment method: manual, automatic, median.Features: It is very convenient to detect and set the virtual bit, jitter and median of the server.Can be connected to two sets of servos or ESC; single-chip control, good stability and high precision. Turn the knob to detect the servo.If you connect the electronic governor (with or without brush), you can get rid of the remote control device for manual speed control, for test adjustmentSpeed or motor performance is very practical, no need to tediously connect the remote control and receiver. It is equivalent to a “handThe function of the “receiver”, through the knob to simulate the transmitter steeringInstructions for use: Refer to the picture below, the left servo is connected to the upper and lower 3 groups, which can be connected to 3 servos; the right single-row pin is connected to the power supply, close to the side is the negative pole (see the identification symbol), and the battery negative pole is connected. Do not pay attention to the reverse, if the power supply is reversed, the IC will be burned; the pin corresponding to the S identifier will be ignored. When the power is turned on, the blue light will be on at the same time, then only the first one on the left will be illuminated. For the manual adjustment of the potentiometer test, press the button, the middle light is on, and it is the centering test; the third light is on, and the test is automatic. The test ESC is connected in the same way as the servo, but the input should not be connected to the power supply. The test motor must be connected to the ESC first, just like the ESC!CCPM Servo Consistency Master / Servo tester
The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.
There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic “window wiper” mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Specification:
Voltage consumption: DC4.8-6V
Size: 48 x 42 x 17mm
Original box: NO
Color: Blue
Item size: 48*42*17 mm
Net weight: 7g

12A Simonk ESC:
The ESC is special for MULTICOPTER design.
Constant Current: 12A
Input Voltage: 1-3 cell Lipoly
BEC: Yes (linear) [Remove middle wire to dissable
BEC Output: 5V/1A
PWM: 8 KHz
Max RPM: 240,000rpm for 2 Pole Brushless Motor
Weight: 9.5g

SG90 9G Micro Servo
This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
Key features:
Translucent body Lightweight Less noise

TS90A 9G servo parameters:
Size: 21.5mmX11.8mmX22.7mmWeight: 9 gramsNo load speed: 0.12 sec / 60 deg (4.8 V)Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)Operating temperature: -30~~+60 degrees CelsiusDead zone setting: 5 microsecondsWorking voltage: 4.8V-6V

Softly remind that battery in the picture is not included in the package.

Connection reference: 5045 Propeller, Motor, 12A ESC, Servo Tester, Battery. Diagram illustrates setup for MT2204 Brushless ESC with components and wiring.

(Send it as your choice)

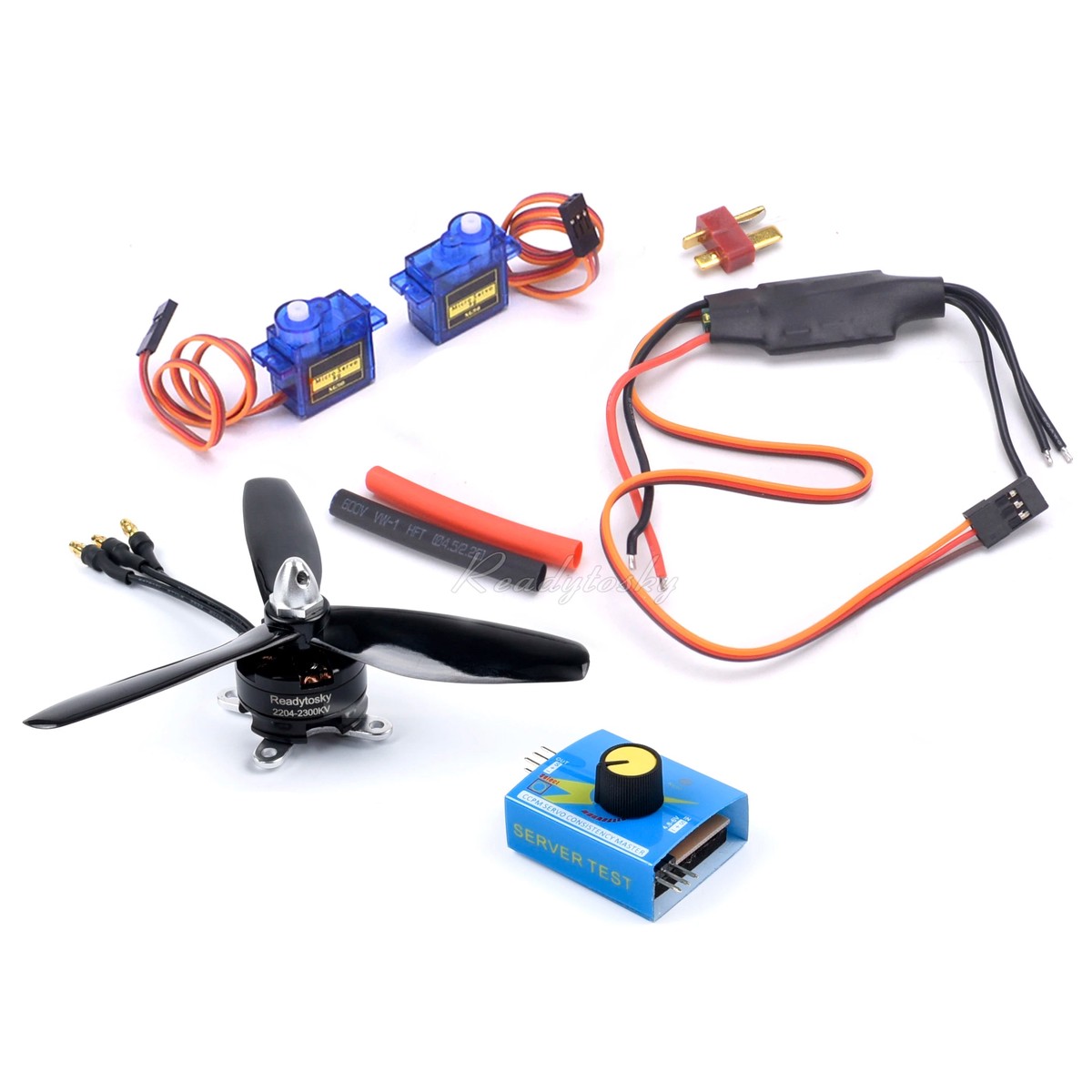

SG90 Servo, 12A ESC, MT2204 2300KV Motor, and Servo tester components for RC models. Includes motors, servos, ESC, and testing equipment.

MT2204 2300KV motor with 12A ESC, featuring black and orange wiring.

Connection reference: 5045 Propeller, Motor, 20A ESC, Servo Tester, Battery.

MT2204 Brushless ESC includes manual, median, automatic modes, servo signal/power/ground lines, power supply, mode button, and CCPM servo adjustment knob.

MT2204 Brushless ESC with wiring caution: plug in second row of needles.
