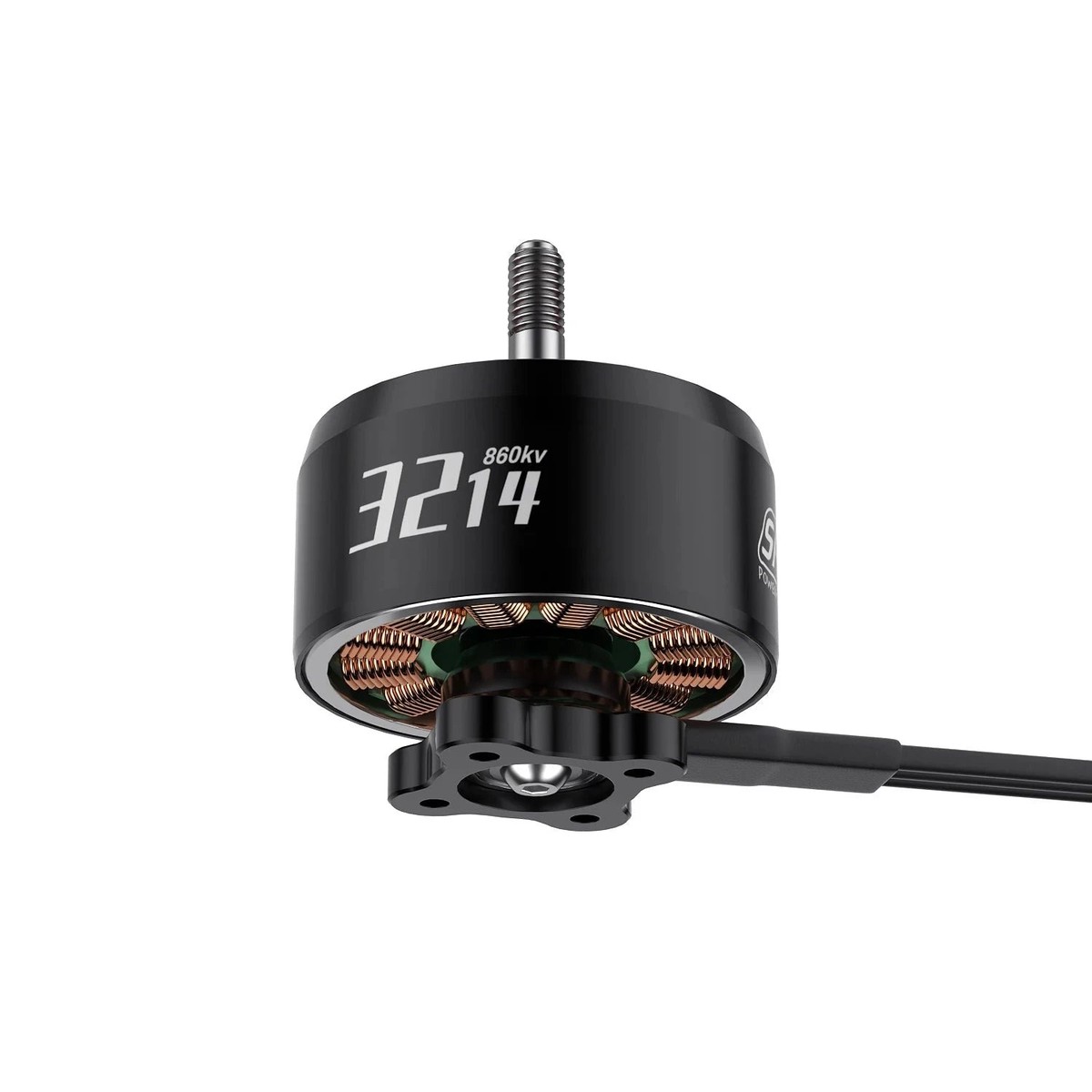

GEPRC SPEEDX2 3214 860KV drone motors SPECIFICATIONS

Name: GEPRC SPEEDX2 3214 860KV Motor 9-10 Inch Long Range FPV Drone 6S Brushless Motor FPV RC Multicopter Racing Drone Parts DIY PART
SKU: ELAC22173216567
Availability: InStock

Brand Name: GEPRC

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: Engines

Size: 1 inch

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: Motor

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: 3214 860KV Motor

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

Summary

The SPEEDX2 3214 motor is specially designed for 9-10 inch long range FPV.Large size provides powerful power for your flight.The big torque of 860KV makes the payload more reasonable. The overall combination of red and dark tones highlights the individual appearance.Use high-end bearing shaft to ensure the smooth operation of the motor.

Feature

1. Integrated outer rotor, high-precision CNC aluminum alloy
2. High temperature resistant enameled wire, more stable under high temperature conditions
3.Personalized hollow appearance, reduced weight and higher power
4.Use N52H magnetic steel, with high magnetic energy product and stronger magnetic field

Specifications

Model: SPEEDX2 3214 Motor
KV: 860KV
Configuration: 12N14P
Magnet: N52H
Rotor material: 7075-T6 aviation aluminum alloy
Stator diameter: 32mm
Stator height: 14mm
Output shaft diameter: 5mm
Dimensions: 42mm * 49.8mm
Outlet specification: 16AWG 500mm
Rated voltage: 25.2V 6S(LiPo)
Maximum power(W): 1867.11w
Maximum current(A): 77.8A
Mounting hole: 19x19mm(M3)
Color: red and black
Weight: 155.0g
Applicable models: Suitable for 9-10 inch models

Includes

1 x SPEEDX2 3214 motor
4 x M3*9 round head screws
1 x M5 anti-slip nut

Specifications GEPRC SPEEDX2 3214 MOTORS KV: 860KV Magnet: NS2H Rotor material: 7075-T6 Bearing type: NSKINMB Configuration: 12NI4P Dimension: 0842 L4g.8mm Shaft Diameter: SmmShaft Protruding Length: 16.5mm Propeller: 9-10 inch Mounting holes: 19*19mm(M3) Lead: 16AWG-SOOmm ESC: 8OA In

The GEPRC SpeedX2 motor has a diameter of 16.9mm, an output power of 500mW, and a KV value of 860KV with a length of approximately 1214mm and a shaft diameter of 42mm.
