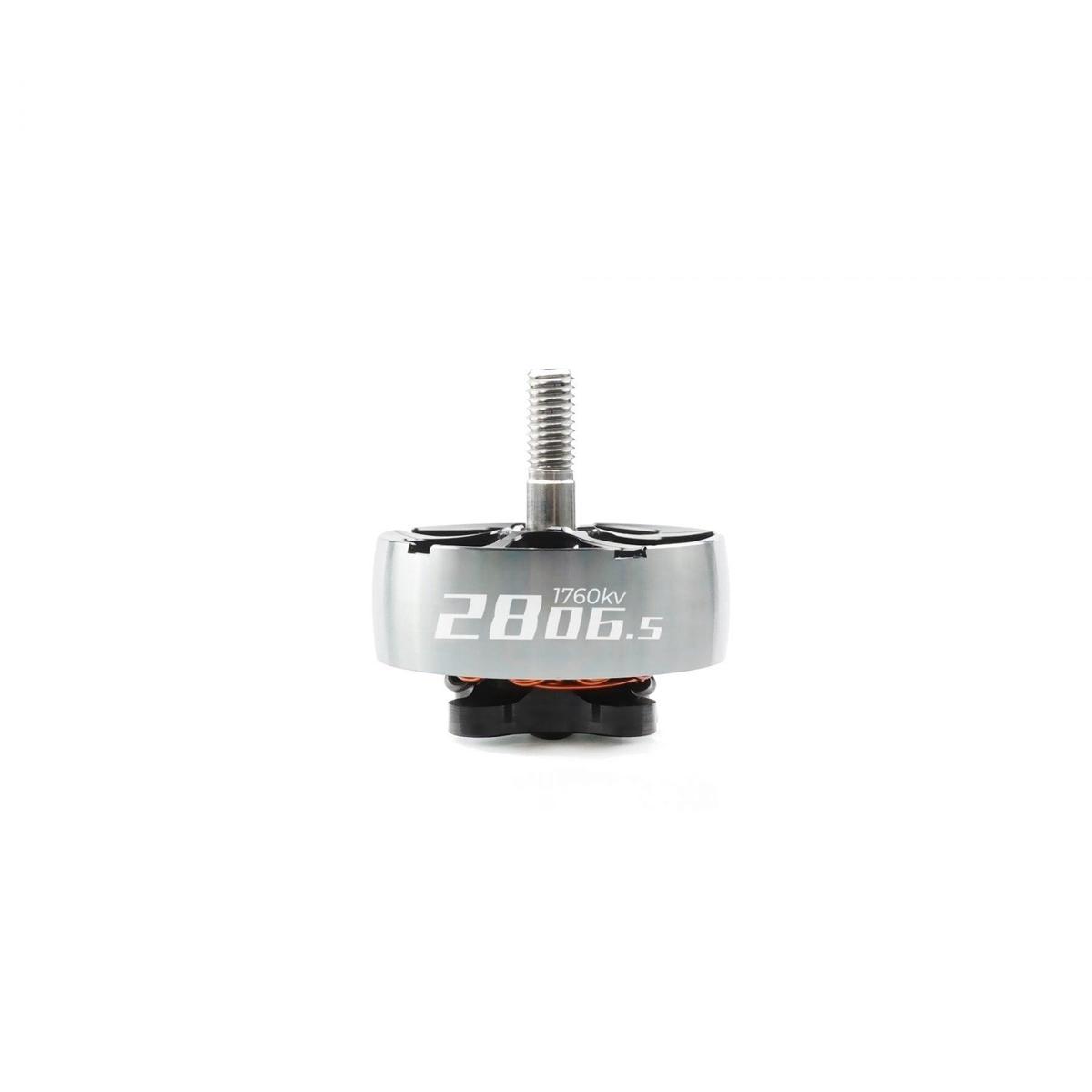

GEPRC SPEEDX2 2806.5 1350KV/1760KV Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: SPEEDX2 2806.5 1350KV/1760KV Motor

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Certification: FCC

Certification: WEEE

Certification: RoHS

Certification: CE

Brand Name: GEPRC

Summary:

The SPEEDX2 2806.5 brushless motor is the second generation motor of GEPRC,featuring a new design elements and a lighter structure.

The SPEEDX2 2806.5 motor has good heat dissipation, light weight, enough power, good stability and is made of customized high-quality materials. With linear and delicate throttle control and excellent magnetic circuit design.SPEEDX2 2806.5 has a super smooth flying experience with superb power, high durability and crash resistance.

SPEEDX2 2806.5 motor is perfect for 6-7 inch long range and cinematic FPV.

We are pursuing lighter weight, more responsive, more efficient and more powerful brushless motors.

Features:

1. Ultra-light weight, only 48.0g.

2. Excellent magnetic design, stable power output.

3. Strong power and prompt response speed.

4. Delicate and precise throttle control, smooth flight experience.

5. Good structural design with high strength shell and excellent heat dissipation efficiency.

6. New optimized design for 6-7 inch propellers, perfectly suitable for 6-7 inch long range FPV models.

Specification

Model:SPEEDX2 2806.5-1350KV

• KV: 1350KV

• Configuration: 12N14P

• Magnet: N52H ARC

• Stator Diameter: 28mm

• Stator Length: 6.5mm

• Shaft Diameter: 4.0mm

• Dimension: 34.8mm*33.9mm

• Lead wire size: 20#AWG 250mm

• Idle current (10V) : 1.25A

• No. of Cells (LiPo) : 4-6S

• Max Continuous Power(W) (5S): 960

• Max Current (5S) : 40A

• Internal Resistance: 58m

• Mounting Holes: 19x19mm

• Weight: 48.0g

• Suitable for: 6-7 Long Range Quadcopter

Model:SPEEDX2 2806.5-1760KV

• KV: 1760KV

• Configuration: 12N14P

• Magnet: N52H ARC

• Stator Diameter: 28mm

• Stator Lenght: 6.5mm

• Shaft Diameter: 4.0mm

• Dimension: 34.8mm*33.9mm

• Lead wire Size: 20#AWG 250mm

• Idle Current(10V): 1.7A

• No. of Cells (LiPo): 4-6S

• Max Continuous Power(W) (5S): 1200

• Max Current (5S):50A

• Internal Resistance: 47m

• Mounting Holes: 19x19mm

• Weight: 48.0g

• Suitable Quadcopter: 6-7 Long Range Quadcopter

Include:

1 x SPEEDX2 2806.5 Motor

5 x M3*8mm Screws

5 x M3*10mm Screws

1 x M5 Flange Nut

GEPRC SpeedX2 2806.5 Motor: High-performance, efficient, and safety-focused design for 6-7 inch long-range/FPV drones.

This high-performance motor features a strong and durable titanium alloy shaft, customized arc-shaped magnets, and high-quality bearings for smooth operation. The exterior design exudes elegance and sophistication, with a maximum KV rating of 1350.

Experience high-performance flight with this powerful motor, capable of generating up to 2.7kg of thrust per unit. Its excellent mounting compatibility ensures a seamless and enjoyable flying experience.

Enjoy high efficiency and endurance with this motor’s advanced design features: arc-shaped magnets, high-quality bearings, and a semi-hollow titanium alloy shaft (48g including a 3cm cable). This results in good heat dissipation, high durability, and exceptional performance.

Features NS2H arc-shaped magnets with strong magnetism for stable power output and high efficiency. The energy-saving stator design reduces heating, leading to improved work efficiency and endurance.

Experience precise control and powerful performance with the GEPRC SPEEDX2 2806.5 motor, designed for 6-7 inch long-range quads. Weighing only 48g, this lightweight motor provides exceptional power-to-weight ratio, making it ideal for high-performance flights.

Featuring custom nuts that securely fasten to the steel shaft threads, the reinforced base provides exceptional high-structural strength and enhanced collision resistance, offering added durability for demanding flight applications.

Motor Specifications:Dimension: 34.8mm x 33.9mmInternal Resistance: 58mOhmsWire Size: 20 AWG (250mm)Configuration: 12Ni-ApShaft Diameter: 5.0mmRated Voltage: 4.65VIdle Current: 1.25AMaximum Current: 40AMaximum Power: 960WWeight: 48g, including a 3cm wire
