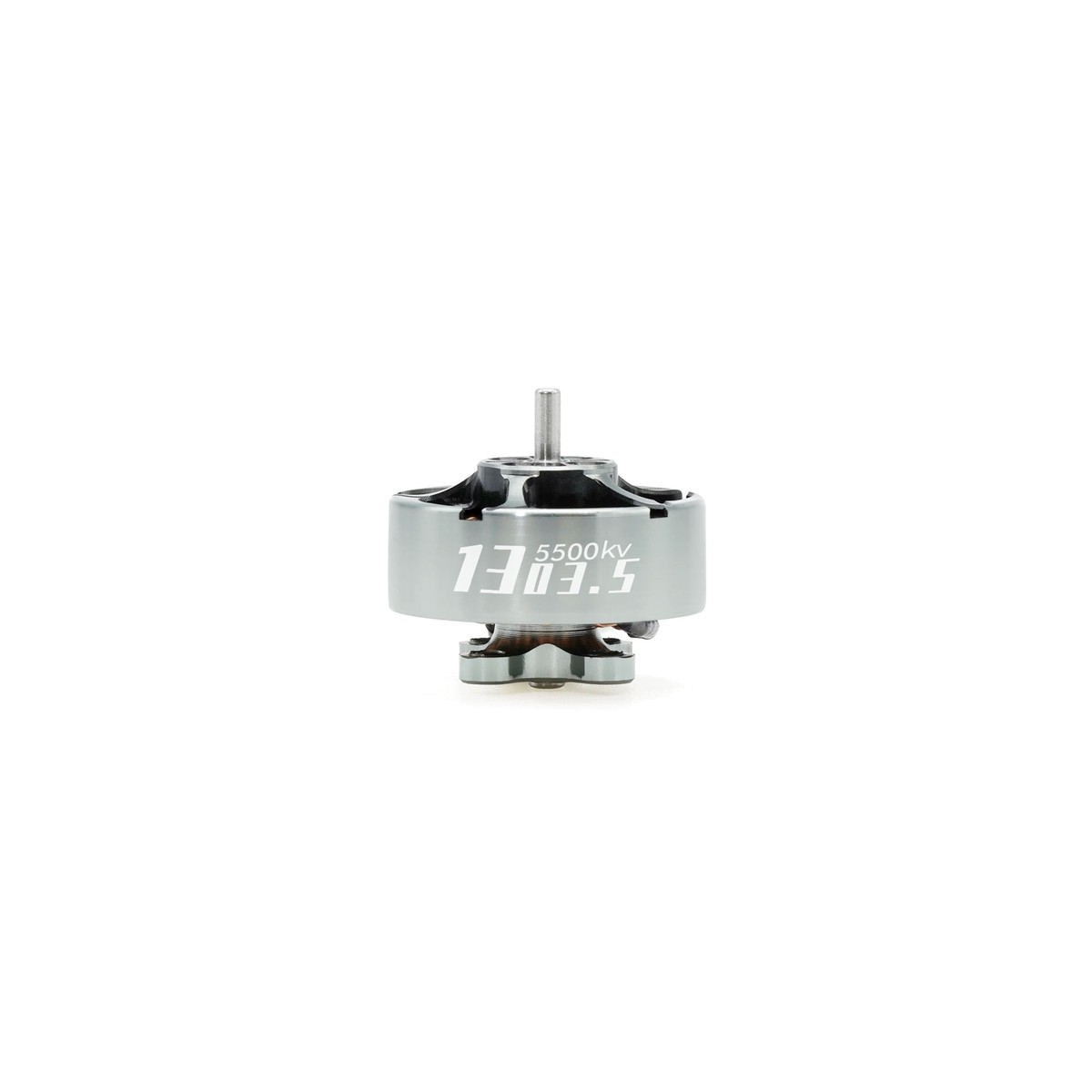

GEPRC SPEEDX2 1303.5 3800KV/5500KV Motor – Suitable for 2 Cinewhoop FPV Drones Cinelog20 for RC FPV Quadcopter Freestyle Drone

Summary

The SPEEDX2 1303.5 motor is an innovative brushless motor with a lightweight design, unique appearance and good heat dissipation.

With a lightweight structure, only 6.5g (90mm cable length).The outer rotor uses a blade design, which is exquisite and magnificent. The raised propeller platform has greater compatibility with the inverted mounted propeller models, and avoids the contact between the large-pitch propeller and the top of the rotor to cause the propeller to be unbalanced. A large area is hollowed out to reduce weight, so as to obtain good heat dissipation and efficiency, and effectively control the working temperature of the motor.

SPEEDX2 1303.5 motor is made of high quality 7075-T aircraft aluminum material, which brings better strength to the rotor. Good magnetic circuit design, with stable linearity and efficient explosive power, brings pilots a super smooth flying experience. Perfect for pilots to build their own 2 cinewhoop FPV drones.

GEPRC is committed to providing pilots with brushless motors that are lighter in weight, faster in response, higher in efficiency and stronger in power.

Specification

Model: SPEEDX2 1303.5-5500KV

• Configuration:9N12P

• Magnet: N52H ARC

• Stator diameter: 13mm

• Stator height: 3.5mm

• Shaft diameter: 2mm(in)1.5mm(out)

• Dimension: 17.35mm*11.7mm

• Lead wires: 28#AWG 90mm

• Rated voltage (LiPo): 2-4S

• Maximum power: 128.8W

• Maximum current: 8.7A

• Recommended ESC: 35A

• Mounting hole: 9mmx9mm(M2)

• Color: titanium color

• Weight: 6.5g (90MM wire length)

• Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

Model: SPEEDX2 1303.5-3800KV

• Configuration: 9N12P

• Magnet: N52H ARC

• Stator diameter: 13mm

• Stator height: 3.5mm

• Shaft diameter: 2mm(in)1.5mm(out)

• Dimension: 17.35mm*11.7mm

• Lead wires: 28#AWG 90mm

• Rated voltage (LiPo): 4-6S

• Maximum power: 139.9W

• Maximunm current: 6.3A

• Recommended ESC: 35A

• Mounting hole: 9mmx9mm(M2)

• Color: titanium color

• Weight: 6.5g (90MM wire length)

• Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones

Feature

1. 7075 aircraft aluminum one-piece high-strength housing makes the motor more durable and crash-resistant.

2. The small size and lightweight design makes the flight feel lighter. The weight with the cable is only 6.5g (90MM cable length), suitable for building a 2-inch drone with propeller guard.

3. Rotor’s large hollow design has a large air intake, and strong temperature control so that the motor runs more stable.

4. N52H strong magnet, with low internal loss stator, the efficiency is significantly improved, making the endurance more durable.

5. The 1.5mm shaft is generally suitable for conventional 2-2.5 inch propellers on the market.

Includes

1 x SPEEDX2 1303.5 motor
6 x M2*6mm screws
6 x M2*8mm screws

GEPRC (SPEEDA POWER.SAFETY’EFFICIENT 1411.5 MmTIA High performance ultra-light Unique appearance Good heat dissipation 6.5g 0 17u9.5 GPELL 3800kv

powerful & precise control Suitable for building 2-2.Sinch Freestyle & Racing drone V SvosqEL MOOSG .

Features high-efficiency design with strong magnets, low-loss stator for optimal performance, enabling extended flight times.

Specifications: 3800KV motor suitable for 6S batteries, while 5500KV motor is suitable for 4S batteries. Compatibility details include: F45A ESC, 13183 14i5 1Ji9k GF3016*3 Propeller. Additional specifications include: throttle point – 8.7A, 100% current – 6.3A, voltage – 14.8V, tension – 361V (22.2V), and power output – 128.8W.

Product Details: * Item: SPEEDX2 1303.5 * Weight: 6.5g * Motor Dimensions: 17.35mm (length) x 11.7mm (width) * Internal Resistance: 450m * Wire Size: 28# AWG, 90mm long * Configuration: 9N12P (9 turns, 12 pitches) * Shaft Diameter: 1mm * Rated Voltage: + 4S: [insert voltage range] + 6S: [insert voltage range] * Idle Current: 0.4A * Maximum Current: 6.3A * Maximum Power: 139.9W Item Description: The SPEEDX2 1303.5-5500KV is a high-performance motor with a wire size of 28# AWG and a length of 90mm.
