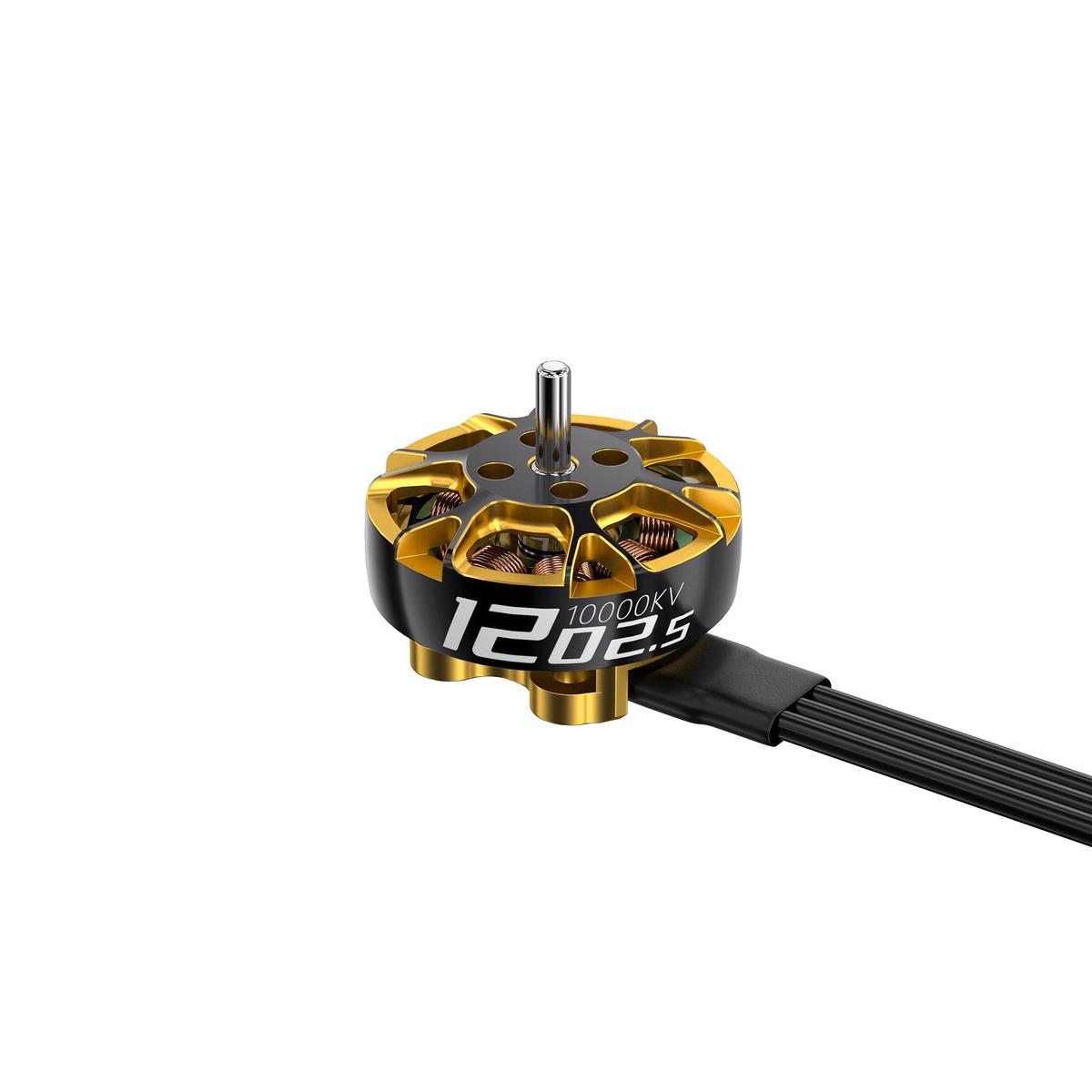

Name: GEPRC SPEEDX2 1202.5 Motor 10000KV/15000KV, 12S, 9N12P, 9mmx9mm(M2), 4.53g
SKU: THQ8012115339
Availability: InStock

Description
Reviews (0)

Overview

The GEPRC SPEEDX2 1202.5 Motor is a compact brushless motor offered in 10000KV and 15000KV versions for 12S LiPo setups, designed for 23 inch drones. It uses a 9N12P configuration and 9mmx9mm (M2) mounting pattern.

Key Features

KV options: 10000KV or 15000KV
Rated voltage (LiPo): 12S
Configuration: 9N12P
Bearing: 415zz
Mounting patterns: 9mmx9mm (M2)
Lead wires: 28#AWG 60mm
Color: Titanium

Specifications

Motor Specifications (by KV option)

Model	GEPRC SPEEDX2 1202.5-10000KV	GEPRC SPEEDX2 1202.5-15000KV
KV	10000KV	15000KV
Maximum power	84W	128W
Maximum current	11.3A	17.3A
Stator Diameter	12mm
Stator Height	2.5mm
Shaft Diameter	1.5mm
Dimension	16.17mm*9.2mm
Lead Wires	28#AWG 60mm
Rated voltage (LiPo)	12S
Configuration	9N12P
Bearing	415zz
Recommended ESC	12-20A
Mounting Patterns	9mmx9mm(M2)
Color	Titanium
Weight	4.53g (60MM wire length)
Compatible Models	2-3 inch drones

Drawing Dimensions (as shown)

16.17mm (also shown as 16.7mm in one diagram)
9.20mm
4.60mm
1.50mm
1.50 (shaft)
Lead wire length: 60mm
Mounting pattern: 9mm

Thrust Test Datasheet (as shown)

Type	Prop (inch)	Voltages (V)	Throttle (%)	Current (A)	Thrust (G)	Power (W)	Efficiency (G/W)	Temperature (C)
1202.5-10000KV	GF 65R	3.7	50%	1.1	42	4.1	10.319	62C
100%	5.6	110	20.7	5.309
7.4	50%	2.3	81	17.0	4.759	72C
100%	9.2	211	68.1	3.099
HQ T65R	3.7	50%	1.6	42	5.9	7.095	64C
100%	5.6	112	20.7	5.405
7.4	50%	3.3	85	24.4	3.481	82C
100%	11.3	215	83.6	2.571
HQT3x2R	3.7	50%	2.2	58	8.1	7.125	71C
100%	8	128	29.6	4.324
GF3108	3.7	50%	2.2	56	8.1	6.880	70C
100%	7.8	125	28.9	4.331

Type	Prop (inch)	Voltages (V)	Throttle (%)	Current (A)	Thrust (G)	Power (W)	Efficiency (G/W)	Temperature (C)
1202.5-15000KV	GF 65R	3.7	50%	1.6	47	5.9	7.939	63C
100%	9.6	141	35.5	3.970
7.4	50%	2.9	87	21.5	4.054	85C(Hot)
100%	17.3	261	128.0	2.039
HQ T65R	3.7	50%	2.7	59	10.0	5.906	68C
100%	12.8	158	47.4	3.336
HQT3x2R	3.7	50%	2.9	83	10.7	7.735	66C
100%	10.5	175	38.9	4.505
GF3108	3.7	50%	3.1	82	11.5	7.149	65C
100%	10.3	176	38.1	4.618

Whats Included

1 x GEPRC SPEEDX2 1202.5 motor
M2*4mm screws (shown)

Customer service: [email protected] or

Applications

Compatible models: 2-3 inch drones
Use with recommended ESC: 12-20A

Details

SPEEDX2 1202.5 motor offers 10K/15K KV, 84W/128W power, 12mm stator, 1.5mm shaft, 4.53g weight, titanium finish, compatible with 2-3 inch drones, uses 1-2S LiPo, 9N12P config, 9x9mm mount, 415zz bearing.

Performance metrics for 1202.5-10000KV and 1202.5-15000KV motors across props, voltages, and throttle levels include current, thrust, power, efficiency, and temperature under tested conditions.

GEPRC SPEEDX2 1202.5 motors: 10000KV, 15000KV, 9mm, 4.53g, M2 mount
