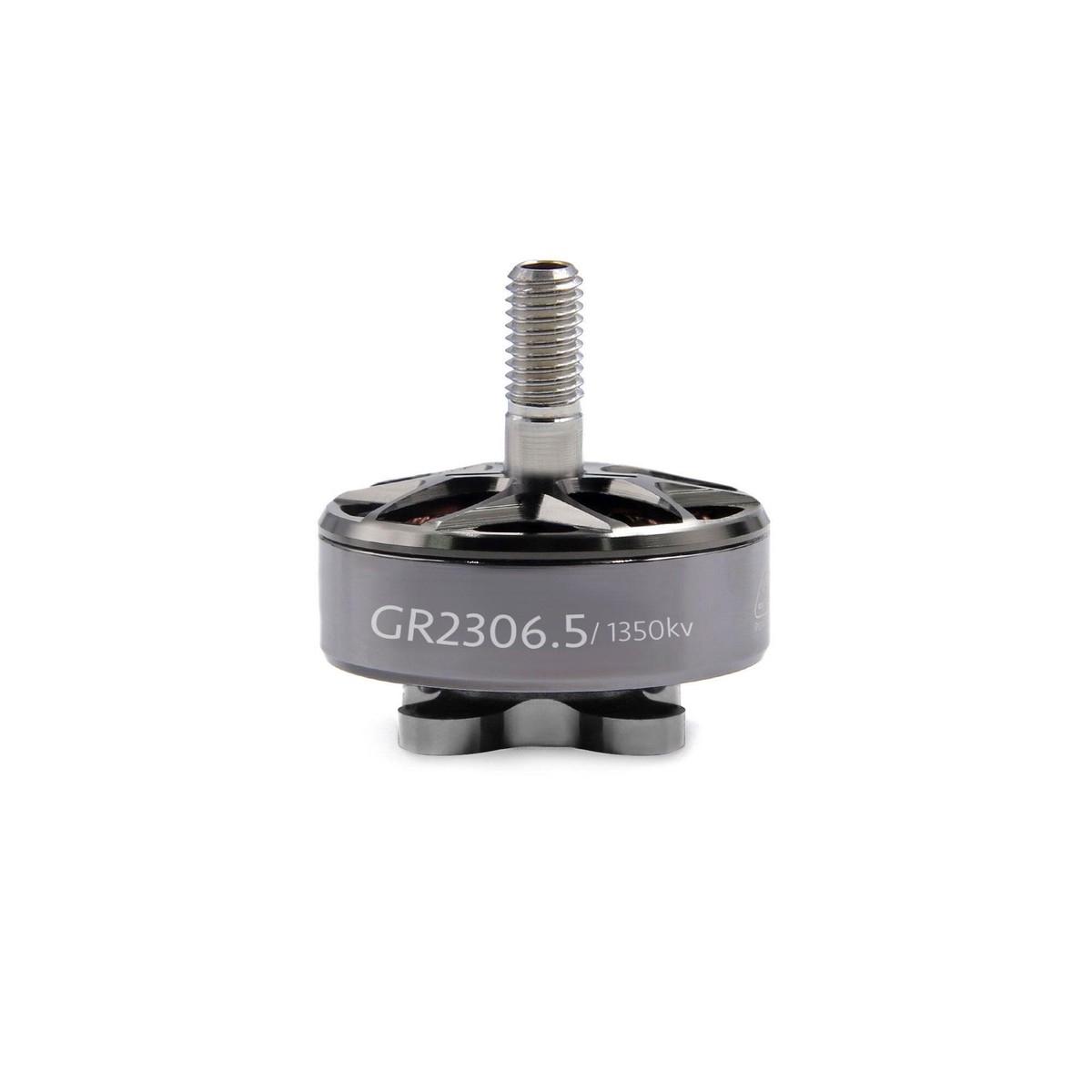

GEPRC GR2306.5 1350KV / 1850KV / 2450KV Motors

GEPRC GR2306.5 1350KV / 1850KV / 2450KV Motors

GEPRC GR2306.5 1350KV / 1850KV / 2450KV Motors

Original price was: $47.08.Current price is: $37.66.
  • SKU:A2380059999
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: drone motors

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: 1350KV, 1850KV, 2450kv, GR2306.5, Motors

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: GEPRC

Specifications:

  • Item name:GR2306.5 Motors

  • KV:1350KV / 1850KV / 2450KV (Optional)

  • Configuration:12N14P

  • Stator Diamter:23mm

  • Stator Length:6.5mm

  • Shaft Diameter:4mm(Hollow)

  • Motor (Dimension(Dia.*Len)): 28.2*29.2mm

  • Idle current(10)@10V(A):1.95

  • of Cells(Lipo):4~5S

  • Max Continuous (Power(W)15S):1000

  • Internal Resistance:38m

  • Max Current(15S):49A

  • Effciency Current:(3-7A)>85%

  • Rotor: N52H arc magnets

  • Bearings:JAPAN ISC

  • Base casing: Al 7075

  • Wire AWG: 20AWG

  • Weight(g):31g (not include wire)

Package included:

  • 1x GEPRC GR2306.5 Motor

  • 1x GEPRC M5 Aluminum Lock Nut

  • 4x M3x7 Button head screws

  • 4x M3x8 Button head screws
