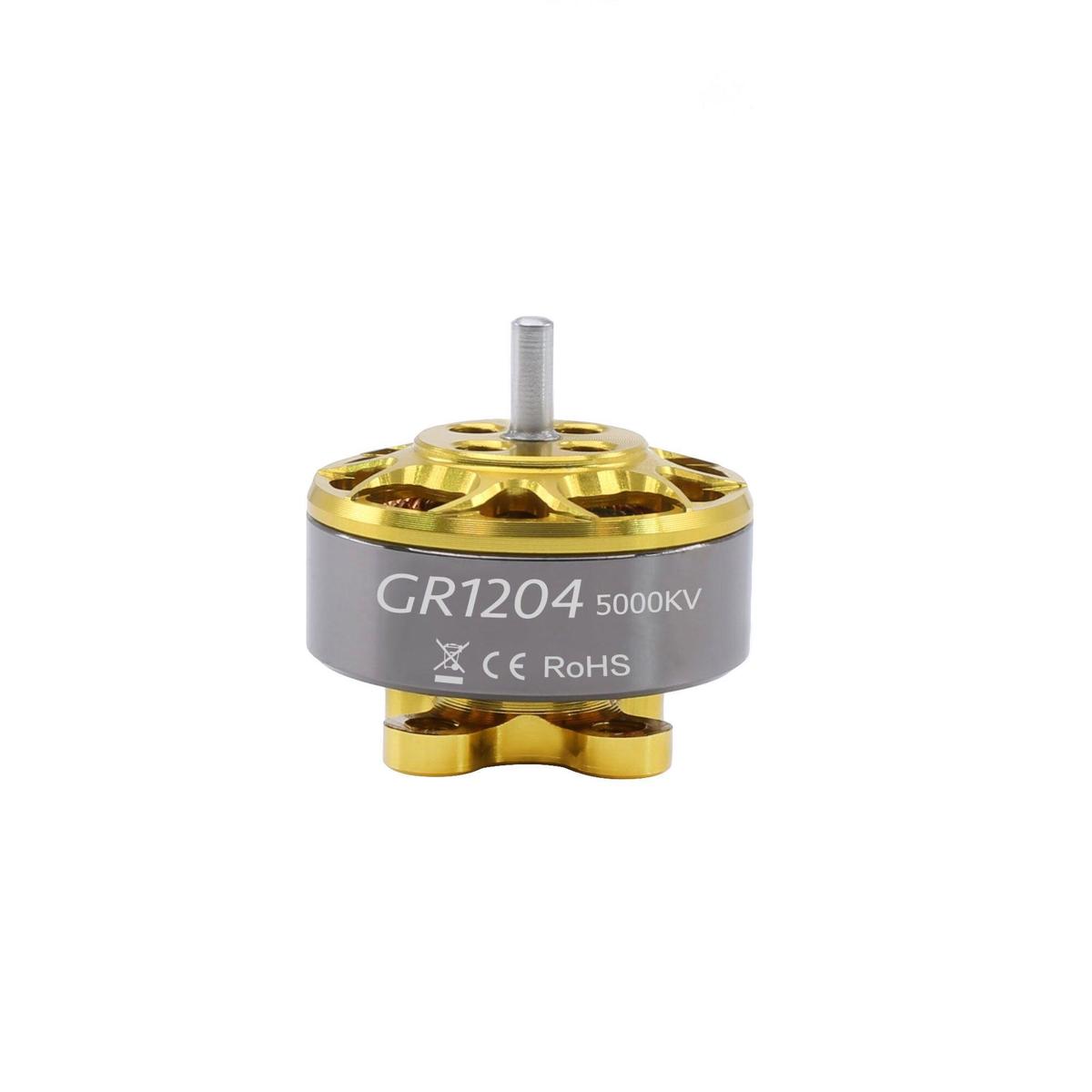

GEPRC GR1204 5000kv FPV Motors Brushless Motor SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: motor

Tool Supplies: Assembly Category

Size: 1 inch

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: GR1204 5000kv Motors

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

Brand Name: GEPRC

Overview:

GR1204 brushless motor, designed for Whoop Drone and Toothpick Drone,High efficiency and smooth.

Specification:

• Model:GR1204

• KV:5000KV

• No. of Cells (Lipo):5000KV @ 3-4S

• Configu-ration:9N12P

• Stator Diamter:12mm

• Stator Length:4mm

• Shaft Diameter:1.5mm

• Motor Dimension(Dia.*Len):15.28*10.9mm

• Rotor:N52H arc magnets

• Base casing :7075-T6

• Weight:3.8g

• Application:compatible with 105mm-110mm RC Drone(Whoop Drone and Toothpick Drone)

Features:

• High efficiency and smooth

• Better for Toothpick or Whoop Drone building

• Dual bearing design and more balance

• Compatible with 40mm-75mm propellers and 1-4S Lipo battery

Package included:

• 1x GEPRC GR1204 5000kv Motors

• 4x M3x4 Button head screws

• 4x M3x5 Button head screws

• 4x M3x7 Button head screws
