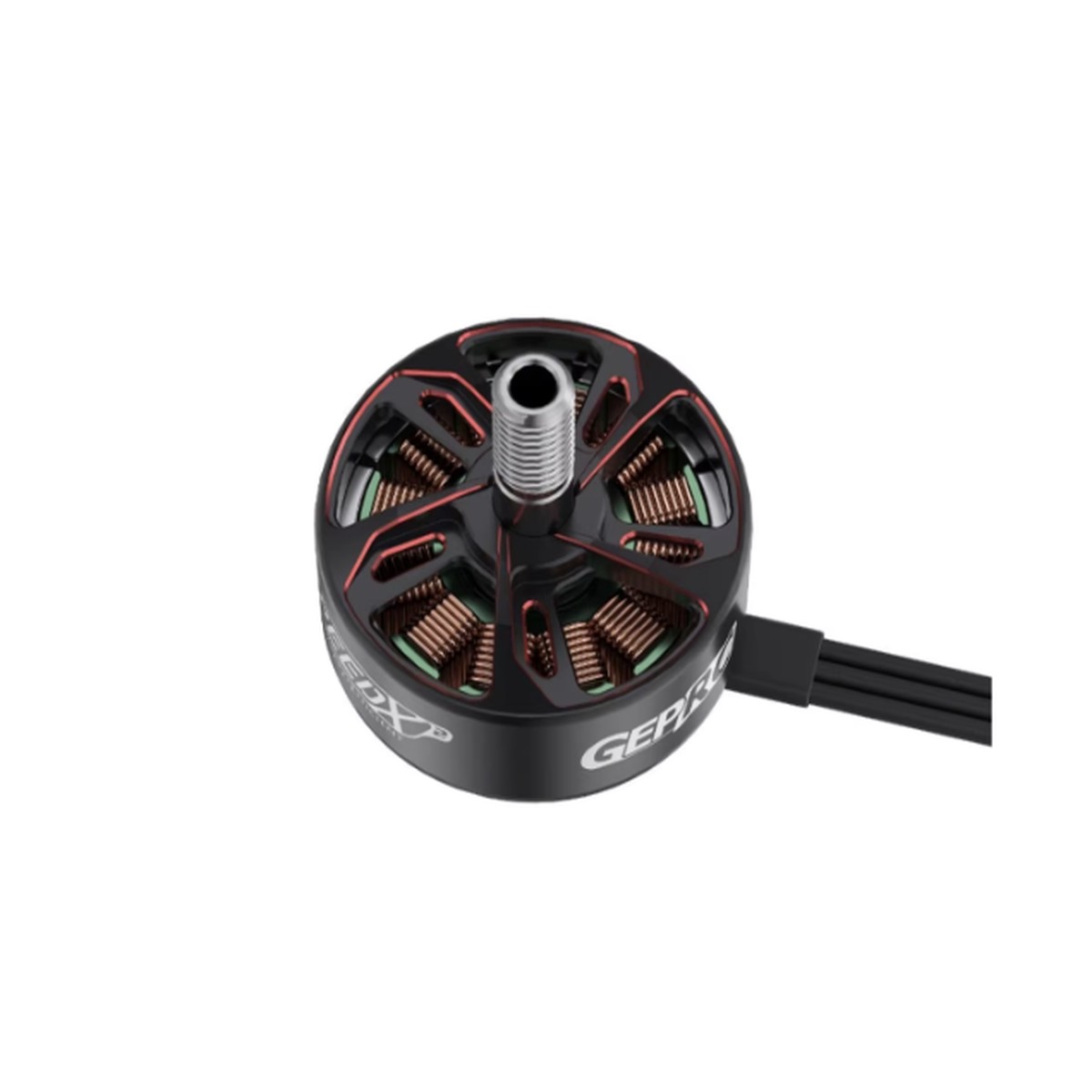

GEPRC GEP-GR2205 2300KV Racer Edition Brushless FPV Motor, 2205 12N14P, 3S-4S, M5 Thread

GEPRC GEP-GR2205 2300KV Racer Edition Brushless FPV Motor, 2205 12N14P, 3S-4S, M5 Thread

GEPRC GEP-GR2205 2300KV Racer Edition Brushless FPV Motor, 2205 12N14P, 3S-4S, M5 Thread

Original price was: $24.50.Current price is: $19.60.
  • SKU:A2380049512
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The GEPRC GEP-GR2205 2300KV Racer Edition is a brushless FPV motor designed around common racing throttle usage (typically 6090%). It uses an N45SH magnet and a durable structural design for racing requirements, while also supporting freestyle flying with responsive power output.

Key Features

  • Throttle efficiency focus: best effect and thrust at around 70% throttle
  • N45SH magnet for torque while helping reduce demagnetization risk during high-speed running
  • 3.5 mm aluminum flange lock nut (lightweight)
  • Japan NMB bearings
  • M3 x 6 mm YFS screw
  • High temperature wire rated to 180C

Specifications

Model GR2205
KV 2300KV
Configuration 12N14P
Input voltage 3S-4S (12.6 – 16.8V)
Max thrust 1135 g (4S 16.8V) with DAL5045X3BN
Weight Approx. 29 g with wires
Wire 20 AWG
Cable length 70 mm
Stator diameter 22 mm
Stator height 5 mm
Shaft diameter 3 mm
Motor diameter 28 mm
Motor height 33 mm
Prop adapter shaft thread M5
Rotation options CCW, CW
Weight (additional information) 0.3 g
Dimensions (additional information) 95 x 70 x 50 mm

For pre-sales compatibility questions (frame fitment, prop selection, 3S/4S setup), contact [email protected] or visit https://rcdrone.top/.

Applications

  • FPV racing multirotors
  • Freestyle FPV builds
