GEPRC EM2812 EM3110 EM3115 900KV Motor SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Motors

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Motor

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: EM2812 900KV

Four-wheel Drive Attributes: Motors

Wheelbase: Screws

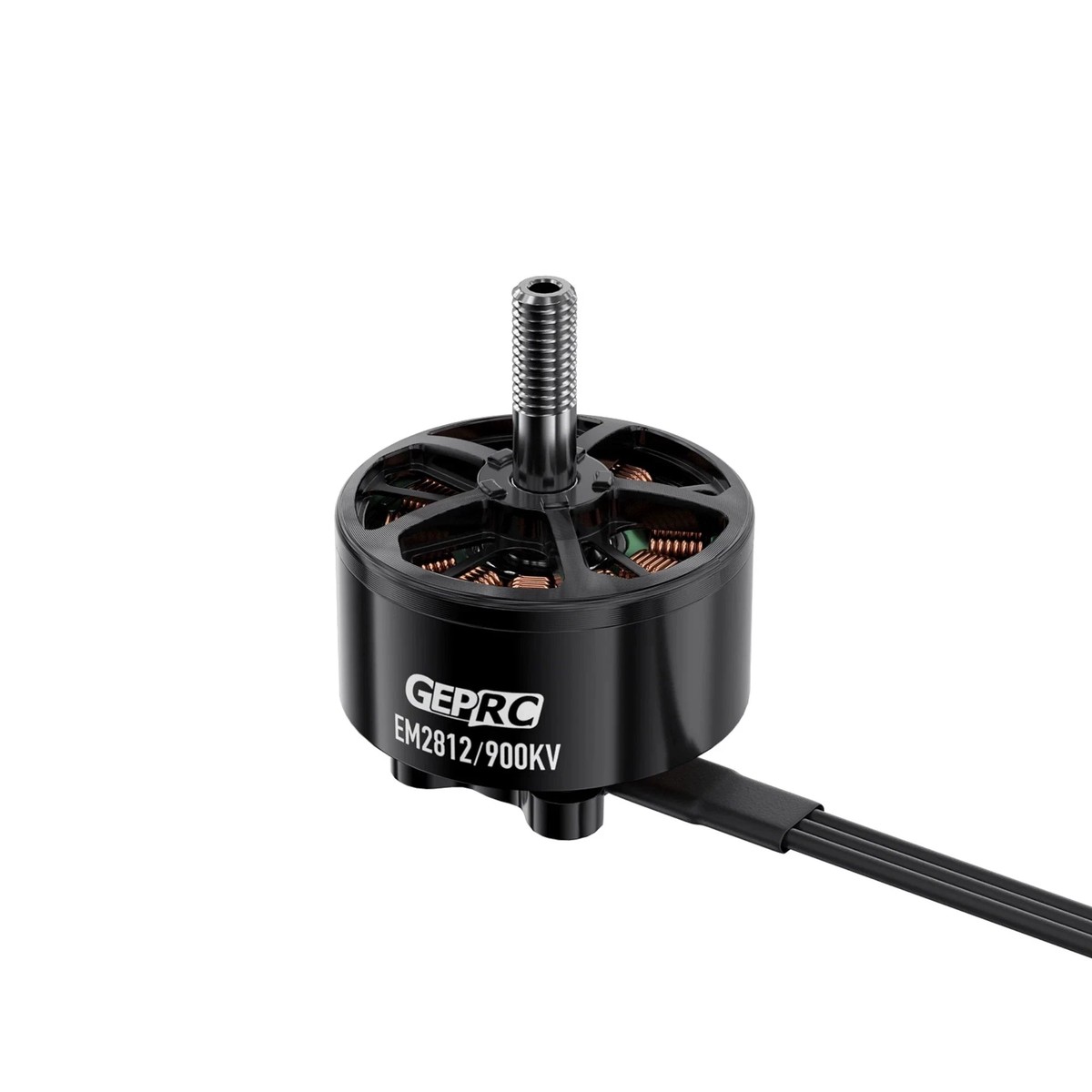

EM2812 900KV Motor——–

Feature

1. New EM series motors,mainly designed for large-size FPV.
2. High-strength M5 steel shaft
3. High torque magnetic circuit design
4. 19mmx19mm base

Specifications

• Model: EM2812 900KV Motor
• Max Watt: 1010W
• Peak current: 46A
• Interphase resistance: 43m
• Propeller: 7-9inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: 33mmx26.1mm
• Shaft Diameter: 5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 260mm/18AWG
• ESC: 50A-60A
• Input Volts: 25.2V(6S LiPo)
• Winding: Single strand copper winding
• Weight: 76g(included wire)
• Applicable models: suitable for 7-9 inch long-distance traversing aircraft

  GEPRC EM2812 Brushless Motor Specifications: KV value: 900, Maximum Power: 10.1W, Peak Current: 46A, Inter-phase Resistance: 43m, Propeller Size: 7-9 inches, Magnet Type: NS2H, Bearing Type: NSK/NMB, Configuration: 12N14P, Dimension: 33mm x 26mm, Shaft Diameter: 5mm, Shaft Protruding Length: 16mm, Mounting Holes: 19mm x 9mm, Lead Wire: 260mm/18AWG, ESC Range: 60A, Input Voltage: 2-4V.

  GEPRC EM3110 900KV Motor

Feature

1. New EM series motors,mainly designed for large-size FPV.
2. High-strength M5 steel shaft
3. High torque magnetic circuit design
4. 19mmx19mm base

Specifications

• Model: EM3110 900KV Motor
• Max Watt: 1480W
• Peak current: 57A
• Interphase resistance: 74m
• Propeller: 8-10inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: 33mmx26.1mm
• Shaft Diameter: 5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 310mm/18AWG
• ESC: 60A-80A
• Input Volts: 25.2V(6S LiPo)
• Winding: Single strand copper winding
• Weight: 87.5g(included wire)
• Applicable models: suitable for 8-10 inch long-distance traversing aircraft

Includes

1 x EM3110 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut

GEPRC EM3115 900KV Motor

Feature

1. New EM series motors,mainly designed for large-size FPV.
2. High-strength M5 steel shaft
3. High torque magnetic circuit design
4. 19mmx19mm base

Specifications

• Model: EM3115 900KV Motor
• Max Watt: 1620W
• Peak current: 65A
• Interphase resistance: 46m
• Propeller: 8-10inch Propeller
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 12N14P
• Dimension: 37.5mmx30mm
• Shaft Diameter: 5mm
• Shaft Protruding Length: 16mm
• Mounting holes: 19mmx19mm
• Lead: 310mm/18AWG
• ESC: 60A-80A
• Input Volts: 25.2V(6S LiPo)
• Winding: Single strand copper winding
• Weight: 115g(included wire)
• Applicable models: suitable for 8-10 inch long-distance traversing aircraft

Includes

1 x EM3115 motor

4 x M3*9 round head screws

1 x M5 anti-slip nut

Specifications GEPRC EM3115 KV 900kV Max Watt 1620w Peak current 65A Interphase resistance 46mQ Propeller 8-10inch Propeller Magnet NS2H Bearing type NSKINMB Configuration 12N14P Dimension 037.Smmx3Omm Shaft Diameter #Smm shaft protruding Length 15.Smm Mounting holes 19mmxl9mm Lead 310mm/18AWG ESC 60A-80A Input Volts 2
