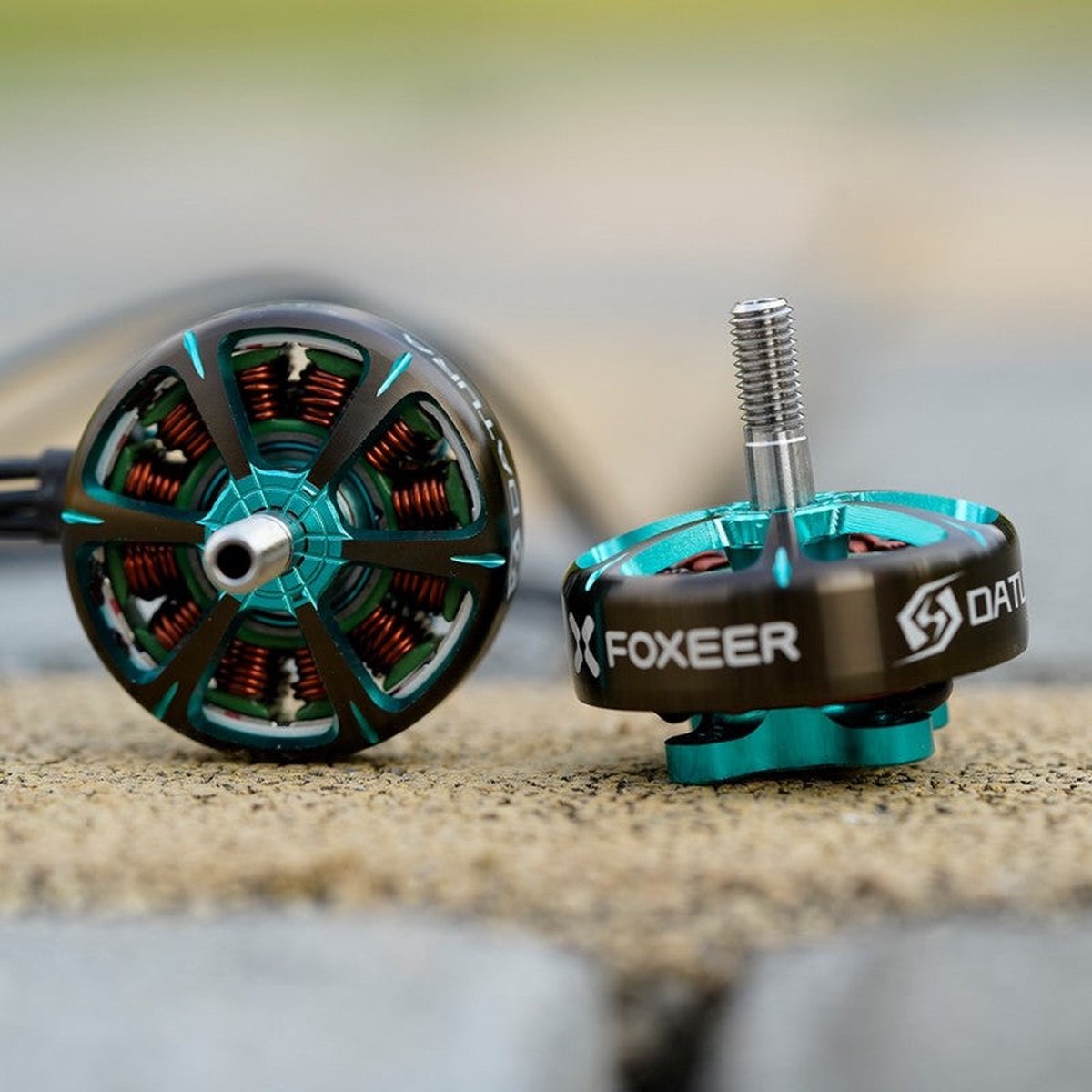

Foxeer Datura 2806.5 1350KV 1750KV FPV Motor

Overview

The Foxeer Datura 2806.5 FPV drone electric motor is designed for high-performance drones, offering two KV options1350KV and 1750KVtailored for both long-range flights and aggressive racing. This motor is built with N52H high-quality magnets, ensuring surging power and rapid response. The semi-hollow titanium shaft effectively reduces weight while maintaining strength, providing stability during intense maneuvers. Additionally, the military-grade 260C radiation-resistant high-temperature winding guarantees durability and performance even under extreme conditions. Weighing only 46 grams, this lightweight motor offers a balance of power and efficiency for any FPV enthusiast.

Key Features

1. Two KV Options:
   • 1350KV: Optimized for efficient and long-range flights, ideal for freestyle and cruising setups.
   • 1750KV: Designed for high-thrust applications, perfect for aggressive racing with faster response and higher power output.
2. N52H High-Quality Magnets: Provides surging power and precise control during high-speed maneuvers.
3. Ultra-Light Semi-Hollow Titanium Shaft: The lightweight titanium shaft reduces the motors overall mass while maintaining its structural integrity, enhancing agility and flight performance.
4. Military-Grade 260C High-Temperature Winding: Ensures reliable performance and durability in extreme heat, perfect for intense FPV racing.
5. Lightweight and Powerful: At only 46g, the Datura 2806.5 motor offers an excellent power-to-weight ratio, enhancing the drones flight characteristics.

Specifications (1350KV)

Specifications (1750KV)

Foxyer Datura 2806.5 1350KV/1750KV FPV Motor The ultra-light semi-hollow titanium shaft effectively reduces weight while ensuring strength and motor performance High-quality magnet for surging power Military Grade 2609C Radiation Resistant High Temperature Winding and high-efficiency stator with Single crystal oxygen-free copper single wrap winding Technical Datas KV 1350/1750 Configuration 12N14P Stator Diameter 28mm Stator Length 6.5mm Shaft Diameter Hollow 4mm Motor Dimension Dia*Len 34.8mm Weight 3cm Wire 10g Idle Current @10V A 1027 Max Continuous Power W 1315 Internal Resistance m 60 Max Current 8A Efficiency >85% Prop Votages Throttle Load Currency Efficiency Temperature Range in Power W chart
