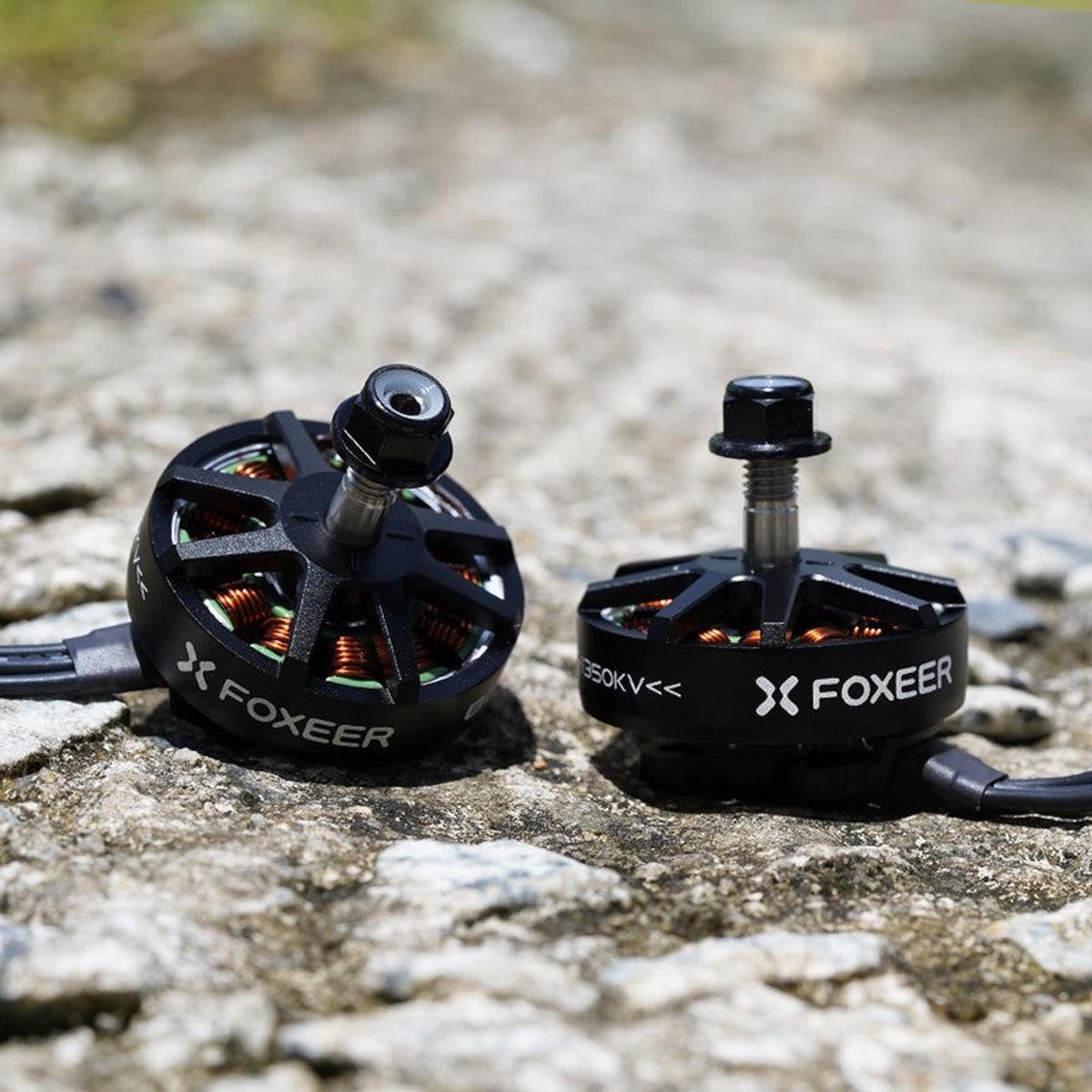

Foxeer Black Hornet 2806.5 1350KV FPV Motor

Overview

The Foxeer Black Hornet 2806.5 1350KV drone brushless motor is designed to deliver high power and exceptional efficiency for FPV drones. With its 1350KV rating, 28mm stator diameter, and 6.5mm stator length, this motor provides a balance between thrust and flight time, making it ideal for high-performance FPV racing and freestyle drones. Weighing just 46 grams, it features a 4mm hollow titanium shaft for durability and reduced weight. This motor is compatible with 4-6S LiPo batteries and is built to endure demanding conditions while maintaining efficiency with its military-grade 260C high-temperature resistance and N52H high-quality magnets.

Key Features

1. 1350KV Motor: Delivers strong power output optimized for efficiency, perfect for high-performance FPV racing and freestyle drones.
2. N52H Arc Magnets: High-quality magnets ensure powerful, consistent thrust and faster response times.
3. Military-Grade 260C High-Temperature Winding: The motor uses single crystal oxygen-free copper windings, designed to operate efficiently even under high temperatures, ensuring durability and performance.
4. Ultra-light Hollow Titanium Shaft: Reduces overall weight while maintaining high strength, providing stable flight and improved performance.

Specifications

Foxeer Black Hornet 2806.5 1350KV FPV Motor: Ultra-light EMI-hollow titanium shaft reduces weight while ensuring strength. NSZH high-quality magnet and single crystal oxygen-free copper winding for high efficiency. Technical data: KV 1350, configuration 12N14P, stator diameter 28mm, length 6mm, shaft diameter 4mm (hollow). Motor dimensions: 34.3mm x 18.8mm, weight 46g. Idle current 1.2A @ 10V, number of cells (Lipo) 4-6S. Maximum continuous power 1027W, internal resistance 60mOhms, maximum current 42.8A. Efficiency: 85% at throttle load 5S.
