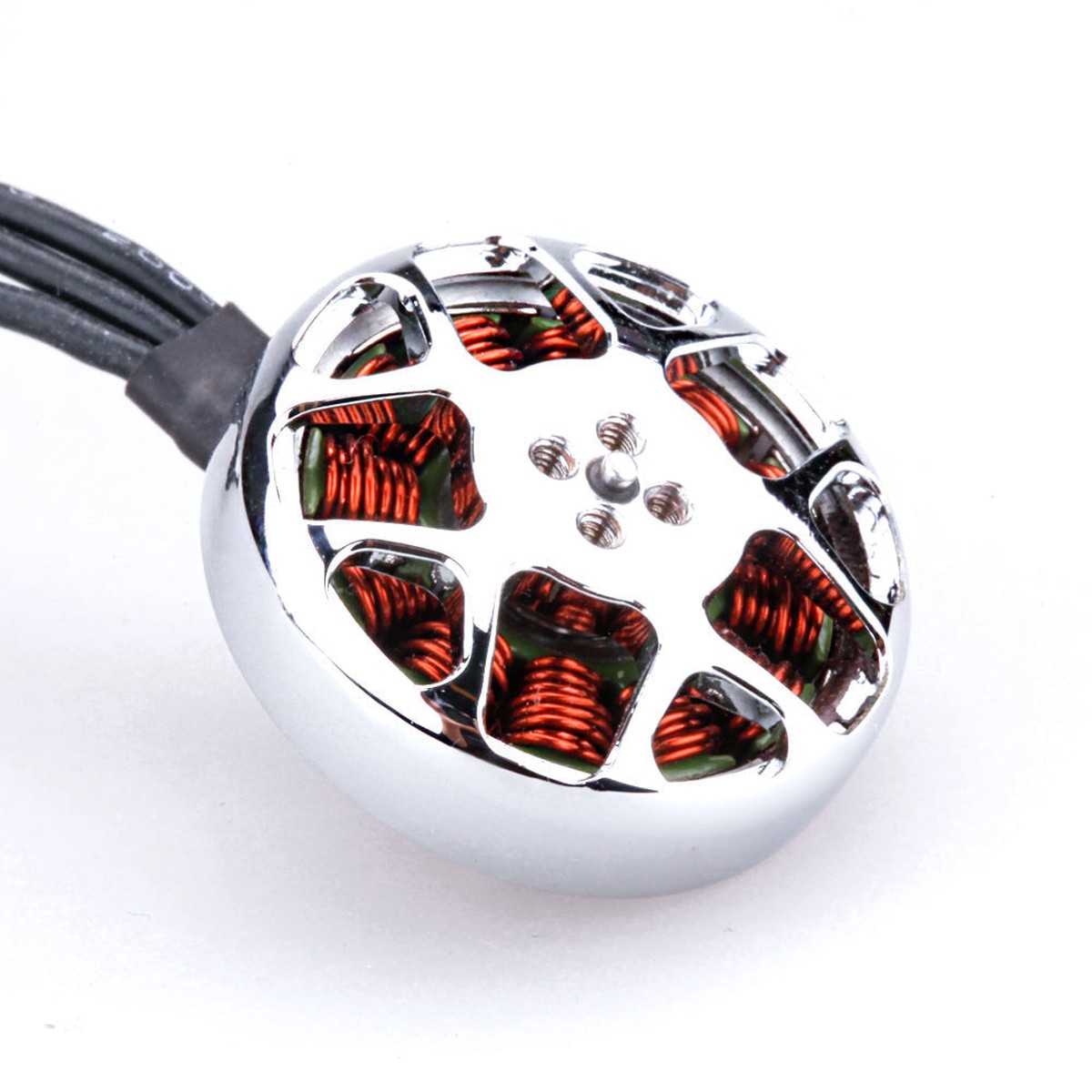

Flywoo NIN 2303.5 Ultralight FPV Motor (Silver) 1750KV 5-6S / 3000KV 3-4S Unibell

Flywoo NIN 2303.5 Ultralight FPV Motor (Silver) 1750KV 5-6S / 3000KV 3-4S Unibell

Flywoo NIN 2303.5 Ultralight FPV Motor (Silver) 1750KV 5-6S / 3000KV 3-4S Unibell

Original price was: $17.99.Current price is: $14.39.
  • SKU:A2380048134
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The Flywoo NIN 2303.5 Ultralight is an FPV motor designed for FPV freestyle racing, long range, freestyle, and racing builds including 3″ cinewhoop, 4″-5″ toothpick, and 6-7″ long range setups. It uses a high grade unibell design with an electroplating process, curved N52H magnet, and Japan NSK bearing.

Key Features

  • Unibell design
  • Electroplating process finish
  • Curved N52H magnet
  • Japan NSK bearing
  • Mounting holes: 4 x M2

Specifications

Parameter 1750KV 3000KV
KV 1750KV 3000KV
Configuration 12N14P 12N14P
Stator Diameter 23mm 23mm
Stator Length 3.5mm 3.5mm
Shaft Diameter 3mm(in) 1.5mm(out) 3mm(in) 1.5mm(out)
Motor Dimension (Dia.*Len) 29.1*13.5mm 29.1*13.5mm
Weight 21.5g (3cm Wire) 21.5g (3cm Wire)
Idle current @10V (A) 0.58 1.25
No. of Cells (LiPo) 5~6S 3~4S
Max Continuous Power (W) (3S) 559 656
Internal Resistance 173m 71m
Max Current (3S) 23.3A 41A
Max Efficiency Current (1.5-3A) >85% (2.5-5A) >85%

Thrust Test Data

1750KV (Voltages: 20V / 24V)

Prop (inch) Voltage (V) Throttle (%) Load Current (A) Pull (g) Power (W) Efficiency (g/W) Temperature (full throttle load 3 s)
GF D90 20 50% 1.7 168 34.0 4.941 55C
GF D90 20 100% 8.7 508 174.0 2.920 55C
GF D90 24 50% 2.5 237 60.0 3.950 60C
GF D90 24 100% 11.4 670 273.6 2.449 60C
HQ T5*3R 20 50% 2.1 242 42.0 5.762 59C
HQ T5*3R 20 100% 11.3 768 226.0 3.398 59C
HQ T5*3R 24 50% 3 336 72.0 4.667 71C
HQ T5*3R 24 100% 15 1017 360.0 2.825 71C
GF5126 20 50% 2.4 264 48.0 5.500 62C
GF5126 20 100% 12.6 793 252.0 3.147 62C
GF5126 24 50% 3.3 368 79.2 4.646 75C
GF5126 24 100% 16.2 1033 388.8 2.657 75C
GF5125R 20 50% 2.4 266 48.0 5.542 62C
GF5125R 20 100% 12.6 812 252.0 3.222 62C
GF5125R 24 50% 3.1 364 74.4 4.892 76C
GF5125R 24 100% 16.5 1070 396.0 2.702 76C
GF5130 20 50% 3 308 60.0 5.133 69C
GF5130 20 100% 14.7 849 294.0 2.888 69C
GF5130 24 50% 4.1 414 98.4 4.207 79C
GF5130 24 100% 18.6 1078 446.4 2.415 79C
GF6026 20 50% 3.3 377 66.0 5.712 75C
GF6026 20 100% 16.2 1014 324.0 3.130 75C
GF6026 24 50% 4.4 511 105.6 4.839 80C
GF6026 24 100% 21 1299 504.0 2.577 80C
HQ T6x2.5×3 20 50% 3.6 391 72.0 5.431 78C
HQ T6x2.5×3 20 100% 18.2 1098 364.0 3.016 78C
HQ T6x2.5×3 24 50% 5 548 120.0 4.567 82C (HOT)
HQ T6x2.5×3 24 100% 23.3 1355 559.2 2.423 82C (HOT)

3000KV (Voltages: 12V / 16V)

Prop (inch) Voltage (V) Throttle (%) Load Current (A) Pull (g) Power (W) Efficiency (g/W) Temperature (full throttle load 3 s)
GF D90 12 50% 3.4 176 40.8 4.314 56C
GF D90 12 100% 15.2 504 182.4 2.763 56C
GF D90 16 50% 5.3 285 84.8 3.361 63C
GF D90 16 100% 22.5 770 360.0 2.139 63C
HQ T5*3R 12 50% 4 251 48.0 5.229 59C
HQ T5*3R 12 100% 19.2 738 230.4 3.203 59C
HQ T5*3R 16 50% 6.4 387 102.4 3.779 72C
HQ T5*3R 16 100% 29.3 1122 468.8 2.393 72C
GF5126 12 50% 4.4 271 52.8 5.133 62C
GF5126 12 100% 20.9 757 250.8 3.018 62C
GF5126 16 50% 6.9 433 110.4 3.922 74C
GF5126 16 100% 31.3 1143 500.8 2.282 74C
GF5125R 12 50% 4.4 271 52.8 5.133 62C
GF5125R 12 100% 21 769 252.0 3.052 62C
GF5125R 16 50% 6.6 425 105.6 4.025 75C
GF5125R 16 100% 32.2 1178 515.2 2.286 75C
GF5130 12 50% 5.3 297 63.6 4.670 66C
GF5130 12 100% 24.2 794 290.4 2.734 66C
GF5130 16 50% 8.7 485 139.2 3.484 78C
GF5130 16 100% 35.9 1151 574.4 2.004 78C
GF6026 12 50% 5.9 370 70.8 5.226 69C
GF6026 12 100% 26.7 943 320.4 2.943 69C
GF6026 16 50% 9 580 144.0 4.028 83C (HOT)
GF6026 16 100% 39.2 1336 627.2 2.130 83C (HOT)
HQ T6x2.5×3 12 50% 6.3 369 75.6 4.881 73C
HQ T6x2.5×3 12 100% 29.5 983 354.0 2.777 73C
HQ T6x2.5×3 16 50% 9.9 630 158.4 3.977 85C (HOT)
HQ T6x2.5×3 16 100% 41 1389 656.0 2.117 85C (HOT)

For motor selection and compatibility questions, contact https://rcdrone.top/ or email [email protected].

Details

The NIN 2303.5 motor uses a 4x M2 mounting pattern with a compact, low-profile body for straightforward frame fitment.

Test data lists pull, power, efficiency, and motor temperature at 20V and 24V across multiple prop options and throttle levels.

Thrust test data lists pull, current draw, power and efficiency at 12V and 16V across several prop options (GF and HQ).
