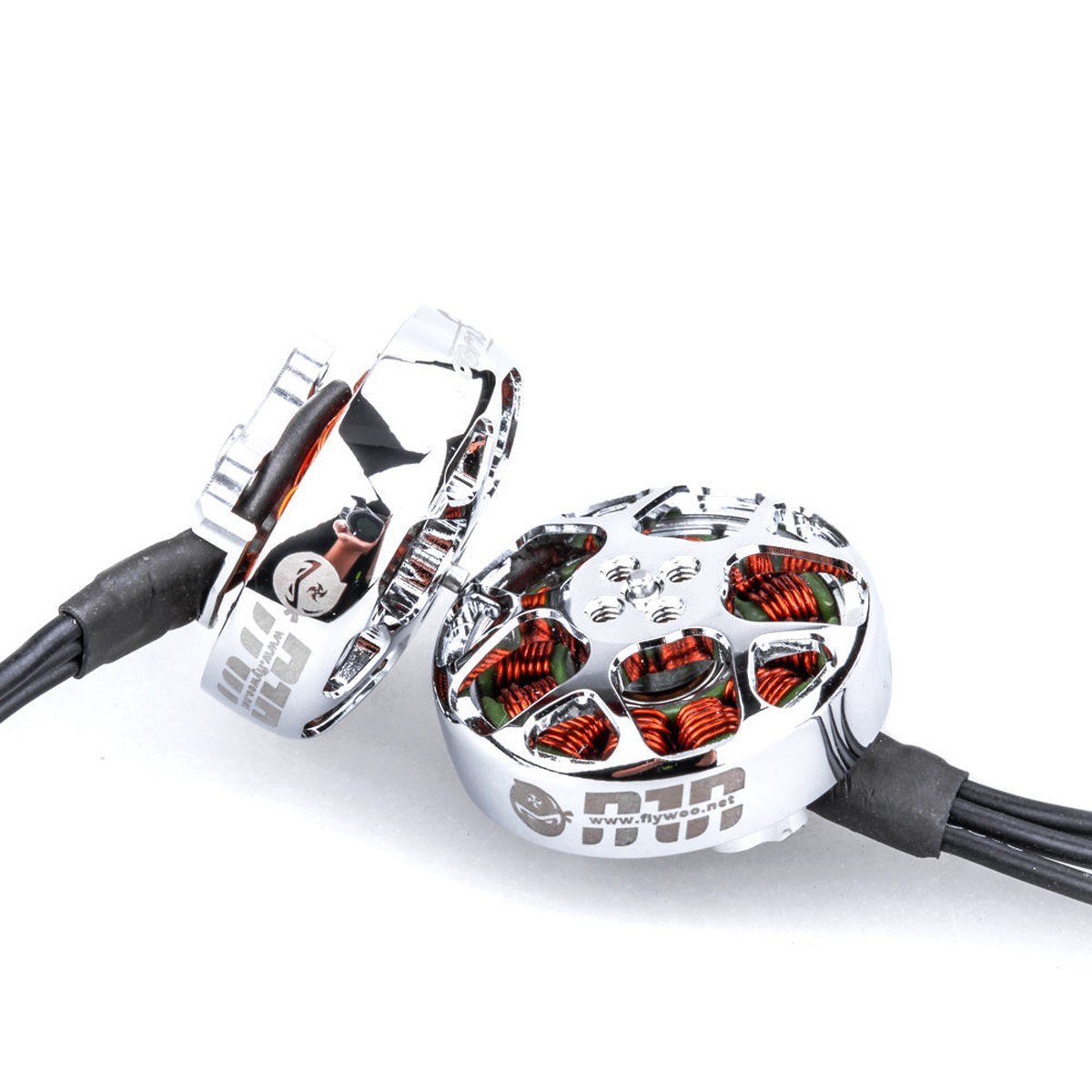

Flywoo NIN 2104 Ultralight FPV Motor (Silver) 1800KV / 3000KV Unibell N52H NSK Bearing

Flywoo NIN 2104 Ultralight FPV Motor (Silver) 1800KV / 3000KV Unibell N52H NSK Bearing

Flywoo NIN 2104 Ultralight FPV Motor (Silver) 1800KV / 3000KV Unibell N52H NSK Bearing

Original price was: $17.99.Current price is: $14.39.
  • SKU:ELAC22173210055
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

Flywoo NIN 2104 (Silver) is an ultralight FPV motor designed for FPV freestyle and racing builds. It uses a high-grade unibell design with an electroplated finish, curved N52H magnets, and Japan NSK bearings.

Recommended uses include long range, freestyle, and racing builds such as 3-inch cinewhoop, 45-inch toothpick, and 67-inch long range frames.

Key Features

  • High-grade unibell design
  • Electroplating process finish
  • Curved N52H magnets
  • Japan NSK bearing

Specifications

NIN 2104 1800KV

KV 1800KV
Configuration 12N14P
Stator diameter 21mm
Stator length 4mm
Shaft diameter 3mm(in) 1.5mm(out)
Motor dimension (Dia. x Len) 25.57 x 13.5mm
Weight 16g (3cm wire)
Idle current (10) @10V 0.5A
No. of cells (LiPo) 4~6S
Max continuous power (3S) 533W
Internal resistance 210 mOhm
Max current (3S) 22.2A
Max efficiency current (0.6-2A)>86%

NIN 2104 3000KV

KV 3000KV
Configuration 12N14P
Stator diameter 21mm
Stator length 04mm
Shaft diameter 3mm(in) 1.5mm(out)
Motor dimension (Dia. x Len) 25.57 x 13.5mm
Weight 16g (3cm wire)
Idle current (10) @10V 0.9A
No. of cells (LiPo) 3~4S
Max continuous power (3S) 581W
Internal resistance 110 mOhm
Max current (3S) 36.3A
Max efficiency current (2.5-5A)>85%

Drawing Labels (visible on dimension diagram)

  • 13.50
  • 1.20
  • 25.57
  • 1.50
  • 12
  • 5
  • 4 x M2

Performance Data (from provided tables)

Table A

Prop Voltages (V) Throttle (%) Load Curreny (A) Pull (g) Power (W) Efficiency (g/W) Temperature (in full throttle load 3’s)
D76 21 50% 2.2 175 46.2 3.788 –
21 100% 10.3 495 216.3 2.288 48C
24 50% 2.8 225 67.2 3.348 –
24 100% 12.4 608 297.6 2.043 53C
D90 21 50% 1.7 174 35.7 4.874 –
21 100% 10.6 589 222.6 2.646 49C
24 50% 2.8 268 67.2 3.988 –
24 100% 13 730 312.0 2.340 54C
GF5126*2 21 50% 3 330 63.0 5.238 –
21 100% 15.2 904 319.2 2.832 57C
24 50% 3.7 413 88.8 4.651 –
24 100% 18.6 1099 446.4 2.462 63C
GF5125*3 21 50% 3.1 320 63.0 5.079 –
21 100% 15.3 921 321.3 2.866 57C
24 50% 4 411 96.0 4.281 –
24 100% 18.6 1101 446.4 2.466 63C
GF5130*3 21 50% 3.6 353 75.6 4.669 –
21 100% 17.6 944 369.6 2.554 62C
24 50% 4.7 434 112.8 3.848 –
24 100% 22.2 1084 532.8 2.035 79C
GF6026 16 50% 2.6 269 41.6 6.466 –
16 100% 13.3 750 212.8 3.524 54C
HQT6*2.5*3 16 50% 3 303 48.0 6.313 –
16 100% 14.7 798 235.2 3.393 56C

Table B

Prop Voltages (V) Throttle (%) Load Curreny (A) Pull (g) Power (W) Efficiency (g/W) Temperature (in full throttle load 3’s)
D76 12 50% 3.3 153 39.6 3.864 –
12 100% 15.5 428 186.0 2.301 50C
16 50% 5.3 242 84.8 2.854 –
16 100% 23 660 368.0 1.793 55C
D90 12 50% 3.4 183 40.8 4.485 –
12 100% 15.9 519 190.8 2.720 51C
16 50% 5.4 295 86.4 3.414 –
16 100% 24.2 794 387.2 2.051 66C
GF5126*2 12 50% 4.7 287 56.4 5.089 –
12 100% 22.5 766 270.0 2.837 63C
16 50% 8.1 461 129.6 3.557 –
16 100% 32.2 1110 515.2 2.155 75C
GF5125*3 12 50% 5 293 60.0 4.883 –
12 100% 22.5 785 270.0 2.907 63C
16 50% 7.6 449 121.6 3.692 –
16 100% 33.7 1142 539.2 2.118 77C
GF5130*3 12 50% 5.7 310 68.4 4.532 –
12 100% 25.2 789 302.4 2.609 67C
16 50% 9.1 465 145.6 3.194 –
16 100% 36.3 1100 580.8 1.894 81C (HOT)
GF6026 12 50% 6.7 387 80.4 4.813 –
12 100% 28.2 919 338.4 2.716 71C

For product selection help or after-sales support, contact support@ or visit https:///.

Details

Flywoo NIN 2104 motor dimensions include an approx. 23.57 mm outer diameter with a 4 M2 mounting pattern for straightforward frame fitment.

Flywoo NIN 2104 motor test results list thrust (g), current draw (A), power (W), efficiency (g/W), and temperature across multiple props at 1624V.

Bench test results cover current draw, thrust, power, efficiency, and full-throttle temperature with several prop sizes at 12V and 16V.
