Flashhobby H450 Helicopter Motor 1850KV/3800KV, 3.5mm Shaft, 29.438.5mm, 2-6S/2-4S

Overview

The Flashhobby H450 Helicopter Motor is a brushless motor offered in two KV options (1850KV and 3800KV). It features a 3.5mm shaft, 9N/6P configuration, and a compact motor body size of 29.4 x 38.5mm, suitable for helicopter power systems across the specified LiPo ranges.

Key Features

• Two KV options: 1850KV (1850RPM/V) or 3800KV (3800RPM/V)
• 3.5mm shaft diameter
• 9N/6P configuration
• 3.5mm male connectors
• Specified motor timing: 5deg; drive frequency: 8KHz

Specifications

General

1850KV Version

3800KV Version

Motor Drawing Dimensions

For compatibility questions (ESC, LiPo, connectors) or order support, contact support@ or visit https:///.

Whats Included

• Flashhobby H450 motor
• Mounting screws (set shown)
• Heat-shrink tubes (red/black/blue, set shown)
• 3x bullet-style connectors (set shown)

Applications

• RC helicopter power systems (select 1850KV or 3800KV based on required LiPo cell count and setup)

Details

The Flashhobby H450 helicopter motor uses a 28.4mm diameter body, 38.5mm overall length, and a 3.5mm output shaft for fit checks and mounting alignment.

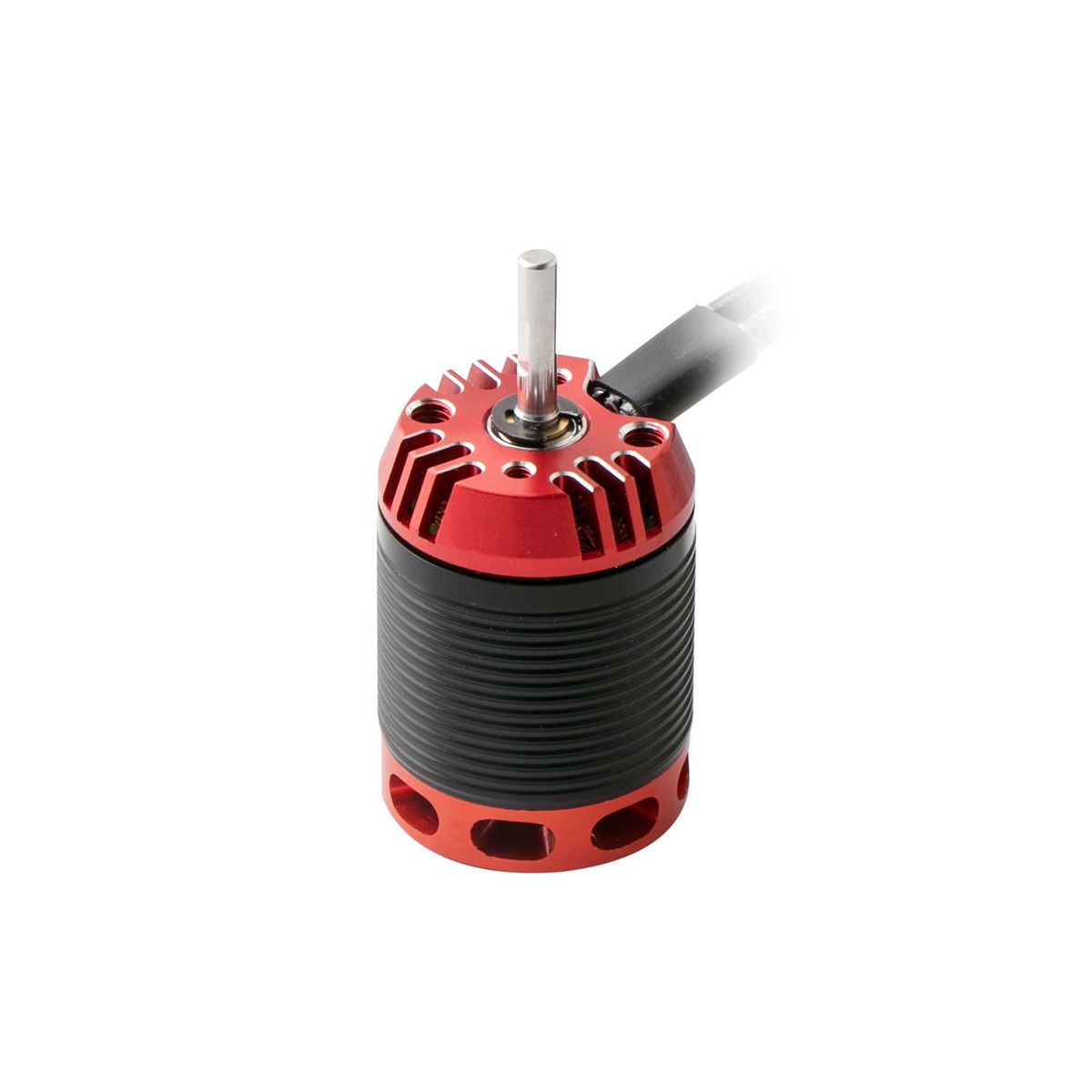

The Flashhobby H450 3800KV motor features a ribbed cylindrical housing with a red end cap and a protruding output shaft for helicopter builds.

The Flashhobby H450 helicopter motor comes with mounting screws, bullet connectors, and heat-shrink tubing for clean wiring.

A basic brushless setup connects the H450 motor to an ESC via three phase wires and uses a PWM lead to the receiver, with the battery powering the system.
