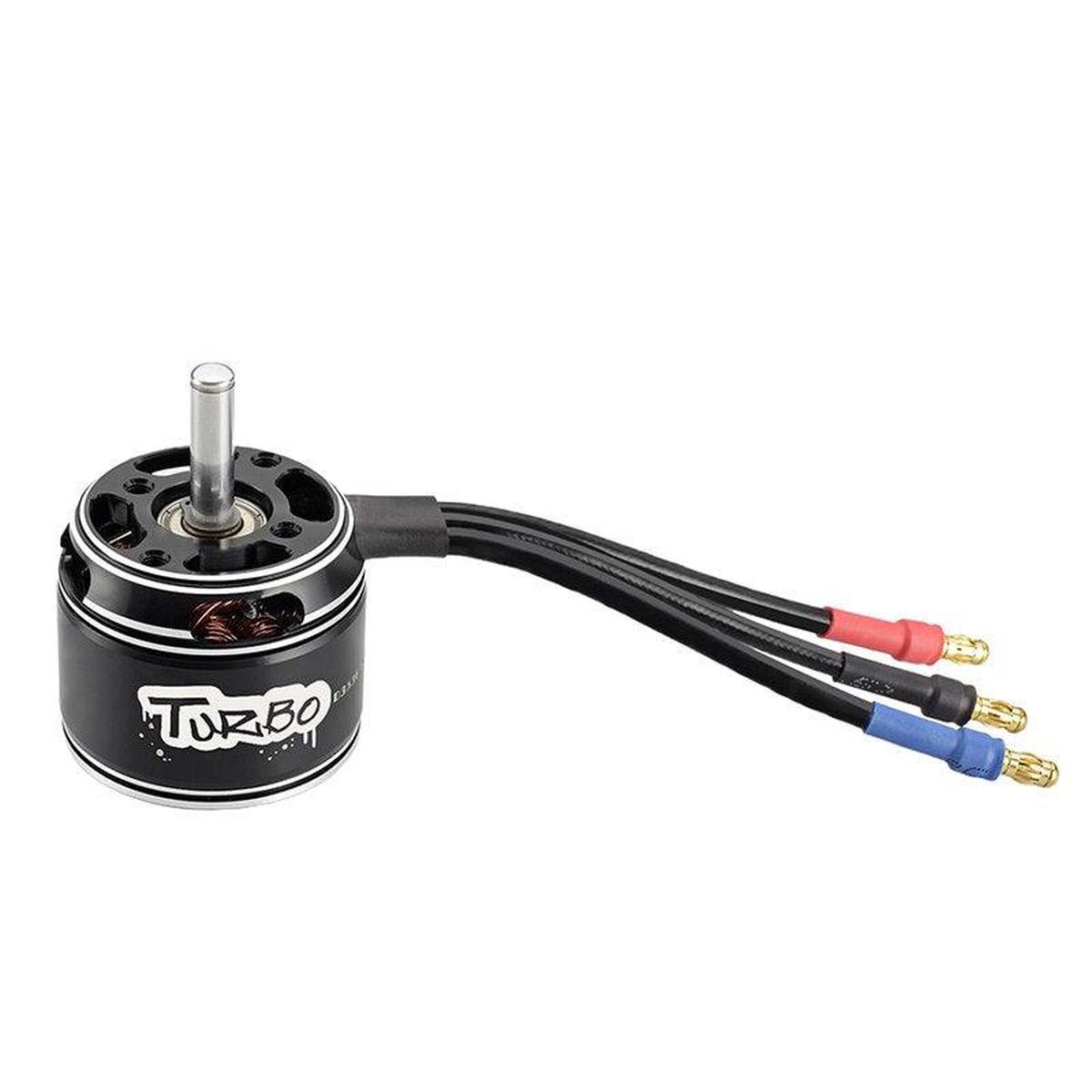

FLASHHOBBY D3536EVO 3536 (2814) 910KV 1000KV 1250KV 1450kv RC Brushless Mot SPECIFICATIONS

Name: FLASHHOBBY D3536EVO 3536 (2814) 910KV 1000KV 1250KV 1450kv RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
SKU: THQ8012114628
Availability: InStock

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Grinded

Technical parameters: Value 2

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: D3536

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
Weight: 105.8g(Including wires)
Motor Size: 35.3 x36mm
Shaft Size: 5.0*53.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 910KV, 1000KV,1250KV,1450KV or customed KV
Working TemperatureRange:-0~+80
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor

KV: 910KV
Max watts: 347.7W
Max Current: 21.45A
No Load current: 1.2A/10V
Resistance: 66.7m
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 1000KV
Max watts: 300.1W
Max Current: 24.44A
No Load current: 1.58A/10V
Resistance: 46.5m
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1250KV
Max watts: 919.3W
Max Current: 57.31A
No Load current: 2.15A/10V
Resistance: 30.2m
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1450KV
Max watts: 609.2W
Max Current: 51.45A
No Load current: 2.77A/10V
Resistance: 26.8m
Battery: 3-4S Lipo
Suggested Prop: 11 inch prop
