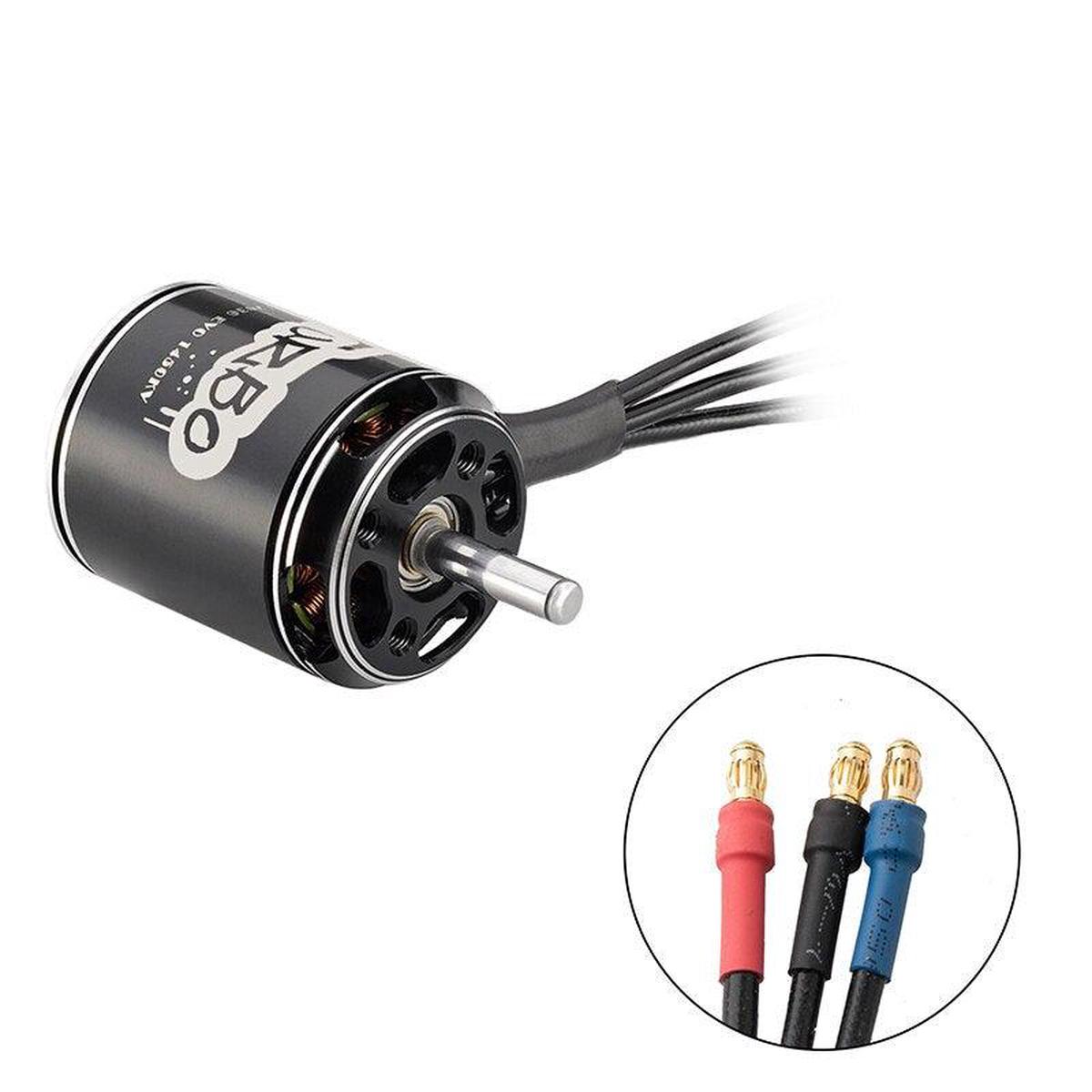

FLASHHOBBY D2836EVO 2836 (2217) 750KV 850KV 1100KV 1450KV RC Brushless Motor SPECIFICATIONS

Name: FLASHHOBBY D2836EVO 2836 (2217) 750KV 850KV 1100KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
SKU: THQ8012114656
Availability: InStock

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Grinded

Technical parameters: Value 4

Remote Control Peripherals/Devices: Motor

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: D2836

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

Weight: 88.6g(Including wires)
Motor Size: 28 x36mm
Shaft Size: 4.0*51.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
KV Value: 750KV, 850KV,1100KV,1450KV or customed KV
Working TemperatureRange:-0~+80
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US

Motor Type: Outrunner Brushless Motor,Three-phase Motor

KV: 750KV
Max watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistance: 124m
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 850KV
Max watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistance: 97.4m
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop

KV: 1100KV
Max watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistance: 57.9m
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop

KV: 1450KV
Max watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistance: 33.5m
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
