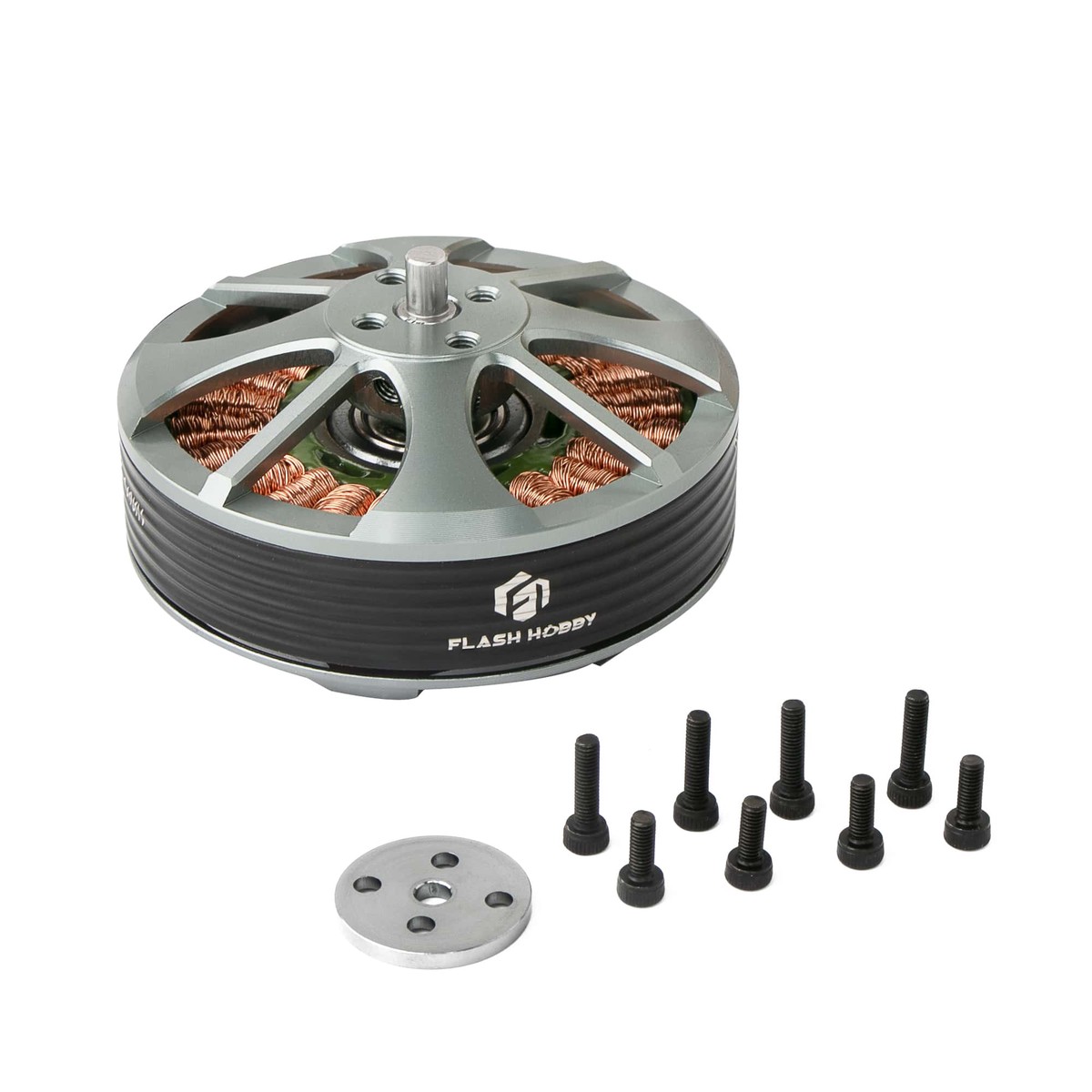

Flashhobby 5208 Brushless DC Motor 330KV/400KV, 60x28mm, 197g, 24N22P for 15-18in Props

Overview

The Flashhobby 5208 Brushless DC Motor is designed for prop-driven power systems and is specified for 15~18 inch prop applications. It features 48SH magnets (22P), an imported NMB/NSK bearing design (24N), and a screw-lock shaft structure.

Key Features

• 48SH magnets (22P)
• NMB/NSK bearing (24N)
• Screw lock shaft
• Precision balanced rotor test
• CNC 6061-T6 aluminum bell
• High temperature resistant copper wire winding

Specifications

Mechanical Dimensions (mm)

• Overall diameter: 60
• Body height: 28
• Feature dimensions shown: 5.8, 3
• Diameters shown: 25, 23.5, 22, 17.8, 15, 13.6, 11.3, 6, 5.5, 4, 3.2, 3.1
• Hole/thread callouts shown: 4-M3, M6
• Additional dimensions shown: 26.5, 21.5, 19.6, 15, 12, 3.3, 2.3, 2.2
• Tolerance shown: 6 (+0.03/+0.00)
• Thread length shown: 15

Wiring Reference

• Connections shown: Brushless ESC, PWM input signal cable, receiver, battery, motor
• Motor phase wires labeled: A, B, C

Applications

• 15~18 inch prop applications

For compatibility questions (KV selection, prop matching, mounting fitment), contact https:/// or email support@.

Details

The Flashhobby 5208 brushless motor features 48SH 22P magnets, an NMB/NSK bearing, and a screw-lock shaft design.

The Flashhobby 5208 brushless DC motor uses a 4M3 mounting pattern and a compact 60mm outer diameter for straightforward fitting.

Brushless ESC wiring connects the battery and receiver PWM signal lead to the motor via three phase wires labeled A, B, and C.
