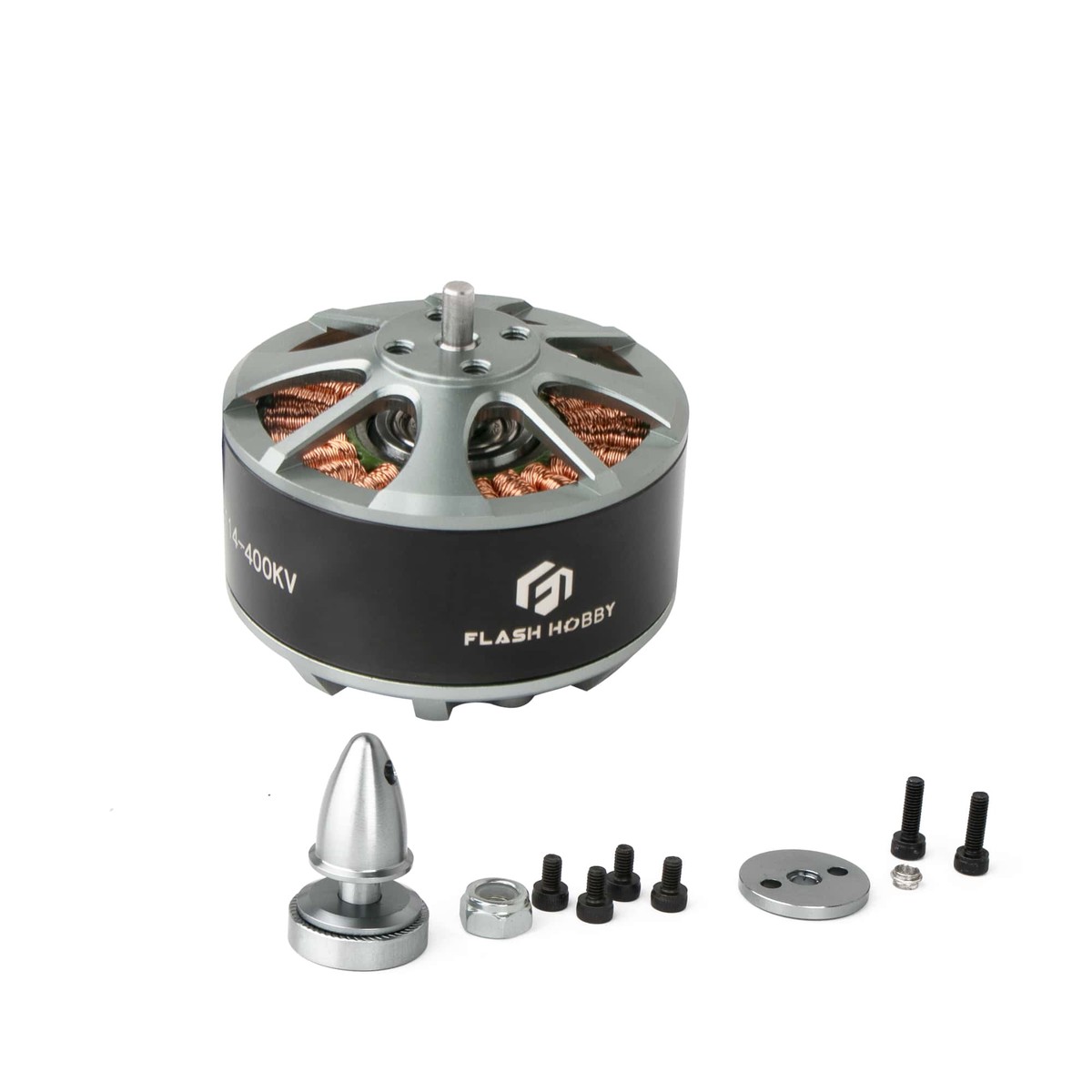

Name: Flashhobby 4114 Brushless DC Motor 330KV/400KV, 47x32.5mm, 170g, 24N22P, 19x25mm M3 Mount
SKU: WKA86610369666
Availability: InStock

Description
Reviews (0)

Overview

The Flashhobby 4114 Brushless DC Motor is available in 330KV or 400KV (custom KV also listed) for RC power systems where a 4114-size outrunner is required.

Key Features

48SH magnets (22P)
Precision balanced rotor test
High torque motor design (listed: 12N14P)
CNC 6061-T6 aluminum bell
Imported high-RPM bearing (NMB/NSK, 24N)
High temperature resistant copper wire winding
Screw lock shaft

Specifications

Model	4114
KV value	330KV / 400KV / custom KV (listed)
Weight	170.0 g (including the cables)
Motor size	47 x 32.5 mm
Shaft diameter	4.0 mm (listed); drawing also shows Dia 3.17 mm
Motor mount	19 x 25 mm (M3 x 4)
Configuration	24N22P
Motor cable	18# AWG, 220 mm
Mechanical drawing (additional marked dimensions)	Dia 47; 32.5; 12; 19; 25; 4-M3; Dia 12; Dia 6; Dia 3.1; Dia 5.8; Dia 20; Dia 4; 2.5; Dia 3.2; 26.2; 21.4; thread length 13.6; 3.4; Dia 17.3; Dia 15; M4; 19.6; 15; M6

Wiring / Connections

Connect motor phase wires A/B/C to a brushless ESC.
ESC connects to the battery and to the receiver via a PWM input signal cable.

For compatibility or setup questions, contact [email protected] or visit https://rcdrone.top/.

Details

The Flashhobby 4114 brushless DC motor uses a screw-lock shaft design with 48SH 22P magnets and NMB/NSK bearings.

Flashhobby 4114 brushless DC motor dimensions include a 47 mm body, 32.5 mm length, and a 3.17 mm shaft for fit checks before mounting.

A basic brushless setup connects the ESC to the battery, the receiver via a PWM signal lead, and the motor using three phase wires (A, B, C).
