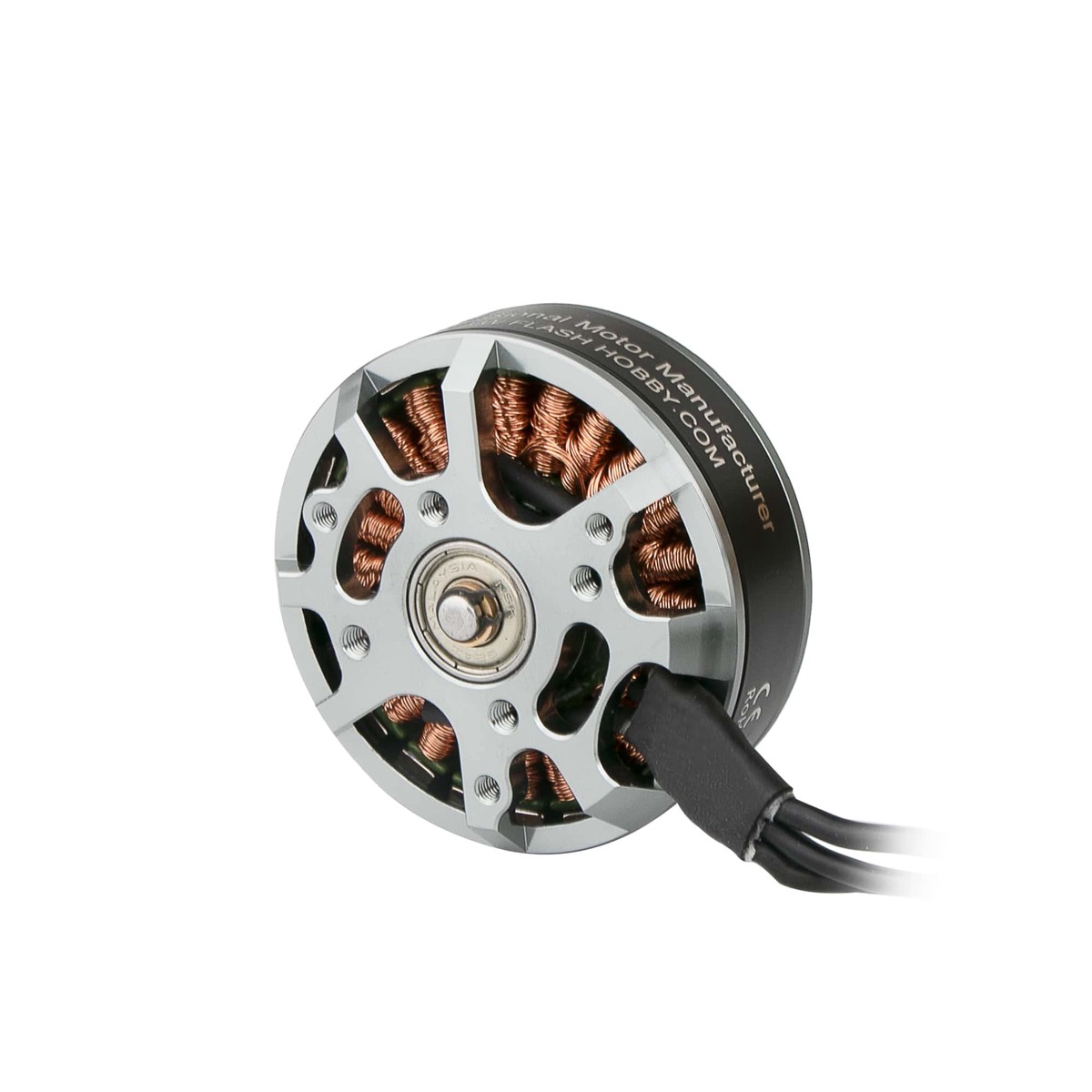

Flashhobby 4108 Brushless DC Motor 380KV/500KV/620KV, 24N22P, 4.0mm Shaft, 112g

Flashhobby 4108 Brushless DC Motor 380KV/500KV/620KV, 24N22P, 4.0mm Shaft, 112g

Flashhobby 4108 Brushless DC Motor 380KV/500KV/620KV, 24N22P, 4.0mm Shaft, 112g

Original price was: $59.00.Current price is: $29.50.
  • SKU:ELAC22173210291
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

Flashhobby 4108 Brushless DC Motor options include 380KV, 500KV, and 620KV (custom KV available). This motor is specified at 112.0g including cables, with a 47 x 25.8mm motor size and a 4.0mm shaft diameter.

Key Features

  • 48SH magnets (22P)
  • Configuration: 24N22P
  • NMB/NSK bearing
  • Screw lock shaft
  • Precision balanced rotor test
  • CNC 6061-T6 aluminum bell
  • High temperature resistant copper wire winding

Specifications

Model 4108
Type Brushless DC Motor
KV 380KV / 500KV / 620KV (custom KV available)
Weight 112.0g (including the cables)
Motor size 47 x 25.8mm
Shaft diameter 4.0mm
Motor mount 19*25mm (M3*4)
Configuration 24N22P
Motor cable 18#AWG 220mm
Magnets 48SH (22P)
Bearing NMB/NSK
Shaft retention Screw lock shaft

Wiring / Connection (Typical)

  • Connect the motor phase wires A/B/C to a brushless ESC.
  • Connect the ESC to the battery.
  • Connect the ESC PWM input signal cable to the receiver.

For compatibility questions (ESC selection, prop matching, mounting, or custom KV requests), contact support@ or visit https:///.

Details

The Flashhobby 4108 brushless motor uses 48SH magnets, NMB/NSK bearings, and a screw-lock shaft for a solid, serviceable build.

The 4108 motors dimensioned layout helps confirm overall diameter, body length, and M3 mounting-hole spacing for a precise fit.

A standard brushless setup connects the ESC to the battery, receiver PWM signal lead, and the motors three phase wires (A/B/C).
