Flashhobby 3510 Brushless DC Motor 360KV/600KV/700KV 12N14P 42 x 28.4mm 4.0mm Shaft 120g

Flashhobby 3510 Brushless DC Motor 360KV/600KV/700KV 12N14P 42 x 28.4mm 4.0mm Shaft 120g

Flashhobby 3510 Brushless DC Motor 360KV/600KV/700KV 12N14P 42 x 28.4mm 4.0mm Shaft 120g

Original price was: $65.00.Current price is: $32.50.
  • SKU:WKA86610369662
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The Flashhobby 3510 Brushless DC Motor is a 12N14P motor platform offered in 360KV, 600KV, and 700KV (custom KV available), designed with a 4.0mm shaft and 19 x 25mm (M3 x 4) mounting pattern.

Key Features

  • 48SH level magnets (14P)
  • Precision balanced rotor test
  • 12N14P high-torque motor design
  • CNC 6061-T6 aluminum bell
  • Imported bearings: NMB/NSK
  • High-temperature resistant copper wire winding
  • C retaining ring

Specifications

Model 3510
Weight 120.0g (including the cables)
Motor size 42 x 28.4mm
Shaft diameter 4.0mm
Motor mount 19 x 25mm (M3 x 4)
Configuration 12N14P
Motor cable 18#AWG, 220mm
KV value options 360KV / 600KV / 700KV (custom KV available)
Drawing dimensions shown 28.4; 42.1; 31.7; 19; 25; 4-M3; 12; 20; 4; 2.5; 3.1; 6.8; 12; 26.2; 21.4; 3.4; 19.6; 15; 6; 17.8; 15; M6

Applications

  • RC aircraft and multirotor propulsion systems
  • DIY robotics and brushless drive projects requiring a 3510-size motor

For compatibility questions (KV selection, mounting, wiring with ESC/receiver PWM control), contact [email protected] or visit https://rcdrone.top/.

Details

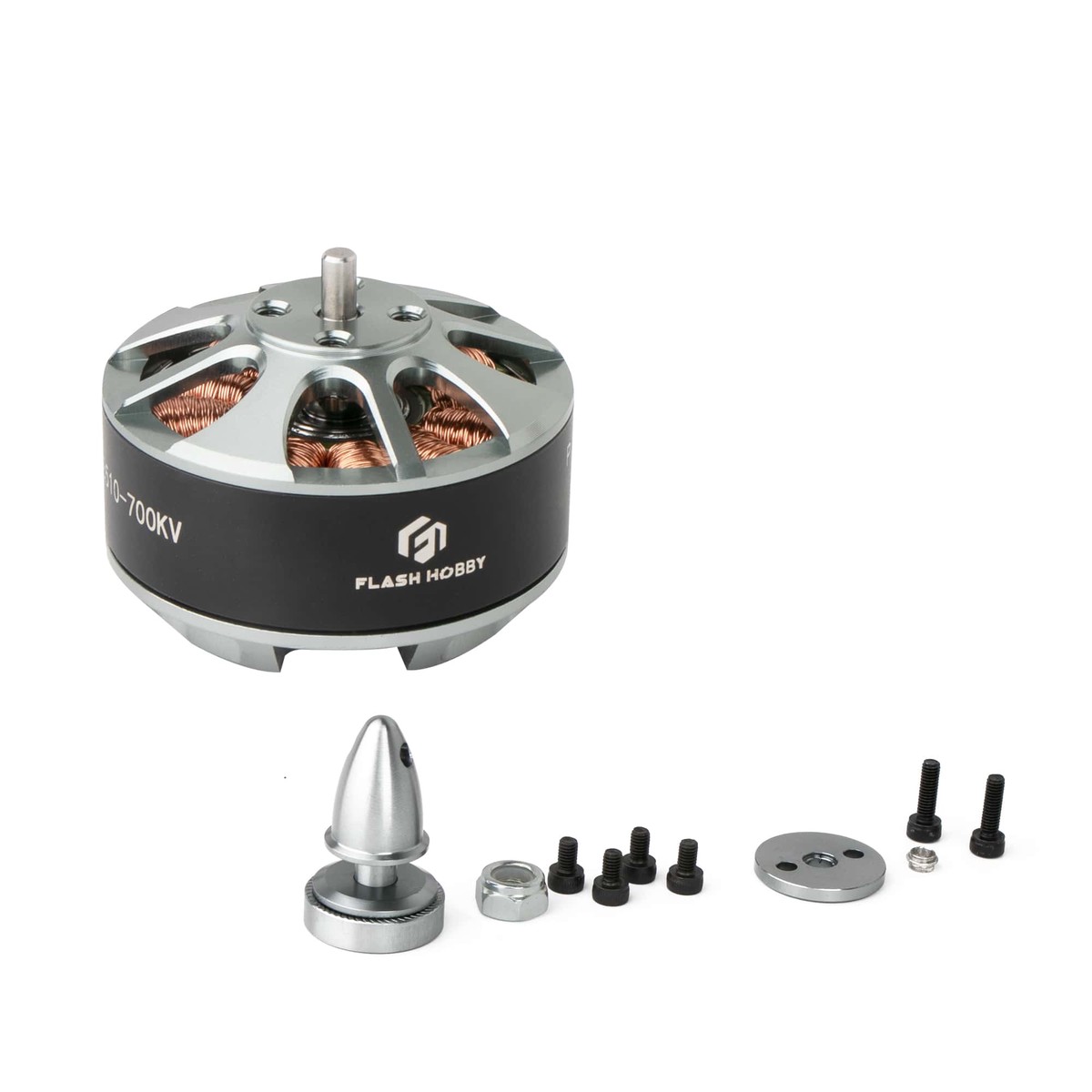

The Flashhobby 3510 brushless DC motor uses 48SH 14P magnets with an NMB/NSK bearing and a C retaining ring for a secure internal assembly.

Flashhobby 3510 brushless DC motor dimensions and mounting hole layout help confirm fitment and hardware spacing during installation.

A basic brushless setup uses an ESC wired to the battery, receiver PWM signal lead, and the motors three phase wires (A/B/C).
