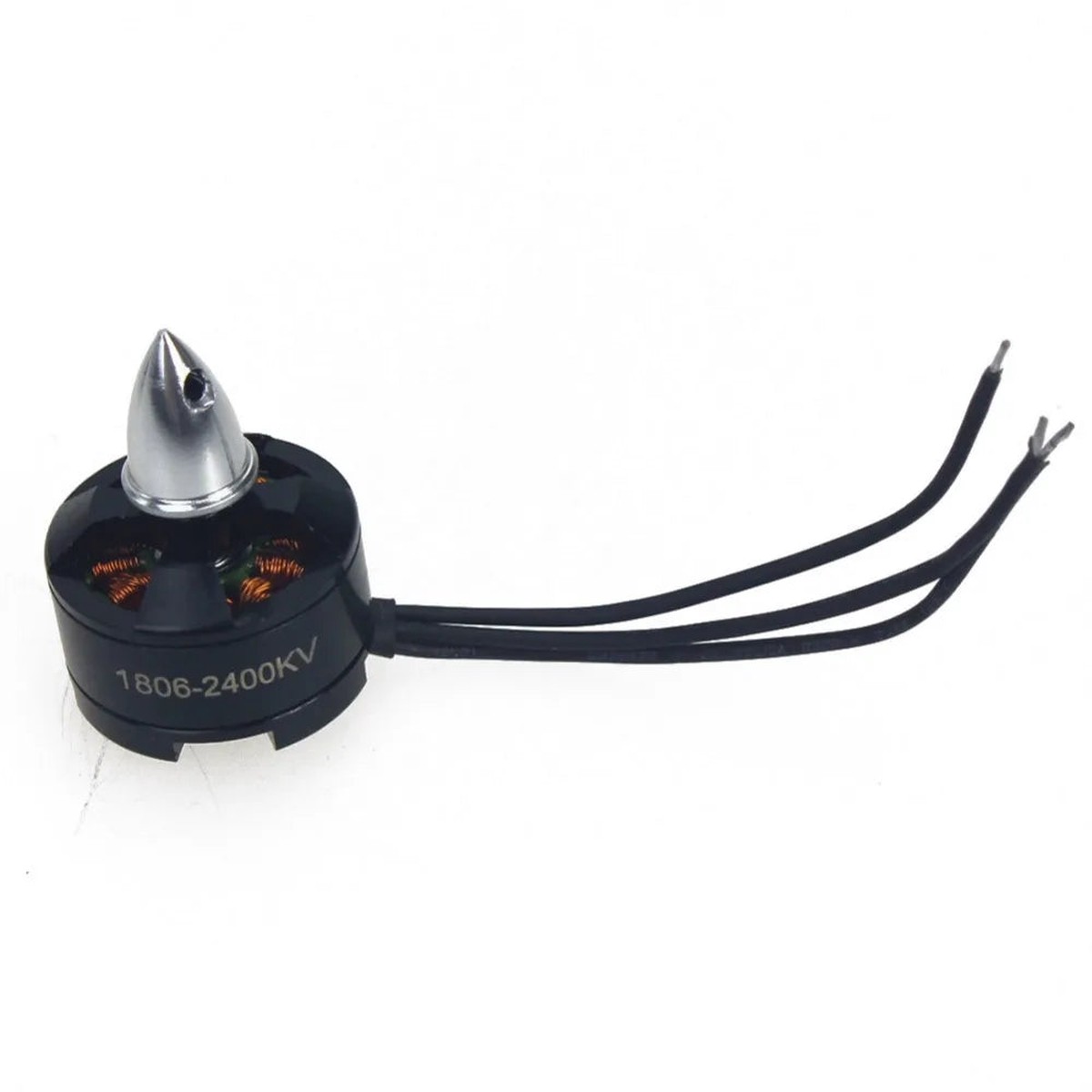

Name: FEICHAO 1806 2400KV CCW Brushless Motor for 23S 250 FPV Racing Drones RC Multirotors
SKU: ELAC22173214708
Availability: InStock

Description
Reviews (0)

Overview

The FEICHAO 1806 2400KV Counterclockwise (CCW) Brushless Motor is engineered for 250-class FPV racing drones, mini multirotors, and other lightweight RC aircraft. Designed for use with 2S3S LiPo batteries, it offers a solid blend of thrust and efficiency for agile flying and freestyle builds.

With a lightweight 16g structure (excluding cables), this motor is ideal for frames like 250/260/KK series and compatible with a wide range of 5-inch props.

Specifications

Parameter	Value
Model	1806 2400KV
Rotation Direction	CCW (Counterclockwise)
KV Rating	2400KV
Input Voltage	2S3S LiPo (7.4V11.1V)
Stator Diameter	18mm
Weight	16g (without wire)
Max Current	6.5A
Max Power	70W
Quantity	1 Piece

Key Features

High-speed 2400KV motor for responsive control
Lightweight and compact, perfect for 250-size FPV drones
CCW thread direction (tightens counterclockwise)
Compatible with KK flight controllers and popular multirotor frames
Ideal for DIY drone builds and spare part replacements

Package Includes

1 FEICHAO 1806 2400KV Brushless Motor (CCW)
