SPECIFICATIONS

Wire length: 65mm

Use: Vehicles & Remote Control Toys

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Motor

Remote Control Peripherals/Devices: MOTOR

RC Parts & Accs: Motor Components

Origin: Mainland China

Material: Metal

Certification: CE

Brushless Motor: RS1606

Brand Name: EMAX

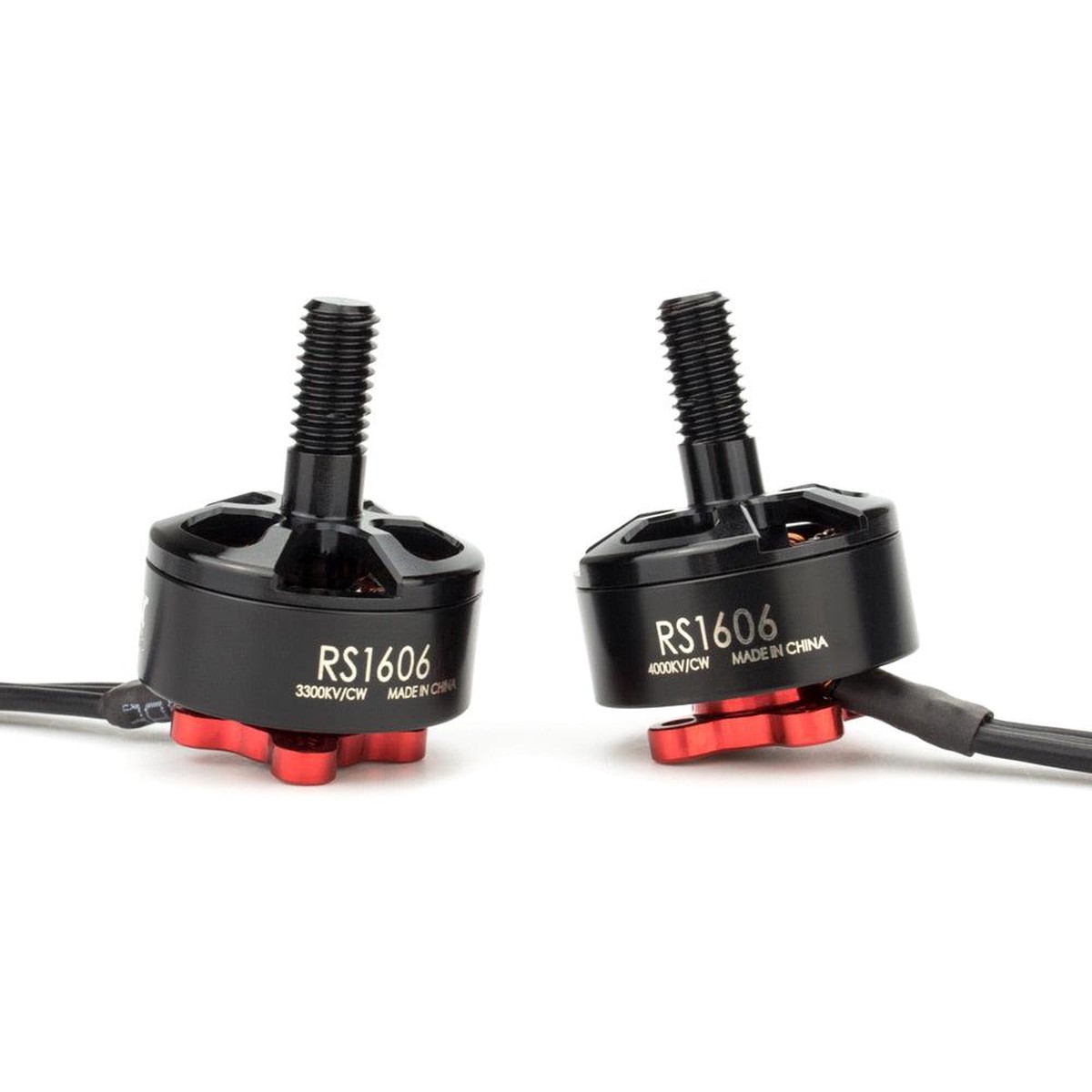

EMAX would like to introduce our new 1606 motor. Quadcopter that utilize 3-4 inch props always struggle as the old motor choices were limited to 14xx series motors, or even heavy 22xx series motors. With the 1606 this bridges the gap providing a powerful motor in a small package to get the correct AUW for 3-4 inch quadcopters. This is also great for frames that are using more HD style components like the RunCam split to carry the extra payload. Can you say smooth controlled HD footage, now its possible with the RS1606.

RS1606 – 4000KV – 3300kv

Framework: 9N12P

Length: 28.1

Diameter: 20.8mm

No. of Cells: 3-4S

Max. Thrust: 4000-1027g (on 4s) 3300kv-875 (on 4s)

Prop shaft thread type: M5

Propeller: 3″ – 4″

Weight: 15.8g (W/O silicone wire)

Wire Length:65mm 24AWG

Motor mount bolt pattern12mmx12mm M2 Thread

Bearing: 3x6x2.5

The wire length of this motor is:65mm.
