SPECIFICATIONS

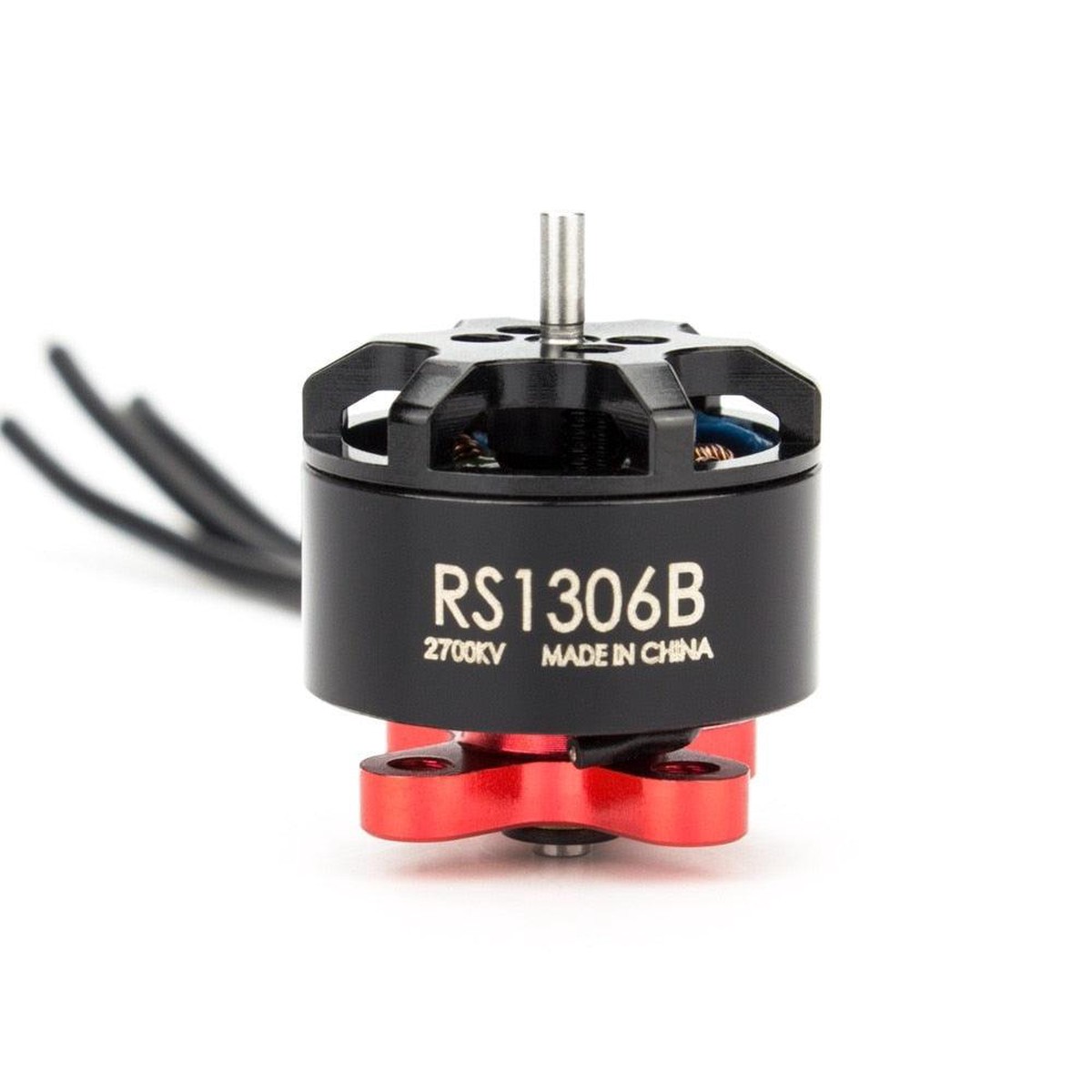

Name: EMAX RS1306B Motor - RS1306 Version2 Brushless Motor 3-4S For RC Plane Fpv Drone Multi Rotor
SKU: WKA86610370501
Availability: InStock

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Remote Control Peripherals/Devices: drone brushless motor

RC Parts & Accs: Motors

Origin: Mainland China

Material: Metal

For Vehicle Type: Airplanes

Brand Name: EMAX

NEW for 2018.

EMAX would like to introduce a new line of RS1306 motor. Redesigned from the ground up to have better performance and smoother flight. Utilizing the T-mount system you can now have a small lighter motor. Also included is a bottomless design to continue to lighten the motor, decreasing crucial weight in the corners to help your quadcopter to turn more sharp and consistent.

RS1306-2700kv – 4000kv

Framework: 9N12P

Length: 19.4mm

Diameter: 16.8mm

No. of cells: 3-4s

Max thrust: 4000kv-500g(on 4s) 2700kv-336g(on 4s)

Shaft diameter1.5mm

Propeller: 3″

Weight: 9.6g (W/O silicone wire)

Wire Length: 65mm 26AWG

Mounting: T-Mount (M2 holes, 5mm eye to eye)

Motor mount bolt pattern12mmx12mm M2 Thread
