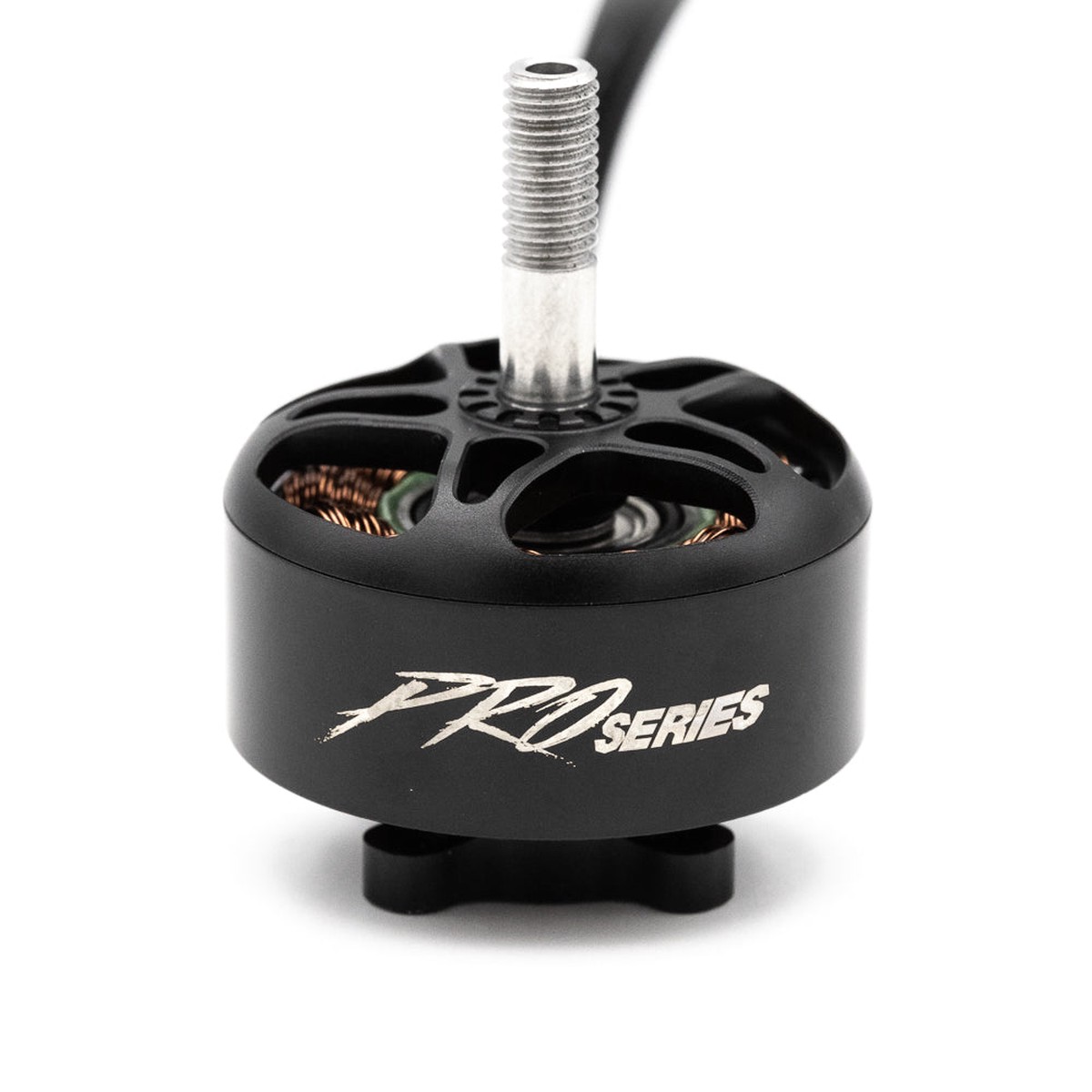

Name: EMAX Pro Series PRO-2810 Brushless Motor 950KV/1150KV, 3-6S, 33.2x42.05mm, 12N14P
SKU: WKA86610369514
Availability: InStock

Description
Reviews (0)

Overview

The EMAX Pro Series PRO-2810 brushless motor is available in 950KV and 1150KV options, designed for 36S setups and propeller sizes in the 7″8″ range. It features a 12N14P framework, 18AWG lead wires, and standard multi-rotor style mounting with M3 screws.

Key Features

Two KV options: 950KV or 1150KV
36S cell support
12N14P framework
4 mm bearing shaft
18AWG lead wires, 250 mm length
M5 shaft thread; mounting: 4 x M3, mounting circle dia 19 mm

Specifications

Parameter	PRO-2810-950KV	PRO-2810-1150KV
KV	950	1150
Motor dimensions	33.2 x 42.05 mm	33.2 x 42.05 mm
Framework	12N14P	12N14P
Bearing shaft	4 mm	4 mm
Lead	18AWG, 250 mm	18AWG, 250 mm
Weight	63.7 g (W/O Silicone Wire)	63.7 g (W/O Silicone Wire)
Idle current (10V)	1.2 A	1.6 A
Internal resistance	72 mOhm	52 mOhm
No. of cells	36S	36S
Propeller	7″8″	7″8″
Peak current (6S)	49 A	60 A
Max. power (6S)	1235 W	1512 W

Dimensions & Mounting

Max outer diameter	Dia 33.2 mm
Overall height	42.05 mm
Body height	35.15 mm
Shaft length (shown)	17.1 mm
Shaft thread	M5
Mounting	4 x M3; mounting circle dia 19 mm
Lead wire	18AWG, 250 mm

Performance Data (25.2V)

PRO-2810-950KV + Gemfan 8060 (3-blade propeller)

Voltage (V)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	Speed (RPM)
25.2	2.35	310	59.22	5.23	6110
25.2	4.86	600	122.47	4.90	7920
25.2	8.63	920	217.48	4.23	9630
25.2	13.3	1260	335.16	3.76	11190
25.2	19.5	1600	491.40	3.26	12590
25.2	26.6	1950	670.32	2.91	13880
25.2	35.1	2330	884.52	2.63	15030
25.2	47.2	2850	1189.44	2.40	Max

PRO-2810-950KV + AVIA 8043 (3-blade propeller)

Voltage (V)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	Speed (RPM)
25.2	2.1	300	52.92	5.67	6310
25.2	4.23	530	106.60	4.97	8110
25.2	7.55	830	190.26	4.36	9930
25.2	11.8	1150	297.36	3.87	11610
25.2	17.4	1480	438.48	3.38	13020
25.2	24.1	1820	607.32	3.00	14390
25.2	32.1	2160	808.92	2.67	15640
25.2	42.8	2600	1078.56	2.41	Max

PRO-2810-950KV + HQ 8045 (3-blade propeller)

Voltage (V)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	Speed (RPM)
25.2	2.2	310	55.44	5.59	6140
25.2	4.8	570	120.96	4.71	7920
25.2	8.65	900	217.98	4.13	9620
25.2	13.4	1230	337.68	3.64	11150
25.2	19.8	1600	498.96	3.21	12500
25.2	27.2	1960	685.44	2.86	13730
25.2	35.8	2310	902.16	2.56	14790
25.2	48.8	2830	1229.76	2.30	Max

PRO-2810-1150KV + Gemfan 8046 (3-blade propeller)

Voltage (V)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	Speed (RPM)
25.2	2.75	320	69.30	4.62	7560
25.2	5.45	580	137.34	4.22	9720
25.2	9.65	930	243.18	3.82	11750
25.2	15	1280	378.00	3.39	13630
25.2	22.1	1670	556.92	3.00	15410
25.2	31	2120	781.20	2.71	17130
25.2	40.8	2520	1028.16	2.45	18520
25.2	53.7	3060	1353.24	2.26	Max

PRO-2810-1150KV + Gemfan 8040 (3-blade propeller)

Voltage (V)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)	Speed (RPM)
25.2	3.03	390	76.36	5.11	7460
25.2	6.13	700	154.48	4.53	9560
25.2	10.7	1070	269.64	3.97	11590
25.2	16.9	1460	425.88	3.43	13300
25.2	24.7	1900	622.44	3.05	14980
25.2	34.2	2350	861.84	2.73	16480
25.2	45	2780	1134.00	2.45	17750
25.2	59.8	3200	1506.96	2.12	Max

For compatibility questions (ESC selection, prop sizing, or power setup), contact support at https://rcdrone.top/ or email [email protected].

Details

Dimensions and mounting details for the PRO-2810 motor, including 19 mm M3 bolt pattern, M5 shaft thread, and 250 mm 18AWG leads.

Performance data at 25.2V for the PRO-2810-950KV with 78 inch tri-blade props, listing thrust, current draw, RPM, and efficiency.

Performance data at 25.2V for the PRO-2810-1150KV using Gemfan 8046 and 8040 tri-blade propellers, including thrust, power, and RPM.
