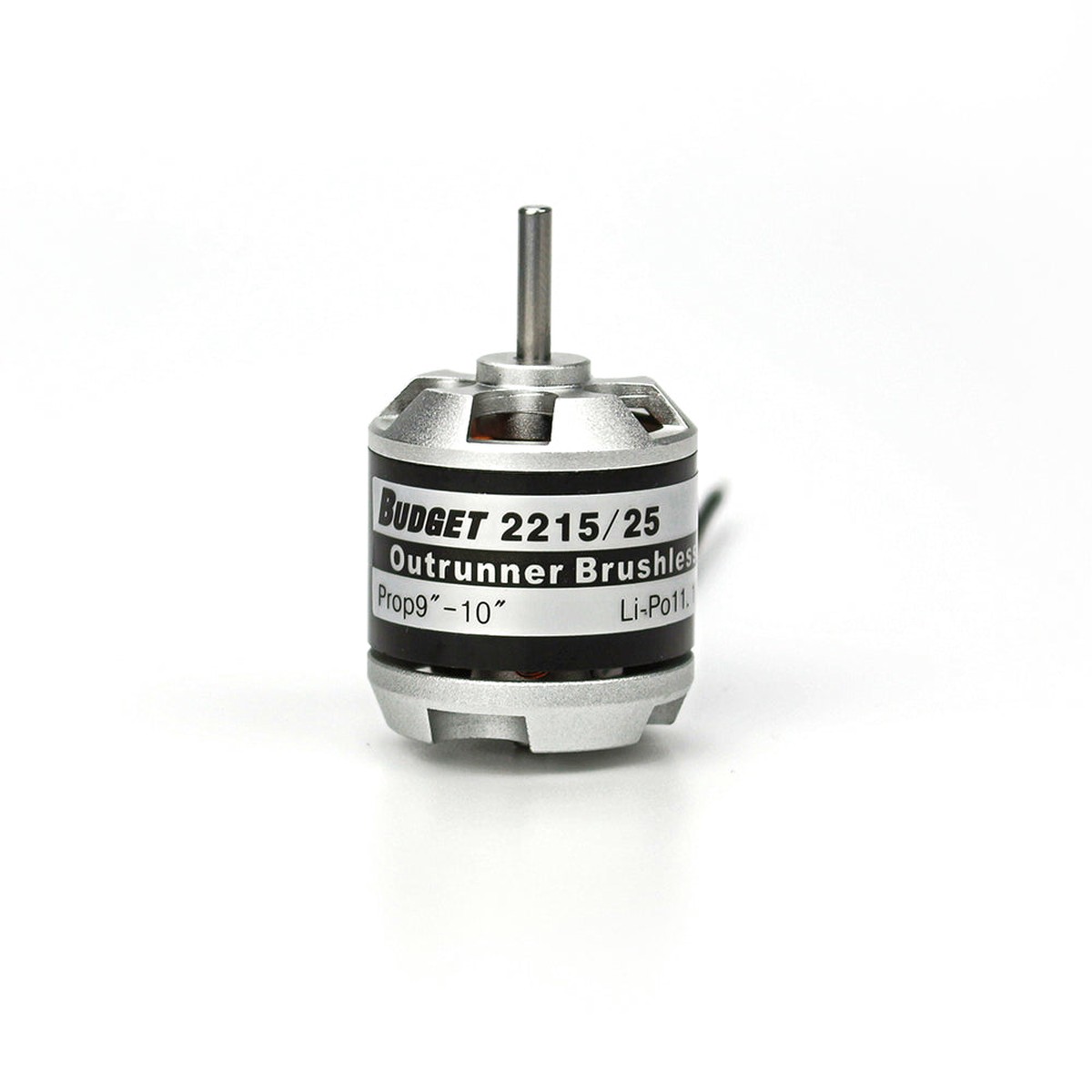

Name: EMax Budget 2215/25 Outrunner Brushless Motor - 28.5mm OD, 44.8mm Length, 3mm Shaft, 4x M3 Mount
SKU: ELAC22173208768
Availability: InStock

motor

EMax Budget 2215/25 Outrunner Brushless Motor – 28.5mm OD, 44.8mm Length, 3mm Shaft, 4x M3 Mount

SKU:ELAC22173208768
Category:motor

Free shipping on orders over $40!
Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
Return within 30 days. Duties & taxes non-refundable.

Description
Reviews (0)

Overview

The EMax Budget 2215/25 is an outrunner brushless motor designed for RC aircraft and other lightweight propulsion setups where a compact motor with standard mounting is required. This product_type is an outrunner brushless motor.

Key Features

Compact 2215/25-format outrunner brushless motor mechanical envelope
4-hole mounting pattern with M3 mounting screws
3 mm motor shaft diameter tolerance noted on drawing

Specifications

Motor model	Budget 2215/25
Outer diameter	28.5 mm
Overall length	44.8 mm
Body diameter (side view)	28.5 mm
Shaft diameter	3 mm (0 / -0.02)
Front boss / feature diameter	10 mm
Dimension	4.5 mm
Dimension	1.5 mm
Dimension	12.5 mm
Dimension	14.5 mm
Mounting holes	4 – M3
Mounting hole pattern	19.0 0.1 mm (diagonal)
Mounting hole pattern	16.0 0.1 mm (diagonal)
Units	mm
Drawing title	Budget 2215/25 motor drawing
Date	2022/03/31
Part No.	0101003001
Drawing version	V1.0
Tolerance (general)	x.x 0.2
