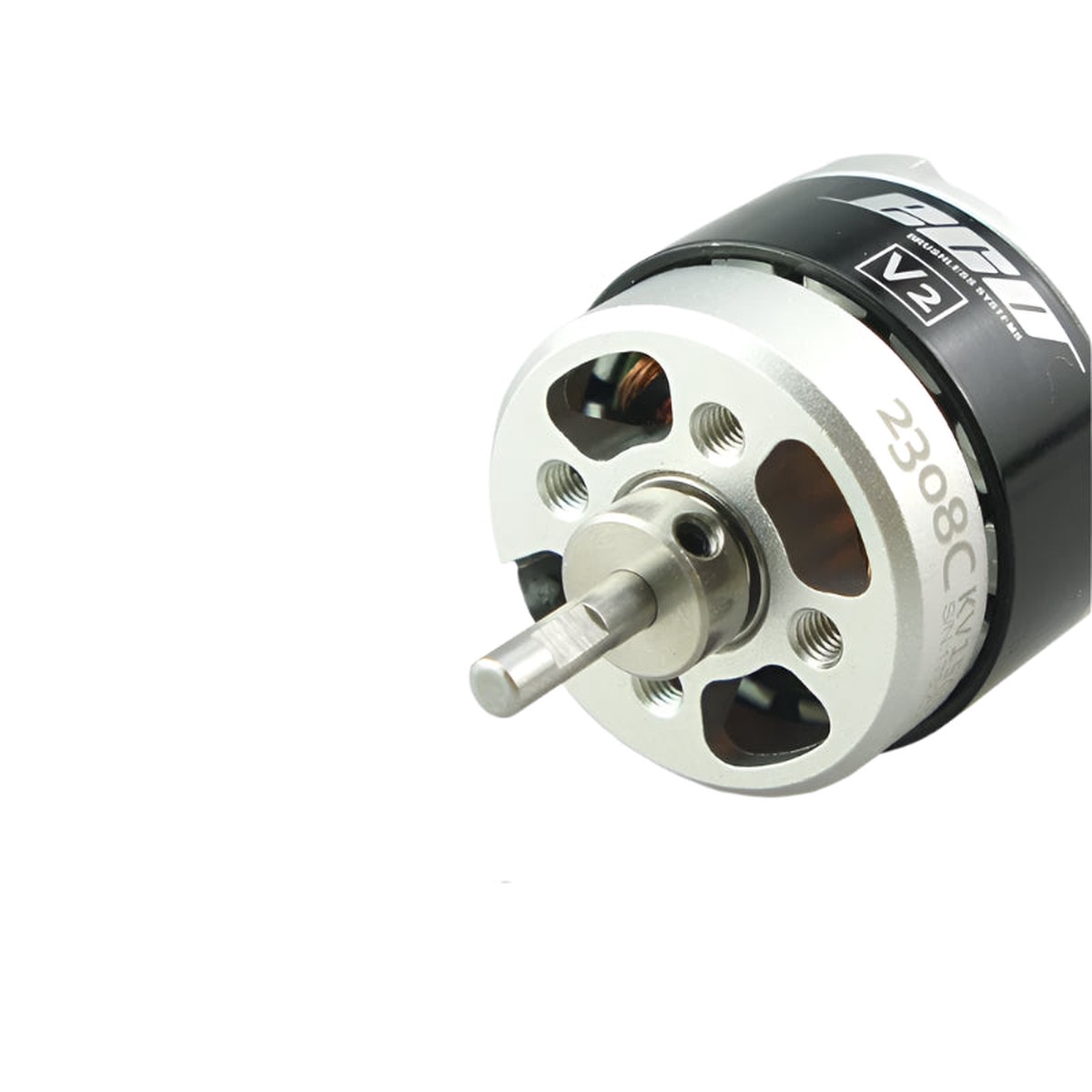

DUALSKY ECO 2308C V2 2308 1800KV-980KV Brushless Motor for Fixed Wing RC Planes 2S-4S External Rotor Motor

The DUALSKY ECO 2308C V2 brushless motor is a high-efficiency external rotor motor specifically engineered for fixed-wing aircraft and small EDF jets. With precise construction and a robust stator structure (12N14P), this motor series is ideal for 400600g aircraft, delivering consistent performance across a wide range of KV options (1800KV, 1500KV, 1180KV, 980KV).

Built with high-temperature windings, premium 3.175mm shafts, and a compact form factor (28.8×24.9mm), the ECO 2308C V2 strikes an excellent balance between power, efficiency, and reliability. Ideal for 2S4S LiPo setups with recommended ESCs like XC-22 LITE or XC2512BA, and suitable props from 8x4E to 10x5E depending on voltage and model.

Key Features:

• KV Options: 1800KV / 1500KV / 1180KV / 980KV

• Stator Configuration: 12N14P

• Motor Size: 28.8 24.9mm

• Shaft Diameter: 3.175mm

• Weight: 47g

• Internal Resistance: 68189m

• Max Power: Up to 240W

• Burst Current: Up to 25A

• Recommended Props: 10x5E, 9x6E, 9×4.7SF, 8x4E

• Input Voltage: 2S4S LiPo

• ESC Compatibility: XC-22 LITE / XC2512BA

• Class: Wings and Little Jets / 400600g Class Airframes

Package Contents:

• 1 DUALSKY ECO 2308C V2 Motor

• 1 Cross Mount

• 4 Cross Mount Screws

• 1 Prop Adapter Mount

• 5 Mounting Screws for Prop Adapter

• 1 Bullet Connector Adapter

• 3 Heat Shrink Tubes

• 3 3.5mm Bullet Connectors
