Dogmang 2807 Series Brushless Motors (1300 KV / 1500 KV / 1700 KV) 26 S LiPo, 4 mm Shaft for 67 FPV Freestyle & LR7 Long-Range Drones

Overview

The Dogmang 2807 series delivers race-ready thrust and efficiency for 67 FPV freestyle and LR7 long-range drone builds. Featuring a high-torque 12 N14 P design, dynamically balanced rotors and oxygen-free copper windings, each motor runs smoothly across a range of LiPo voltages while minimizing vibration and heat.

Key Features

• 12 N14 P High-Torque Configuration: Exceptional thrust-to-weight ratio

• Wide Voltage Compatibility:

  • 1300 KV: 26 S LiPo (up to 1400 W)

  • 1500 KV: 35 S LiPo (up to 1300 W)

  • 1700 KV: 34 S LiPo (up to 900 W)

• Precision 4 mm Shaft: Hardened steel with high-speed bearings

• Dynamic Balancing: Reduces vibration for stable flight

• Low-Resistance Windings: 60 m / 55 m / 45 m for efficient power transfer

• Silicone-Insulated Leads: 18 AWG, 200 mm

Specifications

Why Choose Dogmang 2807?

Each Dogmang 2807 motor is tested and balanced for peak performance, delivering reliable power, smooth throttle response, and excellent heat dissipationmaking it the perfect upgrade for your next FPV freestyle or long-range LR7 drone build.

Package Includes:

• 1 Dogmang 2807 Brushless Motor (select KV)

• 1 Set of M3 Mounting Screws

Dogmang 2807 Series Brushless Motor for 7-inch FPV Drone, available in 1300KV, 1500KV, and 1700KV options. Compact design with visible copper windings.

Dogmang 2807 Series Brushless Motor specs: 2S-6S cells, 48.6-47.9g weight, 4mm shaft, 1400-900W power, 18#AWG200mm lead, 33.5×17.5mm size, 1-1.9A idle current, 6″-7″ propeller, 12N 14P framework, 55-63A peak current, 45-60m resistance.

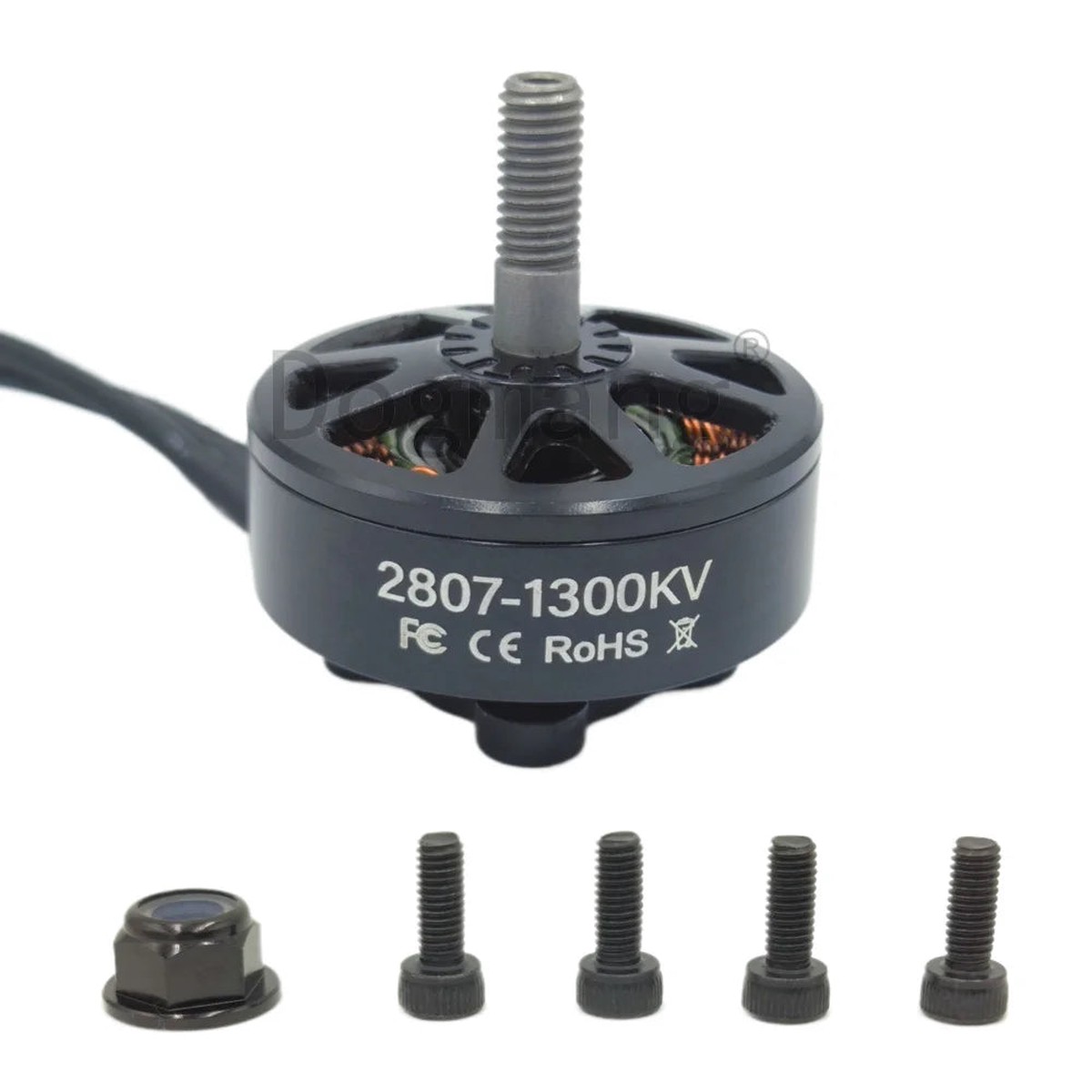

Dogmang 2807-1300KV Brushless Motor, featuring high performance for FPV drones, with CE and RoHS certifications.

Dogmang 2807 Series Brushless Motor, 1300KV, featuring FC, CE, RoHS compliance. Compact design with visible copper windings and central screw for secure attachment.

Dogmang 2807 Series Brushless Motor in EPE cotton anti-collision packaging ensures intact and undamaged delivery.
