SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 7*3*3

Recommend Age: 12+y

Origin: Mainland China

Model Number: 2004 1700kv 2900kv

Material: Metal

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

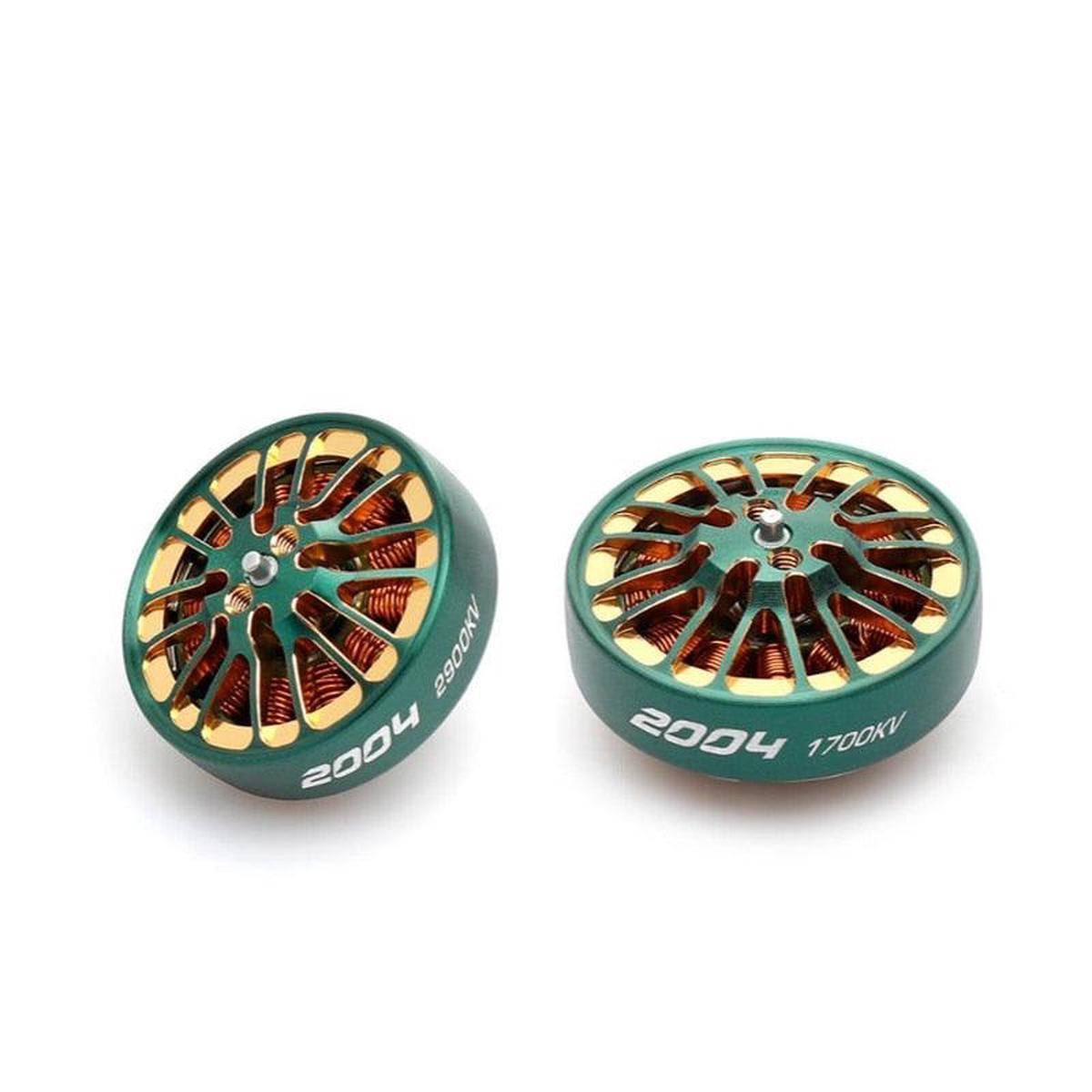

Item:DIATONE MAMBA TOKA 2004 1700KV/2900KV Brushless Motor Racing Motor Green
Parameters:
Mamba Toka 2004 1700KV Racing Motor
Overall Dimension:26.215.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:1212mm,M2
Prop: 3.5inch~5inch
Bearing:7*3*3
Shaft Diameter:3.0mm
Lead Wire Size:24AWG150mm
slots/poles:12N14P
Magnet Wire: 240Enameled Wire
Stator Diamter:20mm
Stator Height:4mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 17.52A
ldle Current:10V/0.3~0.8A
Maximum Power: 418.1W
Internal Resistance:210
Weight: 16.3g

Mamba Toka 2004 2900KV Racing Motor
Overall Dimension:26.215.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:1212mm,M2
Prop: 3.5inch~5inch
Bearing:7*3*3
Shaft Diameter:3.0mm
Lead Wire Size:24AWG150mm
slots/poles:12N14P
Magnet Wire: 240Enameled Wire
Stator Diamter:20mm
Stator Height:4mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 31.63A
ldle Current:10V/0.9~1.5A
Maximum Power: 418.1W
Internal Resistance:90
Weight: 16.3g

• Package Included:

• 1PC 2004 1700KV

• Or 1PC 2004 2900KV

• Or 4PCS 2004 1700KV

• Or 4PCS 2004 2900KV

GF5125 60%6 21902 196.74 70%6 24138 281.86 80% 14.51 25926 346.81 908 15.89 27121 379.73 100%6 17.52 418.10 04km ToKA 2004 – 1700kv xiaeit 4-65 Model Support Battery 13t 12N14P #biaezpb 2100 Slots/Poles Interna Resistance RE.M2z 1.5 RtrM 17.52A Prop Mounting Shaft Maximun

DIATONE MAMBA TOKA 2004 Brushless Motor: This motor features a high-speed 2900KV rating, suitable for racing applications with 3-5 inch propellers. It has a built-in ESC, supports 12-14 cell NiMH or LiPo batteries, and can deliver up to 31.63A of current. The motor’s dimensions are as follows: diameter (mm) – 26.2; length (mm) – unknown. Maximum current (A) is 240C. The motor is designed for high-temperature applications and has an internal resistance of R02t0nZ ( unknown units). It also features a prop mounting shaft, maximum current rating, and a temperature-resistant design.
