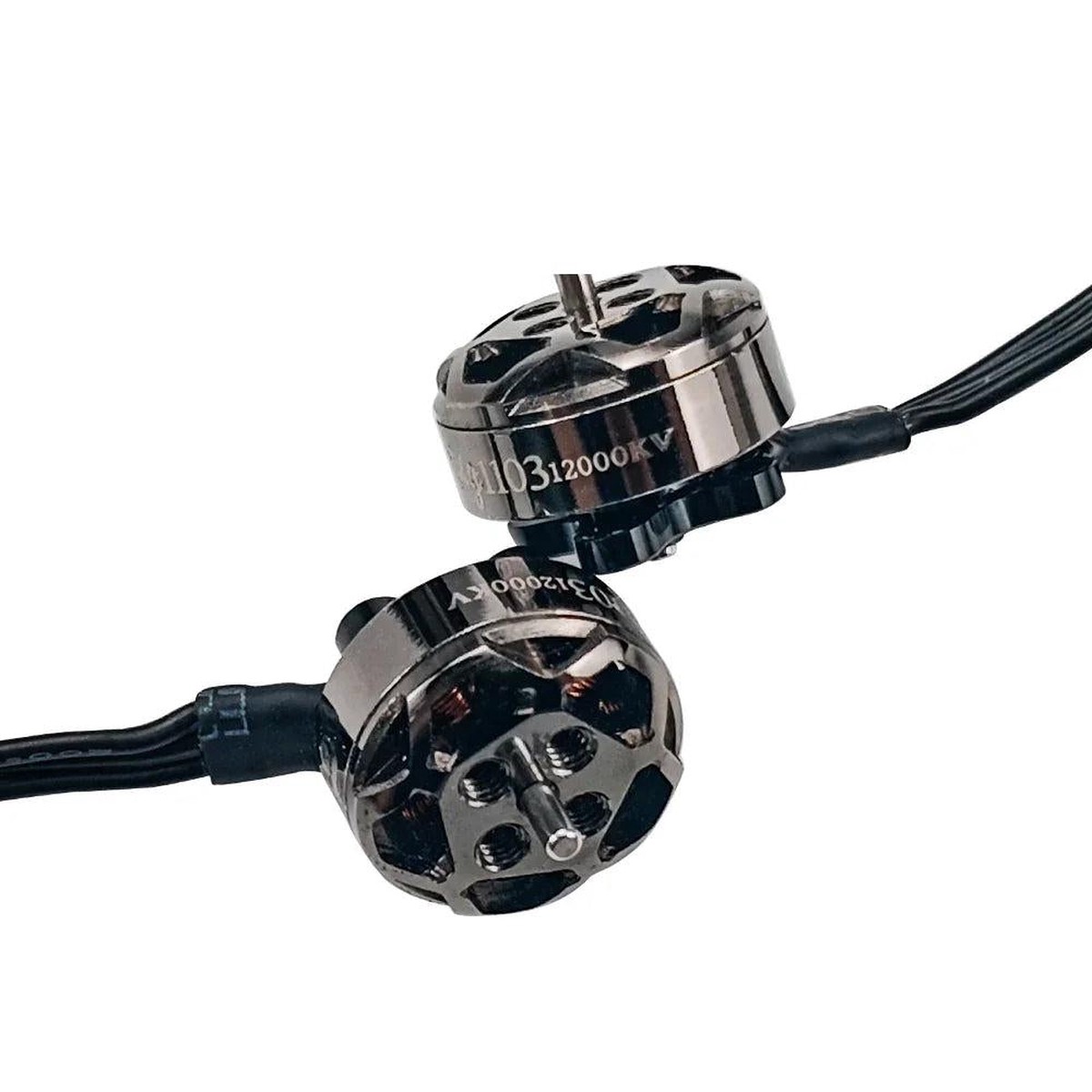

Name: DarwinFPV Bling 1103 FPV Drone Brushless Motor (8000KV/12000KV) Phi11x3, 1.5mm Shaft, 24in
SKU: ELAC22173209019
Availability: InStock

Description
Reviews (0)

Overview

DarwinFPV Bling Series Bling 1103 is a FPV drone brushless motor designed for 24 inch small drones, with a diamond-inspired electroplated appearance and an efficiency-focused magnetic circuit design.

Key Features

Diamond-inspired electroplated design (Bling series styling).
Magnetic circuit design aimed at improved power efficiency.
Durability-focused materials: NSK bearings, N52H magnets, and 220C high-temperature resistant copper windings.
Lightweight build: 4.100.2g (including wires).

Specifications

Common (All Bling 1103 Versions)

Stator dimension	Phi11 x 3 mm
Framework	9N12P
Prop shaft	Phi1.5 x 3.5 mm
Bearing specification	Phi1.5 x Phi4 x 2 mm
Rotor	Split
Magnet	N52H
Winding	Single strand copper winding
Mounting holes	8.5 x 8.5 mm (M1.6)
Motor dimensions	Phi14.2 x 9.5 mm
Weight (including wires)	4.100.2 g
Applicable models	200.3 inch toothpick FPV drones; 1.600.2 inch CineWhoop FPV drones

Version Comparison

Parameter	Bling 1103 12000KV	Bling 1103 8000KV
KV	12000KV	8000KV
Rated voltage	8 V (2S LiPo)	12 V (3S LiPo)
Idle current	0.6 A	1.2 A
Maximum current	11.1 A	10 A
Maximum power	88.8 W	120 W
Interphase resistance	105 mOhm	210 mOhm
Lead wire size	28AWG x 70 mm	28AWG x 38 mm

Dimension Callouts (Unit: mm)

Shaft diameter	1.5 mm
Shaft length	3.5 mm
Motor height	10 mm
Motor diameter	14.2 mm
Wire length shown	38 mm

Load Performance (Test Samples Only)

DarwinFPV Bling 1103 (8000KV) @ 12 V 00 GEMFAN-2023S

Throttle (%)	Voltage (V)	Speed (RPM/MIN)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)
10	12	10000	0.1	4	1.2	3.33
20	12	17000	0.4	17	4.8	3.54
30	12	23000	0.9	35	10.8	3.24
40	12	29000	1.6	57	19.2	2.97
50	12	33700	2.8	84	33.6	2.50
60	12	38000	3.4	104	40.8	2.55
70	12	42000	4.6	128	55.2	2.32
80	12	46000	5.9	152	70.8	2.15
90	12	49000	7.6	189	91.2	2.07
100	12	52000	9.4	210	112.8	1.86

DarwinFPV Bling 1103 (8000KV) @ 12 V 00 GEMFAN-2512-3

Throttle (%)	Voltage (V)	Speed (RPM/MIN)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)
10	12	9600	0.1	6	1.2	5.00
20	12	17000	0.4	20	4.8	4.17
30	12	23000	1.0	42	12	3.50
40	12	26000	1.8	70	21.6	3.24
50	12	33000	2.7	99	32.4	3.06
60	12	37000	3.8	133	45.6	2.92
70	12	42000	5.1	162	61.2	2.65
80	12	46000	6.7	199	80.4	2.48
90	12	46700	7.9	217	94.8	2.29
100	12	52000	10.0	259	120	2.16

DarwinFPV Bling 1103 (12000KV) @ 8 V 00 GEMFAN 2023-3

Throttle (%)	Voltage (V)	Speed (RPM/MIN)	Current (A)	Thrust (g)	Power (W)	Efficiency (g/W)
10	8	9100	0.1	3	0.8	3.75
20	8	15000	0.7	20	5.6	3.57
30	8	20000	1.5	36	12	3.00
40	8	24300	2.5	51	20	2.55
50	8	28000	3.5	62	28	2.21
60	8	31000	4.6	70	36.8	1.90
70	8	33500	5.9	81	47.2	1.72
80	8	36100	7.4	99	59.2	1.67
90	8	38100	9.1	115	72.8	1.58
100	8	44200	11.1	145	88.8	1.63

Remark: The above data represents test samples only.

What00 Included

Bling 1103-8000KV Motor: Bling 1103-8000KV motor; M1.6*4 Phillips round head screws; stickers
Bling 1103 12000KV Motor: Bling 1103 12000KV motor; M1.6*5 hex socket black round head screw; sticker

For product selection help or technical questions, contact https:/// or email support@.

Details

Diamond-inspired electroplating gives the Bling 1103 a standout look while keeping the build compact for small FPV drones.

A budget-friendly option for building or upgrading 24 inch micro quads without jumping to premium pricing.

The efficiency-focused magnetic circuit design is built to help deliver responsive power with longer flights on the same battery.

NSK bearings, N52H magnets, and 220C hightemperature copper windings are selected for durability and smoother operation.

Sized for toothpick and cinewhoop builds, the 1103 format balances lightweight handling with strong punch on small props.

Choose 12000KV for 2S builds or 8000KV for 3S setups based on your battery and prop goals.

Performance tables help match prop and voltage to the thrust and efficiency targets of your micro build.

Each motor includes mounting screws (type varies by KV option) plus DarwinFPV stickers for a clean finish.

Key dimensions are provided for frame and prop compatibility, including 14.2 mm motor diameter and 1.5 mm shaft.

The 8.58.5 mm mounting pattern uses M1.6 screws for common micro frame compatibility.

Engineering drawings and test data are included for builders who want to verify fit and tune performance.
