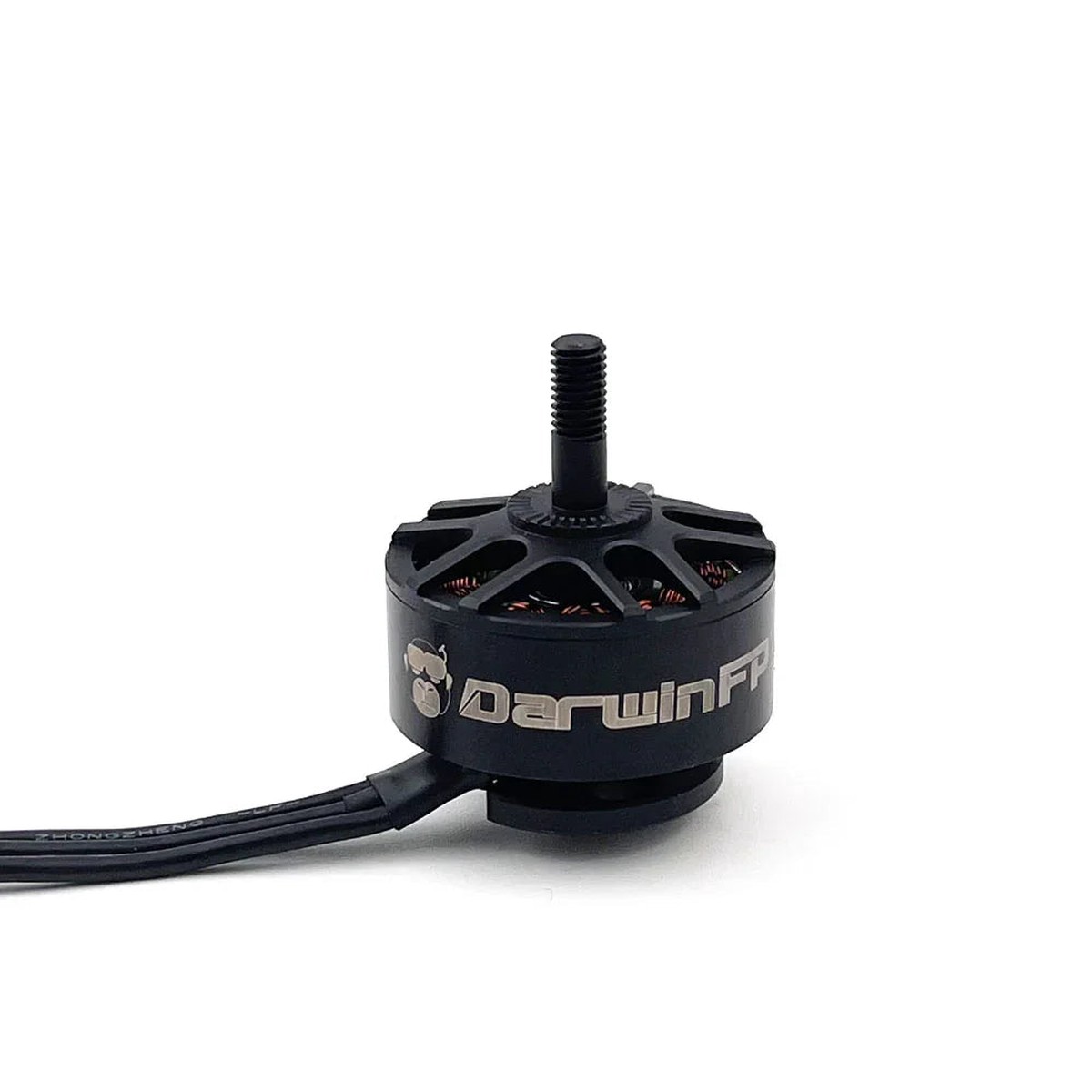

Name: DarwinFPV 2812 BLDC Motor 850KV/1100KV, 24V (6S), 12N14P for 7-10 inch Long Range FPV
SKU: A2380047099
Availability: InStock

Description
Reviews (0)

Overview

The DarwinFPV 2812 BLDC motor is designed for 24V (6S LiPo) setups and is offered in 850KV and 1100KV variants for 710 inch long-range FPV drones and 78 inch X8 models.

Key Features

Focus on practical, durable design with consistent color matching.
Magnetic circuit design uses structures and materials described as similar to DJI.
N52H magnets and multi-strand winding.
18AWG lead wires, 225mm length.

For compatibility questions (prop selection, ESC pairing, or frame fit), contact [email protected] or visit https://rcdrone.top/.

Specifications

Model	DarwinFPV 2812 BLDC
KV	850KV / 1100KV
Stator dimension	Dia 28 x 12mm
Motor dimensions	Dia 35 x 42mm
Rated voltage	24V (6S LiPo)
Idle current	0.7A/24V (850KV); 1.12A/24V (1100KV)
Maximum current	36.8A (850KV); 55.8A (1100KV)
Maximum power	883W (850KV); 1339W (1100KV)
Framework	12N14P
Prop shaft	Dia 5 x 15mm
Interphase resistance	113mOhm (850KV); 68mOhm (1100KV)
Bearing specification	5.0 x 11 x 4.0mm
Rotor specifications	Split
Magnet	N52H
Winding	Multi-strand winding
Lead wire size	18AWG x 225mm
Mounting holes	19 x 19mm (M3)
Weight (including wire)	79.5g
Applicable models	7-10 inch long range FPV drones / 7-8 inch X8 models

Motor Data Sheet

Model	Prop	Throttle (%)	Voltage (V)	RPM (RPM/MIN)	Current (A)	Thrust (G)	Power (W)	Efficiency (G/W)
2812 (850kv)	GEMFAN 1050-3	30	24	4800	1.9	671	45.6	14.71
2812 (850kv)	GEMFAN 1050-3	40	24	6200	3.9	977	93.6	10.44
2812 (850kv)	GEMFAN 1050-3	50	24	7400	7	1342	168	7.99
2812 (850kv)	GEMFAN 1050-3	60	24	8500	10.8	1694	259.2	6.54
2812 (850kv)	GEMFAN 1050-3	70	24	9500	15.9	2121	381.6	5.56
2812 (850kv)	GEMFAN 1050-3	80	24	10000	21.1	2398	506.4	4.74
2812 (850kv)	GEMFAN 1050-3	90	24	10500	27.1	2697	650.4	4.15
2812 (850kv)	GEMFAN 1050-3	100	24	11700	36.8	3036	883.2	3.44
2812 (850kv)	HQ9X4X3B	30	24	6600	2.6	464	62.4	7.44
2812 (850kv)	HQ9X4X3B	40	24	8000	5.1	755	122.4	6.17
2812 (850kv)	HQ9X4X3B	50	24	9700	8.7	1129	208.8	5.41
2812 (850kv)	HQ9X4X3B	60	24	11400	14	1531	336	4.56
2812 (850kv)	HQ9X4X3B	70	24	12700	20.2	1927	484.8	3.98
2812 (850kv)	HQ9X4X3B	80	24	14000	27	2361	648	3.64
2812 (850kv)	HQ9X4X3B	90	24	15000	35.5	2829	852	3.32
2812 (850kv)	HQ9X4X3B	100	24	16100	46	3245	1104	2.94
2812 (1100kv)	GEMFAN 9045-3	30	24	6100	3	746	72	10.36
2812 (1100kv)	GEMFAN 9045-3	40	24	8000	6.1	1114	146.4	7.61
2812 (1100kv)	GEMFAN 9045-3	50	24	9300	10.6	1532	254.4	6.02
2812 (1100kv)	GEMFAN 9045-3	60	24	10900	16.5	1971	396	4.98
2812 (1100kv)	GEMFAN 9045-3	70	24	12000	23.7	2417	568.8	4.25
2812 (1100kv)	GEMFAN 9045-3	80	24	12900	32	2870	768	3.66
2812 (1100kv)	GEMFAN 9045-3	90	24	13400	39.3	3049	943.2	3.23
2812 (1100kv)	GEMFAN 9045-3	100	24	14900	55.8	3704	1339.2	2.77

Whats Included

1 x 2812 motor
1 x M5 anti-slip nut (thickness 4.8mm)
4 x M3 x 10 black hexagon socket head round head screws

Applications

710 inch long range FPV drones
78 inch X8 models

Details

Built for 24V (6S) longrange builds, the 2812 motor comes in 850KV or 1100KV with 2812mm stator sizing and 1919mm M3 mounting.

Throttle test data with common prop options helps compare RPM, current draw, thrust, and efficiency for each KV choice.
