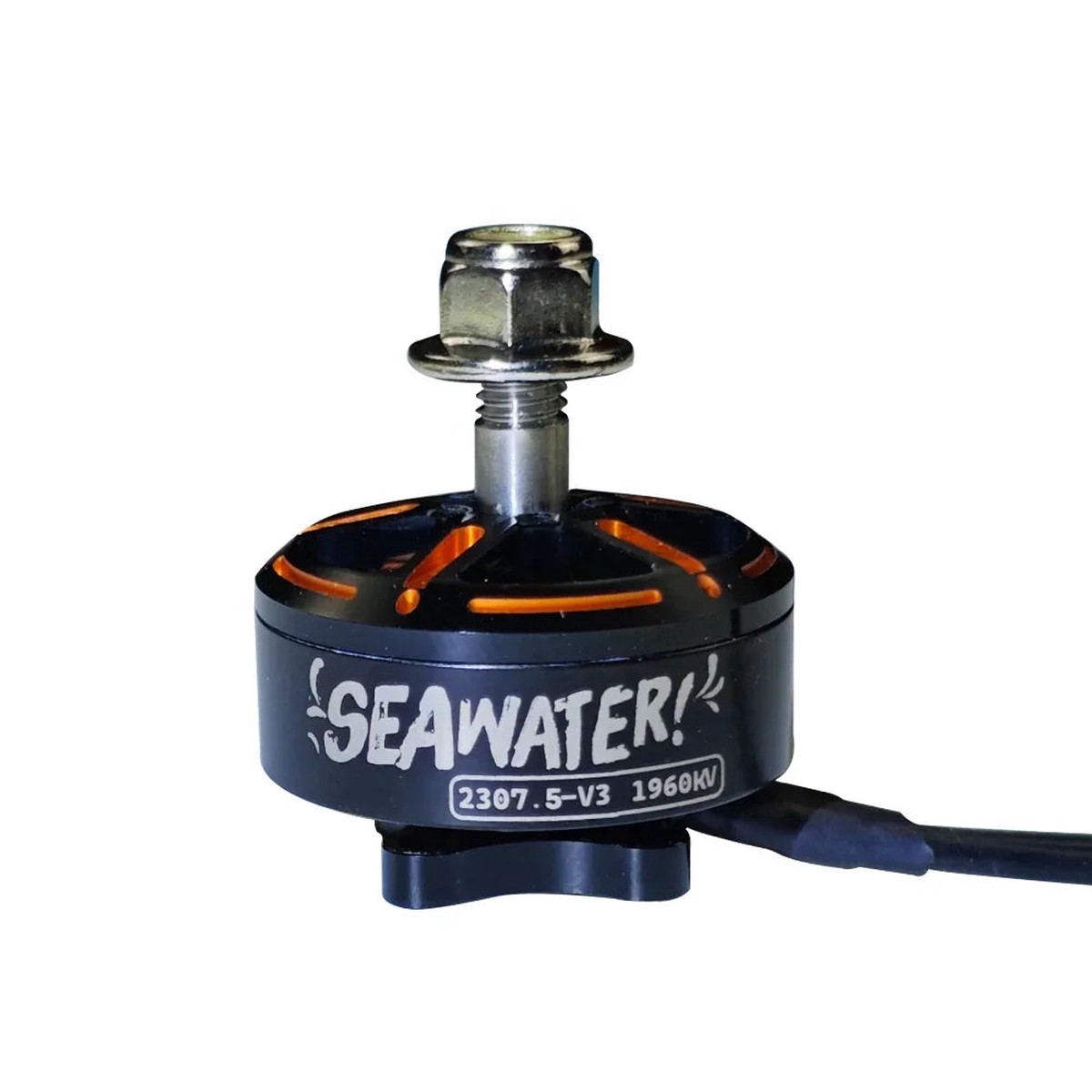

DarwinFPV 2307.5 V3 SeaWater 1960KV IP67 Waterproof Brushless Motor for 5-6 Inch FPV Drones

Overview

DarwinFPV 2307.5 V3 SeaWater is an IP67 waterproof brushless motor designed for 56 inch FPV drones, with a focus on seawater resistance and corrosion protection. After use in seawater, rinse the motor surface with fresh water as soon as possible to remove salt residues.

Key Features

• SeaWater 2307.5 marine motor design highlights: small increase in torque, multiple anti-rust process, anti-rust upgrade again, dynamic orange two-tone.
• 2307.5 stator size for enhanced torque with minimal weight gain, aimed at stable aggressive flights on 56 inch freestyle FPV drones.
• Multi-layer anti-rust technologies: magnet oxidation treatment, stator electrophoresis coating, titanium alloy shaft, and stainless steel bearings.
• V3 rust-resistance upgrade: upgraded stator electrophoresis anti-rust coating; laboratory testing indicates smooth operation after over 12 hours of seawater immersion.
• Dynamic orange dual-tone appearance.

Specifications

Thrust Test (Model: 2307.5 V3 (1960KV); Propeller: GEMFAN 51466-3; Voltage: 24V)

Whats Included

• 2307.5-1960KV motor (SeaWater series)
• M26 hexagonal head black screws (5 pcs)
• DarwinFPV stickers (2 pcs)

For product selection or installation support, contact https://rcdrone.top/ or email [email protected].

Applications

• 56 inch freestyle FPV drones
• 56 inch long range FPV drones
• Water-adjacent environments where improved corrosion resistance is required

Details

Built for 56 inch FPV builds, the 2307.5 V3 SeaWater motor combines IP67 waterproofing with upgraded corrosion protection.

Multi-layer anti-rust processing targets harsh coastal use with coated stator, treated magnets, titanium shaft, and stainless bearings.

Key specs at a glance: 1960KV on 6S (24V), 1616mm M3 mounting, and 37.5g including wires.

Thrust test results with a GEMFAN 51466-3 prop provide a clear reference for current draw, power, and efficiency across throttle.

Everything needed to get started comes in the box: motor, M26 screws, and DarwinFPV stickers.
