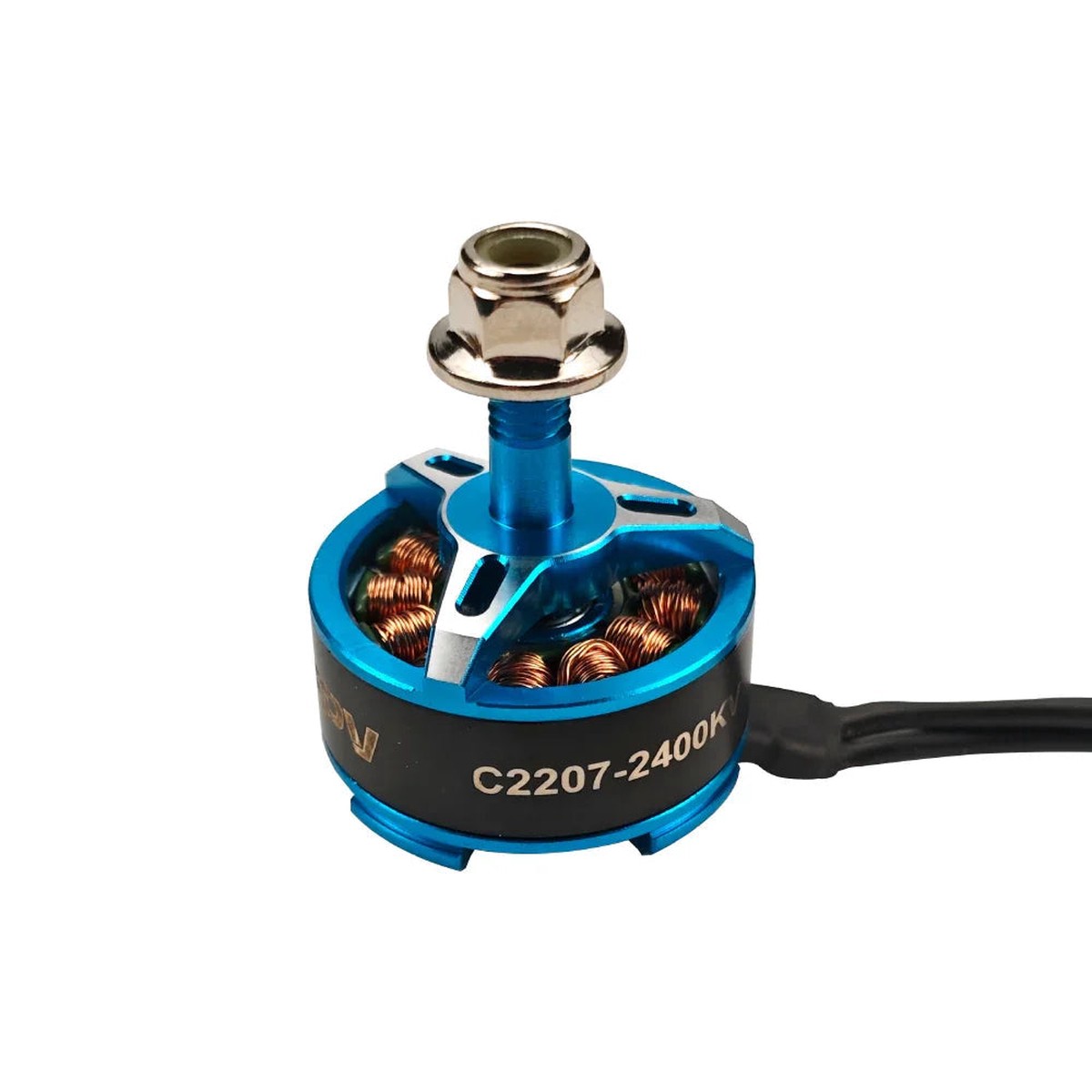

DarwinFPV 2207 2400KV Brushless Motor for FPV Drone, 12N14P, 3-4S, 31.9A (60s), 765W (60s)

DarwinFPV 2207 2400KV Brushless Motor for FPV Drone, 12N14P, 3-4S, 31.9A (60s), 765W (60s)

DarwinFPV 2207 2400KV Brushless Motor for FPV Drone, 12N14P, 3-4S, 31.9A (60s), 765W (60s)

Original price was: $77.79.Current price is: $38.90.
  • SKU:ELAC22173209055
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The DarwinFPV 2207 2400KV brushless motor is a 22x7mm stator FPV drone motor designed for 34S LiPo setups, balancing efficiency and power for multirotor builds.

Key Features

  • 2400KV rating for responsive throttle on 34S LiPo
  • 12N14P configuration
  • 3mm shaft diameter
  • Rated 60s maximum current and power specifications provided

Specifications

Model 2207
KV 2400
Configuration 12N14P
Stator diameter 22mm
Stator length 7mm
Shaft diameter 3mm
Motor dimension (Dia. x Len) Phi27.7 x 19.7mm
Weight 36.4g
Idle current (10) @ 10V <= 0.81A
No. of cells (LiPo) 3-4S
Internal resistance 37.2mOhm
Max current (60s) 31.9A
Max continuous power (60s) 765W

Applications

  • FPV quadcopter and multirotor builds using 34S LiPo
  • Replacement motor for compatible 2207-size FPV drone frames

For compatibility checks (ESC, prop, and frame fitment) or bulk orders, contact support at support@ or visit https:///.
