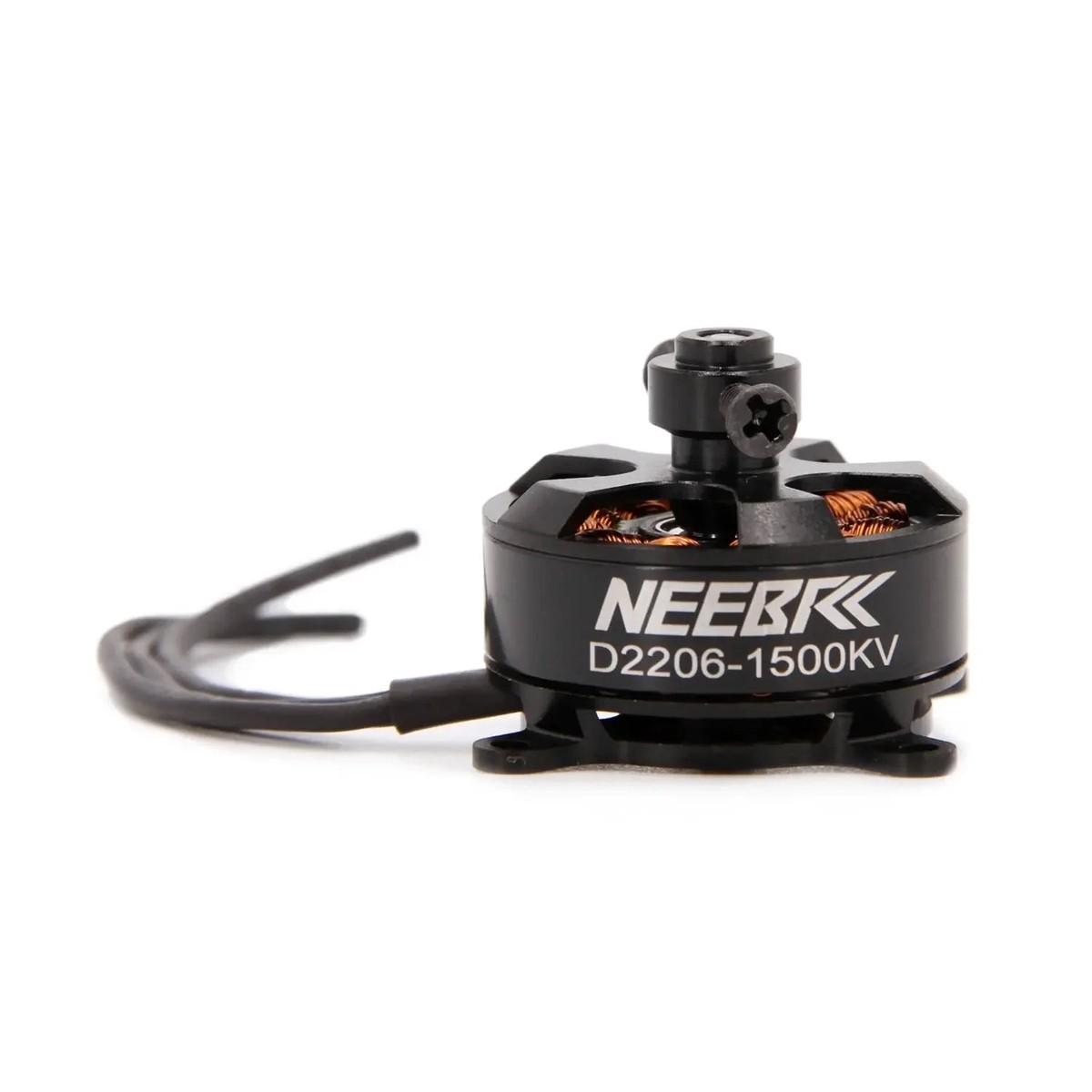

D2206 1500KV Brushless Motor for 23S RC Fixed Wing Airplane, Quadcopter, UAV

The D2206 1500KV Brushless Motor is engineered for high-performance RC applications, offering an excellent balance of power, durability, and lightweight construction. Whether you’re flying a fixed-wing aircraft or a quadcopter, this motor delivers smooth, stable, and efficient thrust.

Built with Japanese NMB bearings, Kawasaki stator steel, and oxygen-free copper wire, this motor ensures long-term reliability and optimal performance. The CNC-machined aluminum casing and N40UH high-temperature magnets provide superior heat resistance, making it ideal for demanding 23S LiPo setups.

Perfect for FPV drones, fixed-wing airplanes, and multi-rotor UAVs, the D2206 motor is your go-to option for a powerful and responsive flight experience.

Key Features

• High-quality Japanese NMB ball bearings

• Oxygen-free copper wires and Kawasaki stator steel

• CNC-machined aluminum case for enhanced durability

• N40UH magnets and silicone wire leads for heat resistance

• Optimized for fixed-wing aircraft, quadcopters, and multicopters

• Lightweight design with high RPM output

Specifications

• Model: D2206 1500KV

• KV Rating: 1500KV (RPM/Volt)

• Battery Compatibility: 2S3S LiPo

• Suggested Propellers: 1047, 9050, 8040

• Motor Length: 22.4mm

• Motor Diameter: 27mm

• Shaft Diameter: 5.5mm

• Weight: 25g

Package Includes

• 1 D2206 1500KV Brushless Motor

• 1 Mounting Ring

Package Size: 80 40 41 mm
Package Weight: 33g

D2206 1500KV brushless motor for RC fixed-wing, quadcopter, UAV. Dimensions: 31.5 x 455 mm. Performance data includes KV (rpm/V), voltage (V), propeller compatibility, load current (A), pull (g), power (W), efficiency (g/W), and recommended LiPo cells. Weights approximately 25 grams. Supports 2-3S LiPo for 1500KV and 1-2S for 1900KV. Detailed specs cover various voltages and props, ensuring optimal performance for diverse applications. Ideal for hobbyists and professionals in RC aviation.
