CCRC S2807 1300KV Brushless Motor 46S for 7 Inch 8 Inch Long Range FPV Freestyle Drones and Quadcopter DIY Builds

The CCRC S2807 1300KV brushless motor is built for serious long-range FPV pilots who demand consistent performance, high thrust, and reliable cooling under high loads. Designed for 78 inch propeller setups on 46S LiPo batteries, this motor features a robust construction with high-temperature NMB bearings, a 5mm steel shaft, and a durable 12N14P stator layout. Ideal for freestyle and cruising, it pushes over 2kg of thrust with smooth and stable RPM delivery.

Key Features

• High-efficiency 2807 stator optimized for 78 inch propellers

• Powerful 1300KV rating for 4S to 6S LiPo setups

• Kawasaki silicon steel core with precision NMB bearings

• Hollow 5mm steel shaft for strength and weight balance

• Fixed M3 mounting with 19mm spacing

• Excellent thermal performance with max operating temps under 61C

Specifications

Performance (6S LiPo Thrust Test with GF70353 Props)

Application

• 78 inch long-range quadcopters

• Cinematic or LR builds for cruising and mountain diving

• FPV freestyle drones requiring strong mid-range thrust

• Compatible with GF7035, GF7042, and similar 3-blade props

Package Includes

• 1 CCRC S2807 1300KV Brushless Motor

• 4 M38 Mounting Screws

• 1 M5 Lock Nut

Sunhey S2807 1300KV brushless motor by MaoMing XinXi Technology Co., Ltd. New 7-8 inch FPV motor for film production with Sunhey series parameters.

CCRC S2807 1300KV motor: 55.4g, 33.6x20mm, 0.069, 18AWG 220mm wire, 12N14P poles, 4-6s voltage, 1.2A no-load, 37.9A max current, 907.6W power, 5mm shaft, 19mm(M3) holes, 2036g tensile force. Reliable and safe design.

N52H strong magnet, NSK 693 bearing, and aluminum 6065 bell. Perfect for 7-8 inch FPV drones with 6S battery and 40-50A ESC. Achieves maximum tensile force up to 2KG. Excellent performance and durability.

CCRC S2807 1300KV Brushless Motor: Strong, efficient (907.6W, 2036g), high temperature resistance with copper wire, rapid heat dissipation, 6061-T6 aluminum for durability over HV90 hardness.

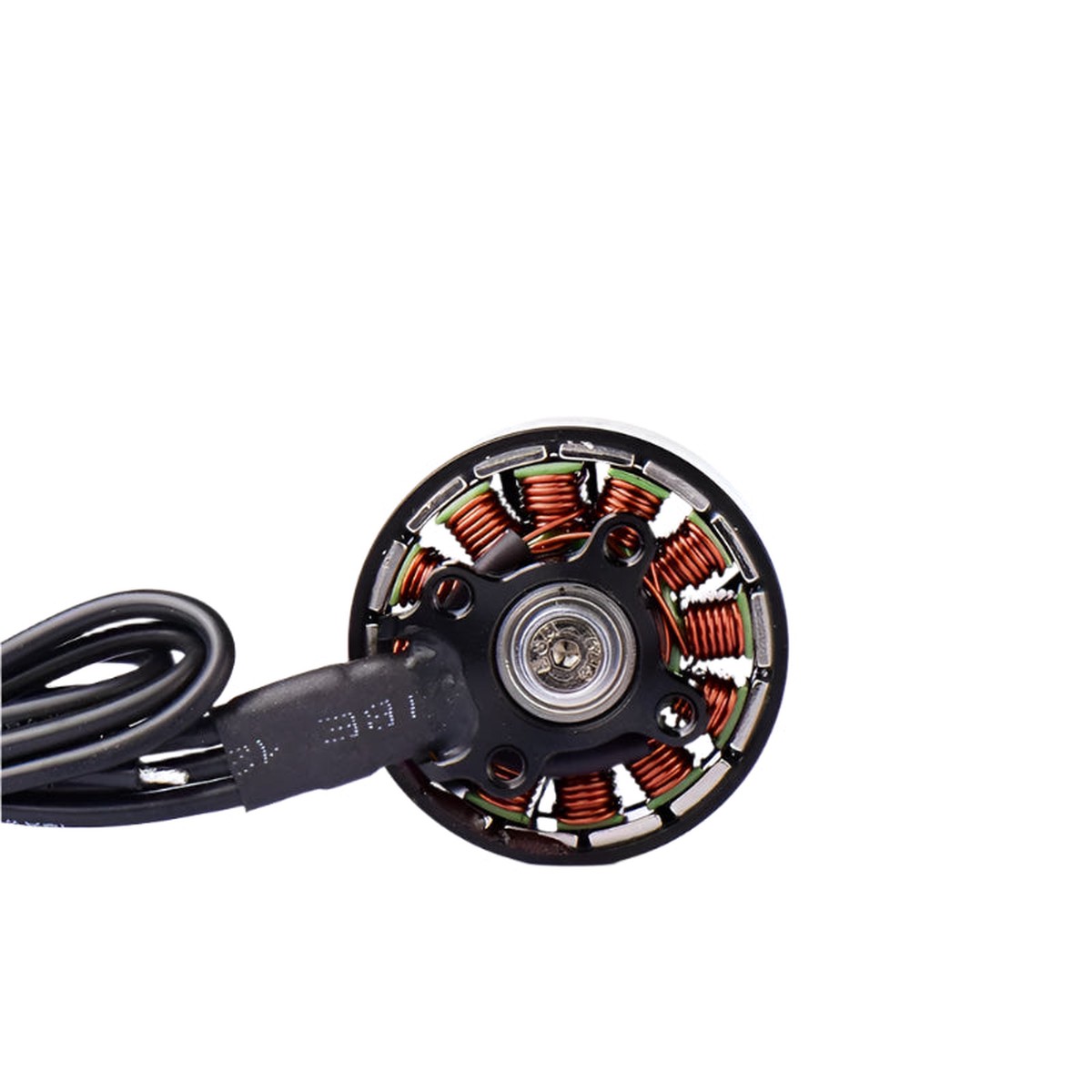

CCRC S2807 1300KV Brushless Motor, black with coiled wires, made in China. Real-time photo displayed.

CCRC S2807 1300KV motor with M3x8 screws and M5 nut. Test data includes volts, throttle, amps, watts, thrust, speed, efficiency, and operating temperature for various propellers.
