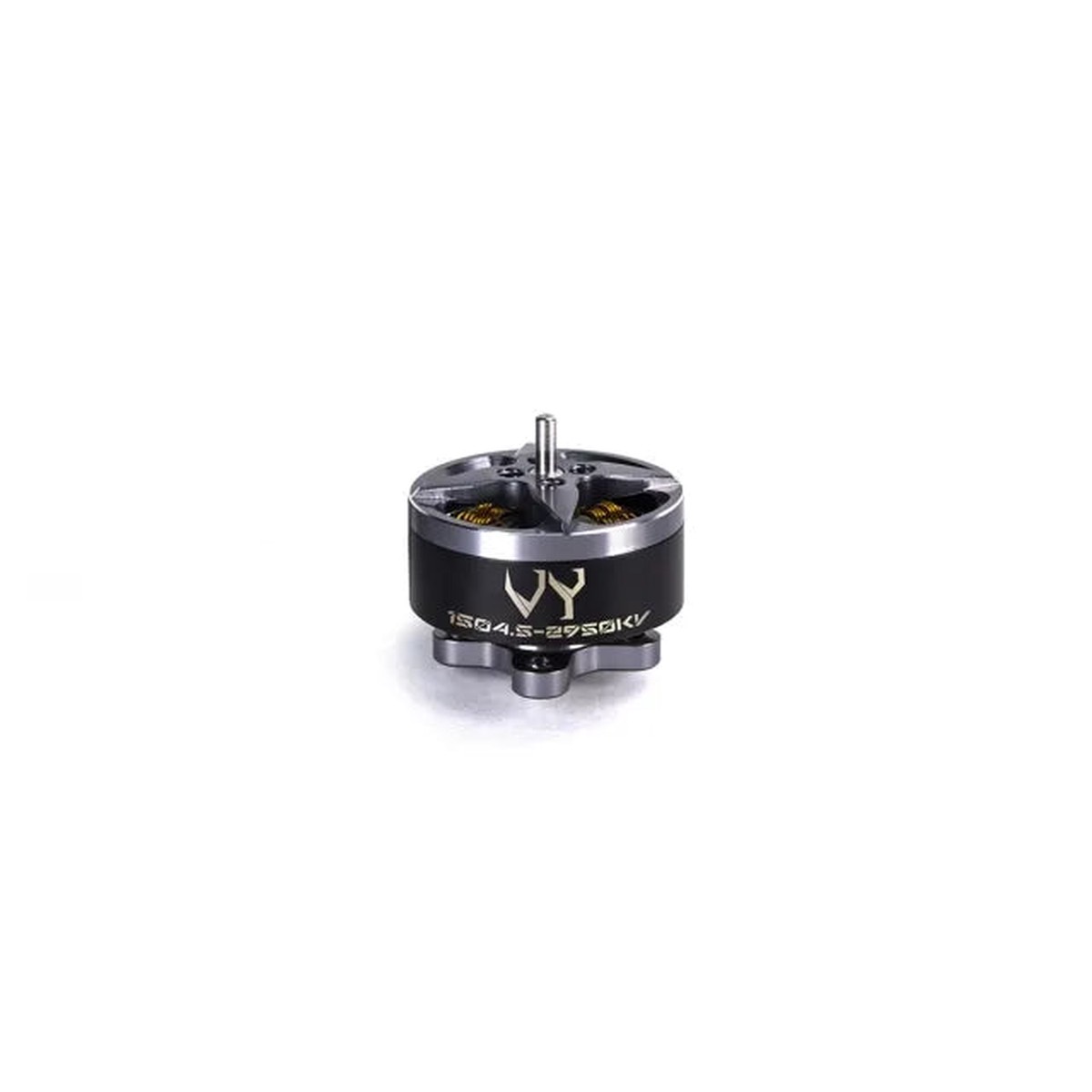

BrotherHobby VY 1504.5 Motor (CW) 2650KV(4S)/2950KV(6S)/3950KV(4S) FPV Drone Motor

SpecificationsKV:2650KV(4S)/2950KV(6S)/3950KV(4S)Configuration:12N14PWire AWG:24AWG with 160mm LengthNo.of Cells(Lipo):3-4SBase casing:Al 7075Bell cap:Al 7075Bearings:Japanese NSK 5X2X2.5mmStator:0.15mm Nippon stell silicon steelBolt Pattern:M2 (12X12mm)Weight:12g with 160mm Length

Product Specifications:* KV Rating: 3950* Thrust RPM: 48,482 rpm* Thrust Efficiency: 2.15 grams-force per watt (gf/W)* Maximum Current: 11.9 amps* Thrust-to-Weight Input Power: 232.14 watts* Thrust-to-Weight Ratio: 285.6 watts* Recommended ESC: 6S, 15A, 61mm Propeller: GF 5125, 56mm

This drone electric motor features Japanese NSK bearings for silky-smooth operation, allowing for free and quiet flight. The aluminum alloy construction has a hard anodized coating, which provides a durable and resistant surface that resists scratching and wear without leaving any visible marks.

This motor features a unique combination of components, including a high-purity electrolytic silver wire profile from DuPont 260C, as well as an ultrathin N52H rare earth magnet made from non-oriented silicon steel.

Specifications:* KV Rating: 2650kV (4S), 2950kV (6S)* Bell cap material: Aluminum alloy 7075* Configuration: 12N14P design* Bearings: Japanese NSK, 5mm x 2mm x 2.5mm in size* Wire:+ Gauge: AWG 24+ Length: 160mm* Stator: Nippon steel silicon steel, 0.1mm thick* Magnet: NSZH arc magnets used* Bolt pattern: M2 (1mm x 1mm)* Copper wire material: Missile-grade material* Weight: 12g with a length of 16cm

BrotherHobby VY 1504.5-2650KV Motor Specifications:* Dimensions: 19.2mm x 19.5mm* Battery Configuration: 4S Lipo (Lithium-ion Polymer)* Magnet Type: NS2H* Propeller: Sine wave ESC (Electronic Speed Controller) compatible* Internal Resistance: 278.90 milliohms (m)* Idle Current at 5V: 0.27 amps (A)* Maximum Power Output: 232.14 watts (W)* Maximum Current Draw: 11.9 amps (A)

Product Information: BrotherHobby VY 1504.5 Motor (CW)* Drawing Number: 150451Y2020070202* Dimensions: 19.2mm x 19.5mm (p5)* Weight Including Cable: 11.99g* Motor Specifications:+ Number of Cells (Lipo): 6S+ Magnet Type: N52H+ Propeller: 3-inch ESC, compatible with 6S configuration+ Internal Resistance: 235.00 milliohms (m)+ Idle Current at 5V: 0.41 amps (A)+ Maximum Power Output: 285.80 watts (W)+ Maximum Current Draw: 11.90 amps (A)* Additional Features:+ Copper magnet wire, 260mm in length

Product Information: BrotherHobby VY 1504.5 Motor (Counter-Wound)* Drawing Number: 150451Y2020070202* Dimensions: 19.2mm x 19.5mm (p. 5)* Weight Including Cable: 11.99 grams* Motor Specifications:+ Number of Cells (Lipo): 6S+ Magnet Type: N52H+ Propeller: 3-inch ESC, compatible with 6S configuration+ Internal Resistance: 235.00 milliohms+ Idle Current at 5V: 0.41 amps+ Maximum Power Output: 285.80 watts+ Maximum Current Draw: 11.90 amps* Additional Features:+ Copper magnet wire, 260mm in length

Technical Specifications: BrotherHobby VY 1504.5 Motor (Counter-Wound)* Drawing Number: 150451Y2020070203* Weight Including Cable: 12.07 grams* Dimensions: 19.2mm x 19.5mm* Cell Count: 4S* Magnet Type: N52H* Propeller: 3-inch ESC, compatible with 4S configuration* Internal Resistance: 139.74 milliohms (m)* Idle Current at 5V: 0.67 amps (A)* Maximum Power Output: 211.20 watts (W)* Maximum Current Draw: 13.20 amps (A)Additional Features:* Copper magnet wire, [not specified]Note that I corrected the following errors:* Added commas to separate items in lists* Changed
