Name: BrotherHobby SE 2807 1300KV CW Brushless Motor for 6S, 12N14P, M5 Thread, 48g, 19x19mm Mount
SKU: A2380048002
Availability: InStock

Description
Reviews (0)

Overview

BrotherHobby SE 2807 1300KV Motor (CW) is a brushless motor designed for 6S setups, featuring a 12N14P configuration, 7075 aluminum casing/bell, and an M5 prop adapter shaft thread. Bench test data is provided for an HQ 7.0×3.5×3 propeller.

Key Features

KV rating: 1300KV
Configuration: 12N14P
Base casing / bell cap: Al 7075
Shaft material: SUS420 (heat-treated steel shaft noted)
Stator: 0.2mm Kawasaki silicon steel
Rotor / magnet: N52H (arc magnets noted)
Bearings: Japanese NMB 12 x 6 x 4
Mounting: M3 (19 x 19mm), 4 x M3
Wire: 18# (20cm / 200mm length)

For compatibility questions (props, ESC sizing, mounting), contact [email protected] or visit https://rcdrone.top/.

Specifications

Model	SE 2807
KV	1300KV
Rotation	CW
No. of Cells (LiPo)	6S
Configuration	12N14P
Base casing	Al 7075
Bell cap	Al 7075
Stator material	0.2mm Kawasaki silicon steel
Stator dimension	28.00 mm
Stator height	7 mm
Motor dimension	33.2 – 33.35 mm
Bolt pattern	M3 (19 x 19mm)
Prop adapter shaft thread	M5
Shaft	SUS420
Bearings	Japanese NMB 12 x 6 x 4
Rotor / magnet	N52H (arc magnets)
Wire AWG	18# 20cm length (18# 200mm length)
Weight	48g
Weight including cable	48.00 g
Internal resistance	80.00 m
Idle current @ 10V	1.02A / 10V
Max power	1000.14 W
Max current	42.20 A
Dynamic balance requirement standards	3mg
Propeller (test)	7 inch (HQ 7.0×3.5×3)
ESC (spec sheet)	6S 50A
Insulation resistance	0.5M
Coil test	PASS
Max pull force (bench test)	2.5kg+ (Thrust: 2538 g)

Drawing dimensions (as labeled)

19
M5
4 x M3
33.35
28.10
14
8
33.20

Prop test report (HQ 7.0×3.5×3, 6S)

Throttle (%)	Voltage (V)	Current (A)	RPM	Thrust (gf)	Input Power (W)	Thrust efficiency (G/W)
30	24.00	3.00	8569	407.00	72.00	5.65
40	24.00	5.20	10635	593.00	124.80	4.75
50	24.00	9.00	12323	892.00	216.00	4.13
60	24.00	13.60	15062	1164.00	326.40	3.57
70	23.90	19.20	16816	1466.00	458.88	3.19
80	23.90	27.10	19185	1932.00	647.69	2.98
90	23.80	36.00	20539	2301.00	856.80	2.69
100	23.70	42.20	21523	2538.00	1000.14	2.54

Temperature note (from test sheet): motor inside copper wire temperature running 2 min at 100% throttle is 98.5C (ambient temperature is 26C). Test base on bench for reference only.

Whats Included

2807 motor x1
M3*8 screw x4
M5 flange nut x1

Applications

6S multirotor builds using 7-inch propellers (based on the provided prop test setup)

Details

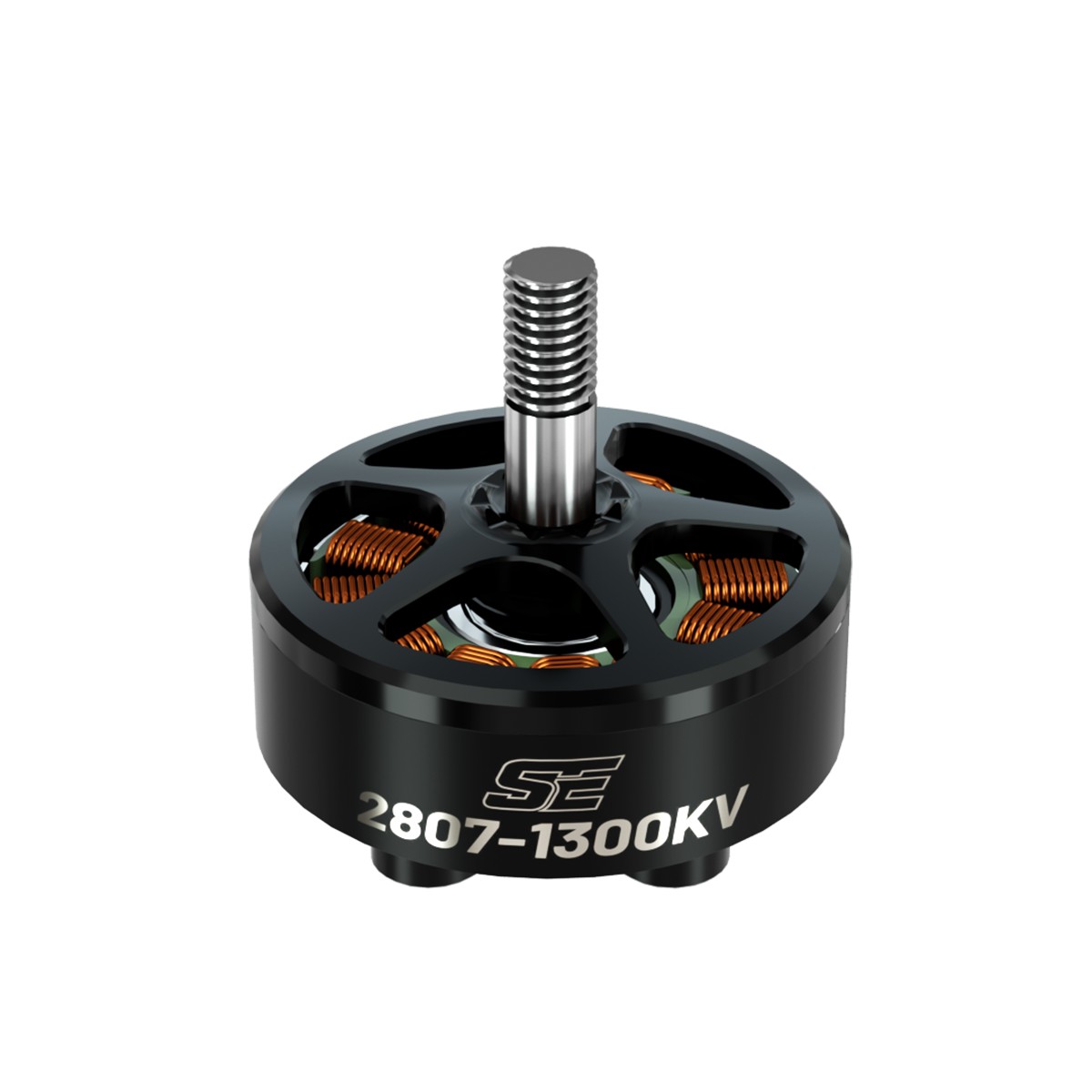

The BrotherHobby SE 2807 1300KV CW brushless motor features a compact black can with a threaded prop shaft for straightforward prop mounting.

BrotherHobby SE 2807 1300KV brushless motor specs list 48.0g weight and up to 2538g thrust with an HQ 7.0×3.5×3 prop at 23.7V.

The BrotherHobby SE 2807 1300KV CW brushless motor is designed to pair well with 7-inch prop setups for fast, responsive flight.

The SE 2807 1300KV motor uses a SUS420 steel shaft, 7075 aluminum caps, N52H magnets, and a high-fill stator with 10AWG wire for a durable build.

BrotherHobby SE 2807 motor hardware includes four M3x8 screws and a flange nut for a straightforward install.

BrotherHobby SE 2807 1300KV motor specs include a 4mm shaft and a 33.2mm motor diameter, along with 6S test data for a 7-inch prop.
