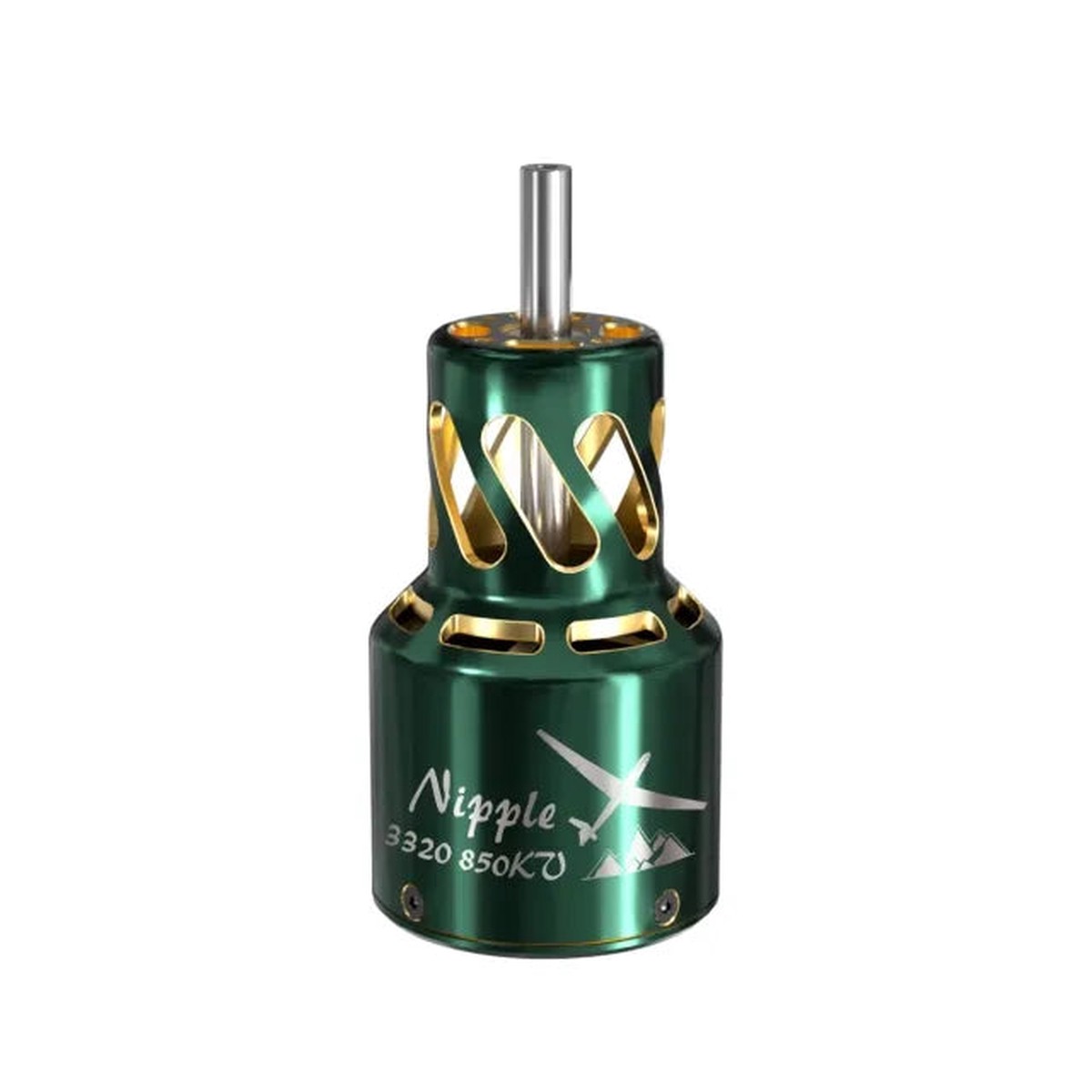

BrotherHobby Nipple 3320 610KV/850KV Glider motor

SpecificationsKV:610KV / 850KVStator:0.2mm Nippon SteelShaft:SUS 420Bolt Pattern:M319X19mmRotor:N48SHWire AWG:16# 300mmBase casing:Al 7075Configuration:12N14PNo.of Cells(Lipo):4SBearings:NMB 12X6X4Weight:196gBell cap:Ai 7075

Nipple Glider drone brushless motor 3320 850k7 Small diameter; high power and high efficiency: VN Suitable for small diameter glider to reduce wind resistance: Fast climb speed and long idle time: FSj Mini Hotliner aircralt suitable for this type of competition type of glider

Brother Hobby’s 3320 Prop Test Report: KV Propeller, ESC 850KV; Folding 15×7.5×2 design; Specifications: Weight (g) – 196; Max Current (A) – 73.2; Max Power (W) – 1024.8; Magnet Throttle (%) – 100%; Thrust (gf) – 4645.

The BrotherHobby Nipple 3320 610KV/850KV Glider motor features an innovative heat dissipation structure design that enables strong power output during flight. Additionally, this motor boasts high efficiency and low loss rates, making it an excellent choice for glider enthusiasts.

Enjoy a smoother flying experience with improved stability and control, thanks to the BrotherHobby Nipple 3320 610KV/850KV Glider motor’s exceptional performance, offering a balanced and responsive flight experience.

Experience added durability and resistance to shock with the BrotherHobby Nipple 3320 610KV/850KV Glider motor’s robust design features, including four-point bearing support distribution and a one-piece steel shaft construction. This creates a strong foundation for smooth landings and minimizes the risk of damage from impact.

The BrotherHobby Nipple 3320 610KV/850KV Glider motor boasts a unique, hot dog-shaped protective shell design, featuring an outer rotor motor configuration. Moreover, its rear-leading wire design makes it well-suited for installation at the nose of a remote-controlled glider.

The BrotherHobby Nipple 3320 610KV/850KV Glider motor features a robust four-bearing design, paired with an N48SH arc magnet and an Aluminum alloy base. The motor is housed in a durable Aluminum case, complete with TUI-grade enameled wiring for added reliability.

The BrotherHobby Nipple 3320 Glider motor features an integrated external rotation design, allowing for high torque performance and easy installation. The rear-located wire makes it simple to set up, with dimensions: 89.60mm x 42.40mm x 19.15mm; mounting holes: 4xM3, spaced at 29.58mm.

The BrotherHobby Nipple 3320-4S glider motor features a high-performance specification: 16.8V, 43.7A, 610KV, with a folding propeller design measuring 15×7.5×2 (inches/millimeters). The motor meets rigorous standards for maximum current (A) at 45.10, and has passed hipot testing (@SOOV AC PASS), as well as dynamic balance and impulse winding tests.

The BrotherHobby Nipple 3320-4S glider motor boasts an impressive specification: 16.8V, 70A, 850KV, with a folding propeller design measuring 13x8x2 (inches/millimeters) made from nylon glass fiber. The motor meets demanding standards for maximum current (A) at 70.70, and has passed rigorous testing, including hipot testing (@SOOV AC PASS), dynamic balance checks, and impulse winding tests.

BrotherHobby Nipple 3320-4S glider motor features a high-performance specification: 16.8V, 73.4A, 850KV, with a folding propeller design measuring 14x7x2 (inches/millimeters) made from nylon glass fiber. The motor meets demanding standards for maximum current (A) at 72.62, and has passed rigorous testing, including hipot testing (@SOOV AC PASS), dynamic balance checks, and impulse winding tests.

BrotherHobby Nipple 3320-4S glider motor features a high-performance specification: 16.8V, 73.2A, 850KV, with a folding propeller design measuring 15×7.5×2 (inches/millimeters) made from nylon glass fiber. The motor meets demanding standards for maximum current (A) at 73.20, and has passed rigorous testing, including hipot testing (@SOOV AC PASS), dynamic balance checks, and impulse winding tests.
