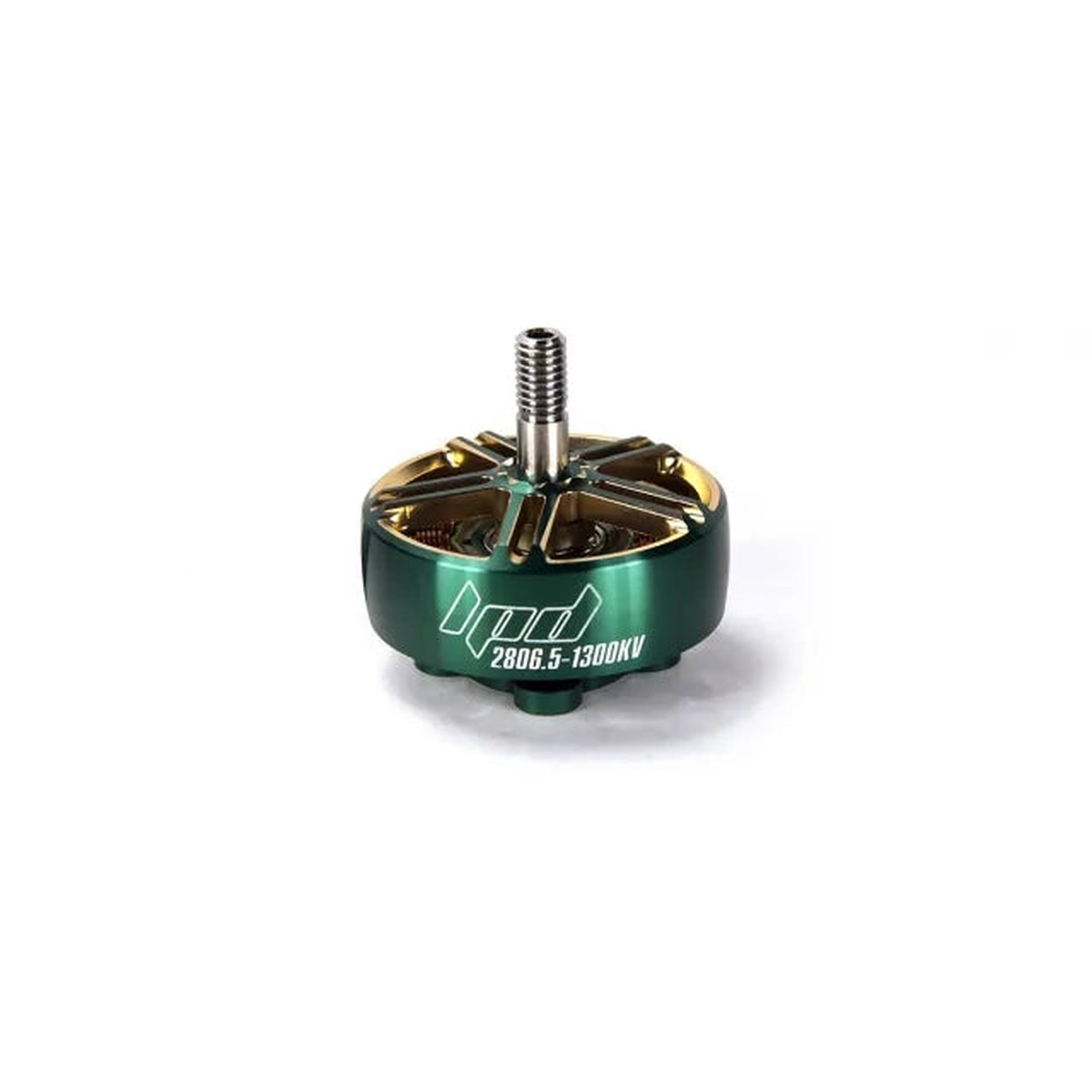

BrotherHobby LPD 2806.5 Motor 1300KV/1700KV FPV Drone Motor

SpecificationsKV:1300KV/1700KVConfiguration:12N14PNo.of Cells(Lipo):4-6SRotor:N52H arc magnetsStator:0.2mm Kawasaki silicon steelShaft:Titanium Alloy hollow shaftBearings:Japanese NMB 12X6X4Wire AWG:18AWG 20cm lengthBell cap:Al 7075Base casing:Al 7075Prop Adapter Shaft Thread:M5Bolt Pattern:M3(19X19mm)

The Brother Hobby LPD 2806.5 motor is designed for long-range and freestyle flight applications. Key specifications include:* KV options: 1300 or 1700* Thrust: 21,691 RPM* Thrust efficiency: 2.08 g-force per watt (gf/W)* Weight: 2520 grams (max current: 44.4A) or 2440 grams (max current: 49.2A)* Input power: 1056.72W (thrust-weight ratio) or 1170.96W* Recommended ESC setup: 6S

The LPD 2806.5 motor features a robust construction with aerospace-grade 7075 aluminum alloy and a hard anodizing cover that resists scratching without leaving any marks. The motor’s interior boasts Japanese NMB bearings, providing silky-smooth running performance.

The LPD 2806.5 motor features Berserk Power’s Frozen Heart Import technology, utilizing 0.15mm ultra-thin non-oriented N52H high-performance rare earth arc silicon steel magnets. This design ensures low eddy current losses, a uniform air gap, linear torque, and speed characteristics that promote smooth operation with no cogging.

Specifications:* KV options: 1300KV or 1700KV* Wire gauge: 18AWG (American Wire Gauge)* Configuration: 12N14P (number of turns and pole count)* Base casing material: Aluminum alloy (7075-T6)* Number of cells (Lipo): 4-6S* Bell cap material: Aluminum alloy (7075-T6)* Magnet type: NS2H arc magnets* Bolt pattern: M3 (19mm x 19mm)* Stator thickness: 0.2mm Kawasaki silicon steel* Weight: approximately 47.3g with ZOCM SR wires* Bearings: Japanese NMB bearings
