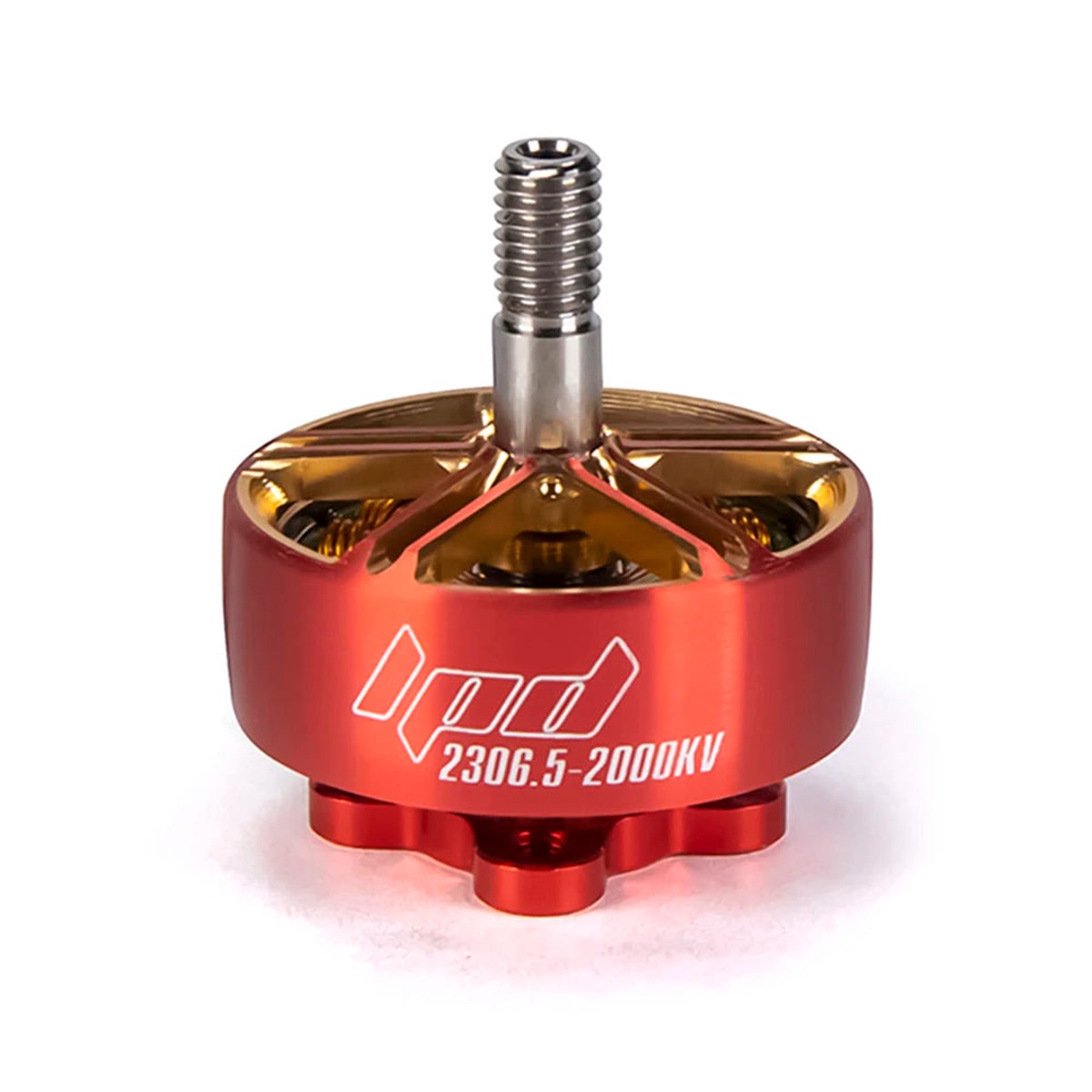

Name: BrotherHobby LPD 2306.5 2000KV/2450KV/2650KV Brushless Motor for 5-6S FPV Freestyle Racing Drones
SKU: WKA86610369981
Availability: InStock

Description
Reviews (0)

Overview
The BrotherHobby LPD 2306.5 Brushless Motor is engineered for high-performance FPV freestyle and long-range racing drones. With powerful 2000KV, 2450KV, and 2650KV variants, this motor offers exceptional thrust, high efficiency, and reliable construction for both beginners and pro pilots. It’s the perfect upgrade for 5-6 inch FPV builds, delivering unmatched control, smooth throttle response, and long-lasting durability.

Specifications

Parameter	2000KV	2450KV
Max Thrust	2048g	1899g
Input Voltage	6S (23.7V)	5S (19.9V)
Max Current	52.9A	52.7A
Max Power	1253.73W	1048.73W
Efficiency	1.63 g/W	1.81 g/W
Rotor Speed	31735 RPM	29233 RPM
Propeller Tested	HQ 5.1×4.1×3	HQ 5.1×4.1×3
ESC Recommendation	55A	55A
Motor Temperature	156.3C	121.5C
Configuration	12N14P	12N14P
Stator Size	2306.5	2306.5
Mounting Holes	M3 (16x16mm)	M3 (16x16mm)
Shaft Diameter	M5	M5
Weight	Approx. 34g	Approx. 34g

Key Features

Unibell Design: CNC 7075 aluminum for increased strength and crash resistance.
High Efficiency: Up to 2048g of thrust at just 1253W for 2000KV.
Precision Windings: High-temperature resistant copper wire with 260C insulation.
N52H Curved Magnets: Ensures high torque output with smooth response.
Durable Bearings: Equipped with Japanese NMB 9x4x4mm bearings for smooth rotation and long life.
Advanced Cooling: Aerodynamic bell cap and stator design reduce motor heat buildup.

Application
Ideal for 5″ to 6″ FPV racing drones, freestyle quads, and fixed-wing builds that demand high torque, aggressive acceleration, and stable flight.

Package Includes

1x BrotherHobby LPD 2306.5 Motor
4x M3 Screws
1x M5 Propeller Nut
