BrotherHobby Avenger 32512 V5 710KV CW Brushless Motor 6S, M5 Shaft, 19x19mm Mount, 107g

Overview

BrotherHobby Avenger 32512 V5 is a brushless motor in the Avenger V5 series. This listing is the 710KV CW (forward rotation) version, designed for 6S LiPo multirotor power systems and compatible with folding propeller setups.

Key Features

• Foldable propeller compatibility for convenient installation and transport
• Maximum pull force (single motor): 4.4kg+
• Ultra-lightweight design: 107g (with 30cm SR wires)
• SUS420 heat-treated steel shaft
• 7075 aluminum caps (hard anodized) and hollow-carved design for weight saving and heat dissipation
• N52H arc magnet design with consistent air gap and stable magnetic circuit
• High precision bearings designed to withstand greater axial load
• TU1 grade enameled wire, high full slot ratio, low internal resistance
• Ultra-thin non-oriented silicon steel sheet for high permeability and low eddy loss

Specifications

Performance Data (from provided test charts)

Mechanical Drawing Dimensions (from provided drawing)

• 46.7
• 18
• 20.5
• 8.2
• 12
• M5
• 5
• 19
• 4-M3
• 38.2
• 6-M3
• 23

Folding Paddle Rotation Diameter (manual measurement; slight deviation possible)

• Folding 9453 Triblade (hole pitch 23mm): rotating diameter 244.8mm
• Folding 1051 Triblade (hole pitch 23mm): rotating diameter 259.1mm
• Folding 1148 Triblade (hole pitch 23mm): rotating diameter 285.3mm
• Folding 1248 Triblade (hole pitch 23mm): rotating diameter 311.1mm
• Folding 1555 Triblade (hole pitch 23mm): rotating diameter 379.7mm
• Folding 1660 Triblade (hole pitch 25mm): rotating diameter 395.1mm
• Folding 1865 Triblade (hole pitch 23mm): rotating diameter 453.9mm

Installation Reference (folding propeller hardware diagram labels)

• 1: external threaded cylindrical groove
• 2: propeller connector
• 3: spacer
• 4: folding propeller
• 5: spacer
• 6: propeller connector
• 7: flange nut

Applications

• 6S multirotor builds using folding propellers
• Aerial filming and shooting platforms requiring compact, foldable propeller setups

Support

For compatibility questions (mounting, prop thread, folding propeller hardware), contact [email protected] or visit https://rcdrone.top/.

Details

Avenger 32512 V5 710KV brushless motors pair with foldable propeller blades for a compact, easy-to-install propulsion setup.

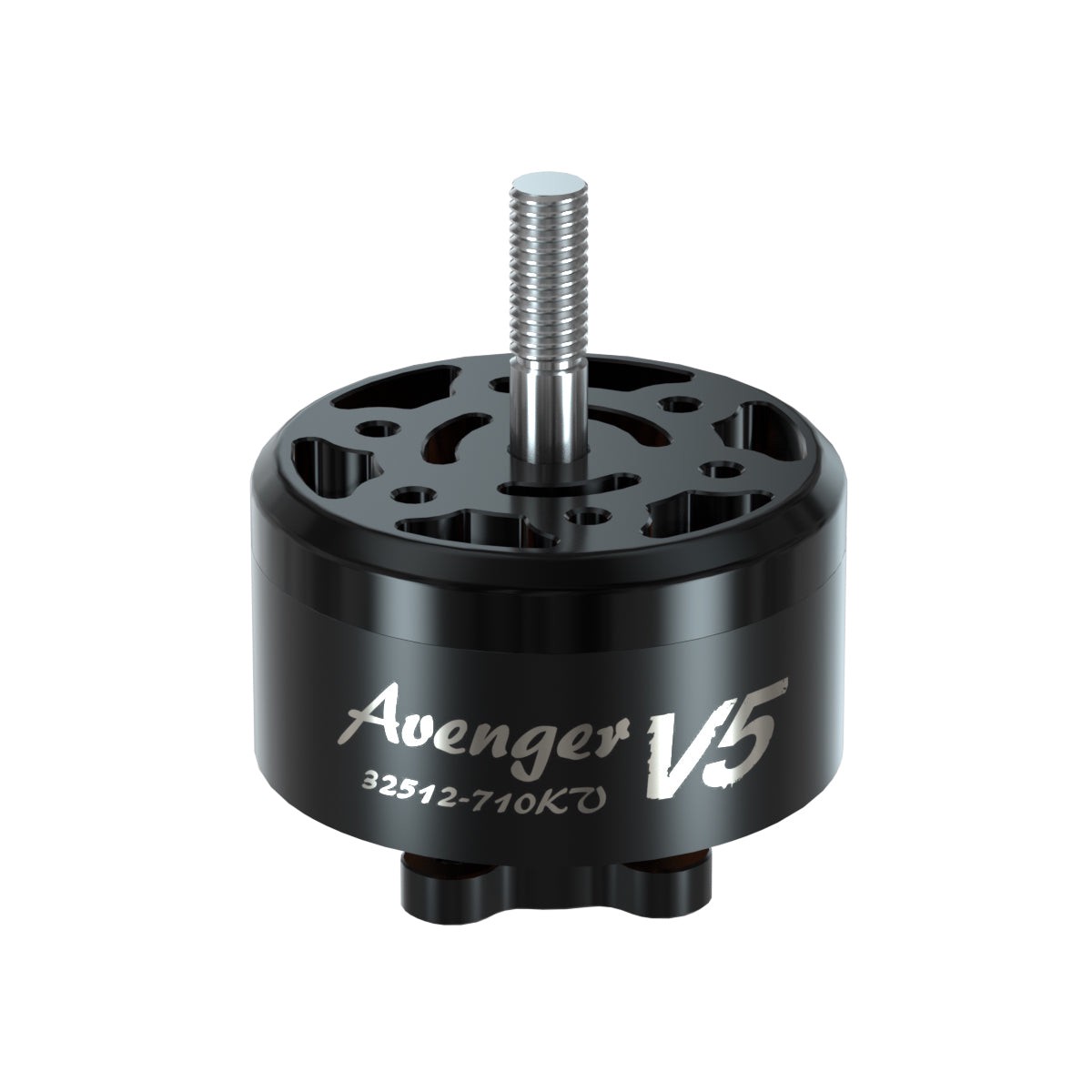

BrotherHobby Avenger V5 brushless motor features an M5 threaded shaft and is labeled 107g with up to 4.4kg maximum pull force.

Avenger V5 32512-710KV test figures list 6S triblade prop results including max thrust, current draw, RPM, power, and efficiency.

The BrotherHobby Avenger V5 32512 710KV motor pairs with folding prop blades for compact setups on multirotor builds.

The Avenger V5 motor uses a SUS420 heat-treated steel shaft, 7075 aluminum caps, N52H magnets, precision bearings, and a silicon steel stator stack.

The Avenger 32512 V5 motor drawing lists key dimensions for fitment, including an M5 shaft and M3 mounting hole patterns.

Folding tri-blade propeller rotation diameters are listed by size to help match clearance and hub pitch during setup.

The Avenger V5 710KV motor is paired with a folding 1148 tri-blade prop setup for a compact, carry-friendly drone build.

Folding triblade prop hardware installs in a clear sequence on the motors threaded shaft using the included screws and washers.

The BrotherHobby Avenger V5 brushless motor features a compact bell design and is shown with a propeller fitted for drone builds.

The Avenger V5 setup uses a folding propeller with a propeller connector, spacers, and a flange nut for secure installation.

The Avenger V5 motor pairs with a reverse (CCW) folding triblade prop set and included hardware for straightforward installation.

The Avenger motor kit includes a CW folding triblade prop and the mounting hardware needed for a straightforward install.

The BrotherHobby Avenger motor kit includes three-blade folding propeller blades, a propeller connector, screws, spacers, a flange nut, and a spring for assembly.

The package includes the brushless motor along with a two-blade folding propeller, connector hardware, screws, spacers, and a flange nut for installation.

BrotherHobby Avenger 32512 V5 specifications list 710KV and include a 25.1V load test table using an 1148 triblade prop for current, RPM, and thrust reference.

The Avenger 32512 V5 documentation includes a dimensional drawing plus a thrust, current, and efficiency table for a GF1051-3 prop on 6S.
