BrotherHobby Avenger 2816 V5 760KV CW Brushless Motor, 6S 12N14P, M5 Thread, 99g, M3 19X19mm

Overview

BrotherHobby Avenger 2816 V5 760KV Motor (CW) is a 6S brushless motor designed for setups using folding propellers. The Avenger V5 series is also listed with a 760KV/770KV KV option, and uses an M5 prop adapter shaft thread with a 12N14P configuration.

Key Features

• Foldable propeller mounting concept for easier installation and carrying
• SUS420 heat-treated steel shaft
• 7075 aluminum caps (hard anodized)
• N52H arc magnets with consistent air gap
• TU1 grade enameled wire
• Ultra-thin non-oriented silicon steel sheet
• High-precision bearings designed to withstand greater axial load

Specifications

Dimensions (Drawing)

Performance Data (Manufacturer Test)

Avenger V5 2816-760KV

• Prop: Folding 1148 Triblade
• ESC: 6S 60A
• Throttle: 100%
• Voltage: 25.2V
• Max current: 57.3A
• Max power: 1444W
• RPM: 11757 RPM
• Max thrust: 4490g (single-motor pull force up to 4.5kg)
• Thrust efficiency: 3.11
• 97C after 100% throttle running 2min (ambient temp. 28C)

Avenger V5 2816-770KV

• Prop: Folding 1051 Triblade
• ESC: 6S 60A
• Throttle: 100%
• Voltage: 25.2V
• Max current: 49.8A
• Max power: 1255W
• RPM: 12398 RPM
• Max thrust: 4028g
• Thrust efficiency: 3.21
• 100.3C after 100% throttle running 2min (ambient temp. 28C)

Folding Propeller Rotation Diameter (Reference)

• Folding 9453 Triblade: hole pitch 23mm; rotating diameter 244.8mm
• Folding 1051 Triblade: hole pitch 23mm; rotating diameter 259.1mm
• Folding 1148 Triblade: hole pitch 23mm; rotating diameter 285.3mm
• Folding 1248 Triblade: hole pitch 23mm; rotating diameter 311.1mm
• Folding 1558 Triblade: hole pitch 23mm; rotating diameter 379.7mm
• Folding 1660 Triblade: hole pitch 23mm; rotating diameter 395.1mm
• Folding 1865 Triblade: hole pitch 23mm; rotating diameter 453.9mm

Whats Included

The manufacturer packing list for folding propeller packages lists the following items (package may vary by prop type):

• Motor
• Folding propeller (two-blade or three-blade)
• Propeller connector
• Screws
• Spacers
• Flange nut
• External thread cylindrical groove
• Spring (listed in the three-blade folding propeller packing list)

Applications

• 6S multirotor builds using folding propellers
• Projects requiring an M5 prop adapter shaft thread and M3 (19X19mm) mounting pattern

For confirmation of the CW/CCW option and whether a two-blade or three-blade folding propeller package is required, contact support at [email protected] or https://rcdrone.top/.

Details

The BrotherHobby Avenger 2816 V5 motor pairs with foldable propellers for easier transport and quick setup.

BrotherHobby Avenger V5 motors are listed at 99g each with a stated single-motor thrust figure up to 4.5kg.

Test results at 25.2V with a 6S 60A ESC list thrust, current, RPM, power, and efficiency for Avenger V5 2816-760KV and 2816-770KV setups.

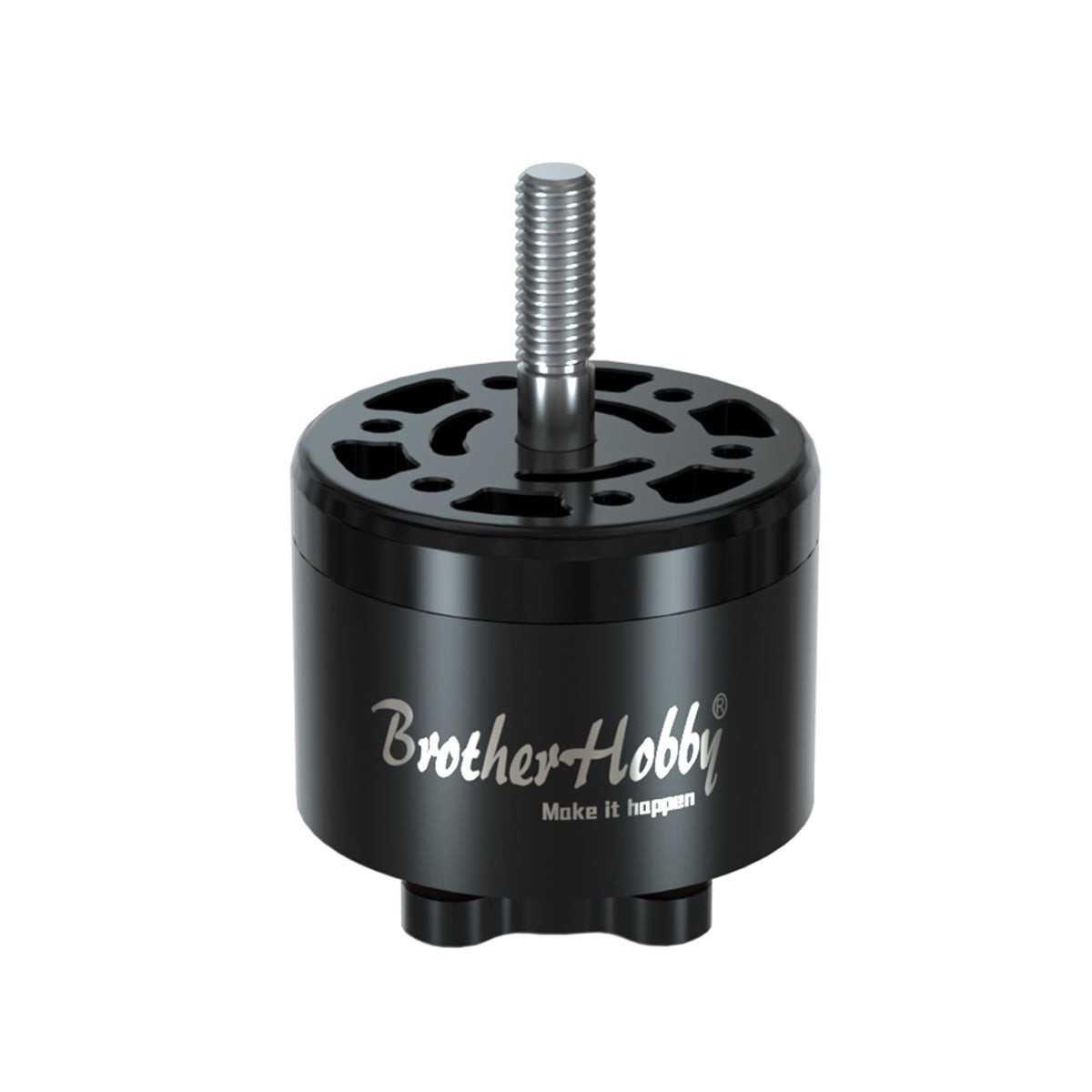

The Avenger V5 760KV brushless motor features a compact black can and a threaded output shaft for straightforward prop mounting.

BrotherHobby Avenger 2816 V5 motor uses a heat-treated steel shaft, N52H magnets, enameled copper windings, and precision bearings for a robust build.

The Avenger 2816 V5 motor drawing details key dimensions plus the M5 threaded shaft and M3 mounting hole pattern for fit checks.

Folding prop rotation diameter measurements (in mm) help you compare clearance across multiple prop size options.

The Avenger 760KV motor pairs with a 148 carbon fiber nylon three-blade folding propeller for efficient lift on multirotor builds.

Folding triblade paddle installation steps show the prop hub and nut order for a secure fit on the motor shaft.

BrotherHobby Avenger V5 2816 brushless motors feature a compact black can design with a top-mounted prop hub for quick prop installation.

The Avenger 2816 motor hardware stack includes a folding propeller, spacers, propeller connector, and flange nut for secure assembly.

The Avenger V5 motor kit includes reverse (CCW) folding triblade props with a shaft adapter and mounting hardware for a complete install.

The BrotherHobby Avenger brushless motor comes with a CW folding triblade prop set and a small assortment of mounting hardware for setup.

The three-blade folding propeller kit includes a motor, folding blades, propeller connector, screws, spacers, a flange nut, threaded groove pins, and a spring.

The two-blade folding propeller kit includes the motor, folding propeller blades, connector, screws, spacers, flange nut, and two grooved shafts.

Avenger 2816 V5 specifications include 755KV, M5 shaft threading, 99g weight, and 25.2V prop test data with an 1148 triblade prop.

BrotherHobby Avenger 2816 V5 770KV motor specs list a 12N14P configuration, 2816 stator, M5 shaft, and 1919mm M3 mounting pattern for fitment.
