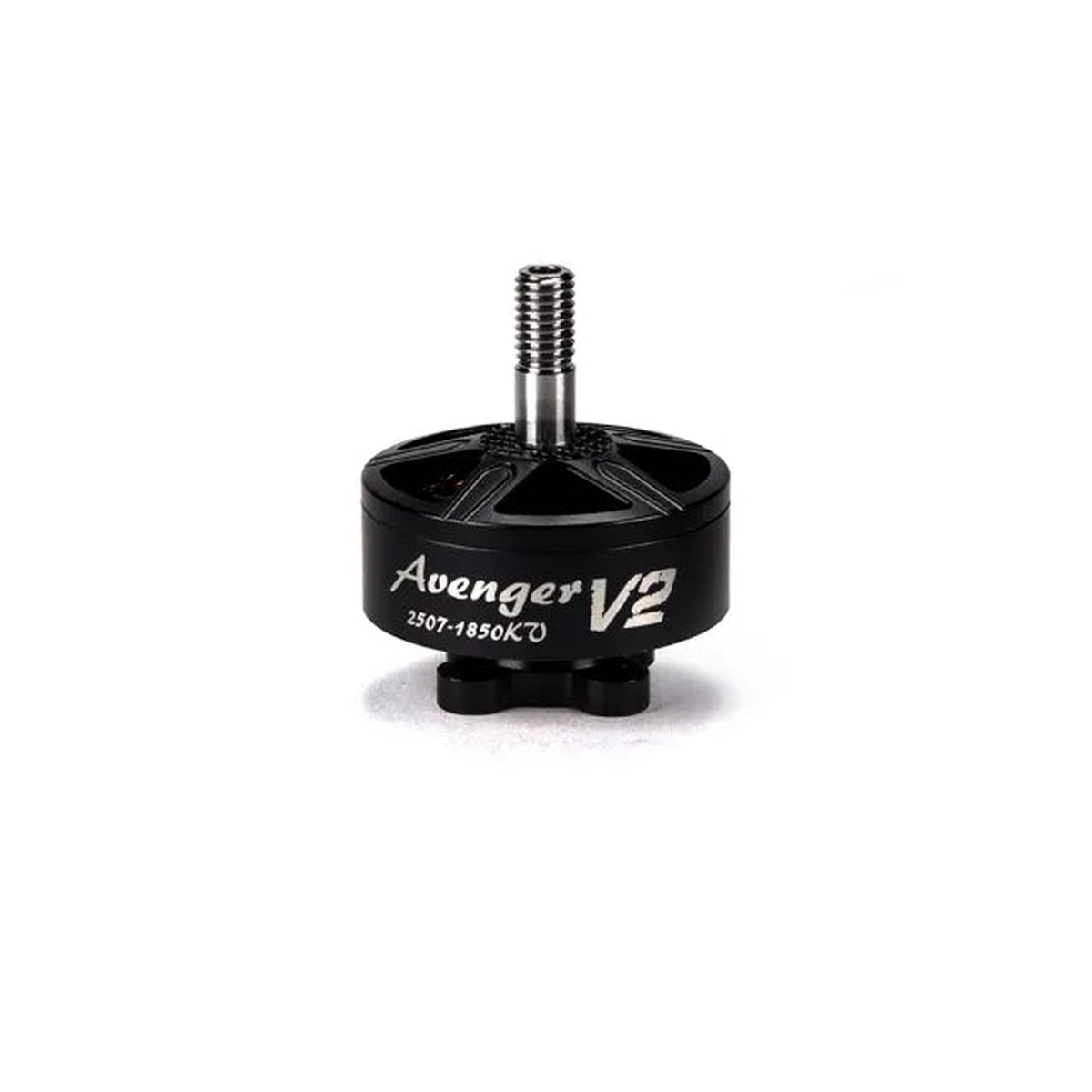

BrotherHobby Avenger 2507 V2 Motor 1200KV/1500KV/1750KV/1850KV FPV Drone Motor

SpecificationsKV:1200KV/1500KV/1750KV/1850KVBase casing:Al 7075Stator:0.15mm Nippon Steel silicon steelConfiguration:12N14PProp Adapter Shaft Thread:M5Shaft:Titanium Alloy hollow shaftNo.of Cells(Lipo):4-6SBolt Pattern:M3 (16mmX16mm)Bearings:NMB 9x4x4Rotor:N52H arc magnetsWeight:40g with 20cm SR wiresWire AWG:18AWG 20cm lengthBell cap:Al 7075

Brother Hobby Avenger V2 Motor: A High-Speed, Ultra-Lightweight Drone Motor with Smooth Performance. Specifications: KV values – 1200KV, 1500KV, 1750KV, or 1850KV; Wire AWG: 18AWG; Length: 20cm; Bell Cap material: Aluminum (7075); Configuration: 12-layer Ni4P winding; Base casing: 45-65mm Adapter Shaft Thread.

Technical Specifications for Brother Hobby Avenger V2 Motor:* Operating Temperature: Inside Copper Wire* Performance at Various Ambient Temperatures:+ 60C: 24.0V, 9.4A, 13345 RPM, 890W, 225.6Wh, 3.95C discharge rate, 1200kV motor speed+ 80C: 23.9V, 21.4A, 17200 RPM, 1530W, 511.46Wh, 2.99C discharge rate, 18466 RPM, and 1780W+ 90C: 23.9V, 28.1A, 19308 RPM, 2020W, 798.26Wh, and 2.53C discharge rate* Note: The ambient temperature is measured at the motor’s inside copper wire.

Technical Specifications for Brother Hobby Avenger V2 Motor (1750kV):

2507K2018112305 Drawing 016 112 030 I84uG Specification KV 1850 Configuration 12N14P Stator Dimension (mm) 25*35 AWG 18# 200mm Length Motor Dimension(mm) Weight Including Cable (g)

2507 HQ5.0*4.8*3 20.0 15.2 22397 820 304.00 270 100C 2200kV Triblade (Ambient 19.9 20.9 25218 1050 415.91 2.52 is 28’C)
