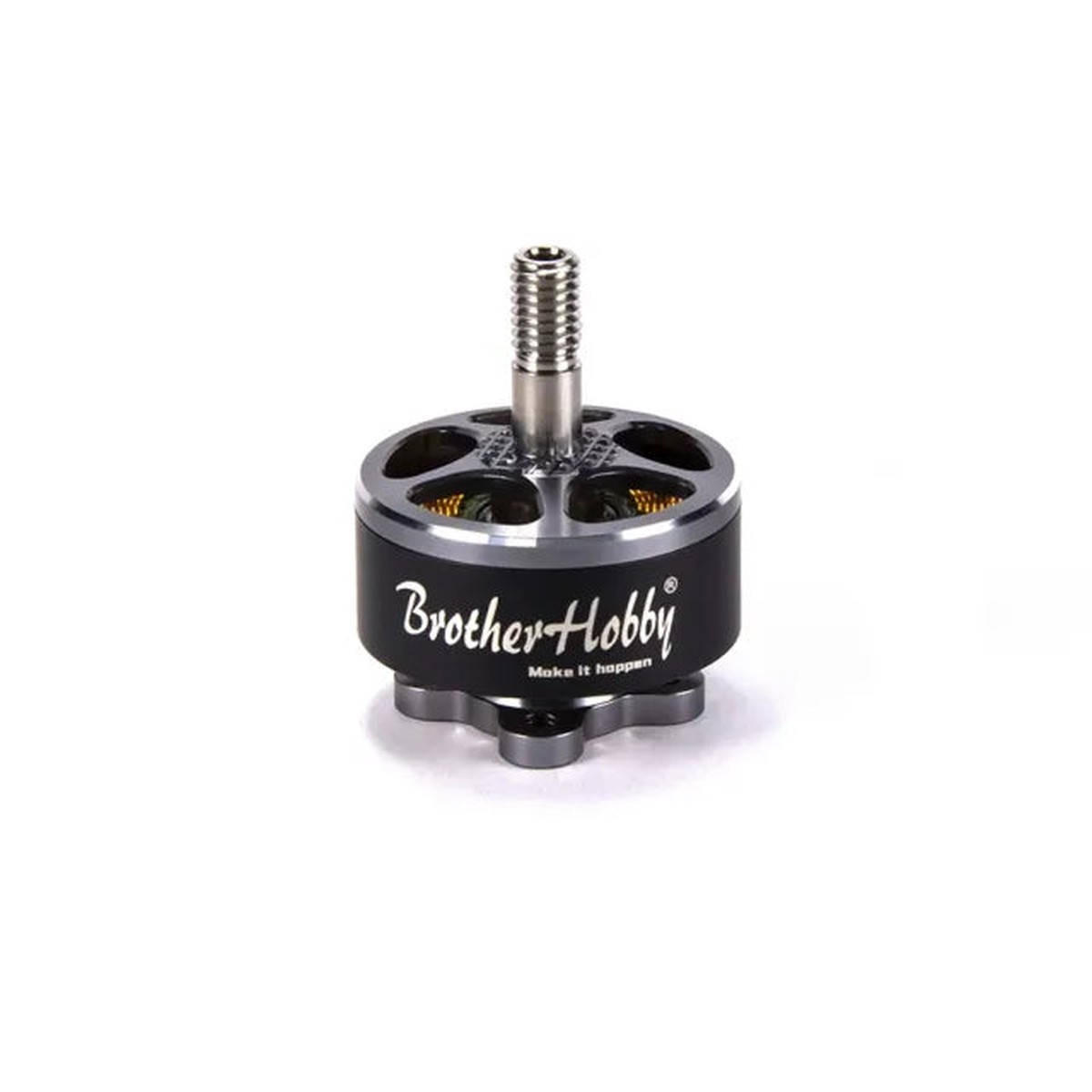

BrotherHobby Avenger 2207.5 V3 Motor(CW) 1750KV/1900KV/2350KV FPV Drone Motor

SpecificationsKV:1750KV/1900KV/2350KVBase casing:Al 7075Stator:0.15mm Nippon Steel silicon steelConfiguration:12N14PProp Adapter Shaft Thread:M5Shaft:Titanium Alloy hollow shaftNo.of Cells(Lipo):5-6SBolt Pattern:M3(16X16mm)Bearings:Japanese NMB 9x4x4mmRotor:N52H arc magnetsWeight:33.6g with 16cm SR wiresWire AWG:20AWG 16cm lengthBell cap:Al 7075

Featuring aerospace-grade 7075 aluminum construction, hard anodizing for added durability, and Japanese NMB bearings for silky smooth performance, this drone electric motor also boasts a heat-treated alloy steel shaft that is wear-proof and can withstand crash impacts without sustaining damage.

The motor’s operating temperature can reach up to 260C, allowing for prolonged flight times without worrying about overheating. Even when running at high throttle levels, the power output remains strong and consistent.

Test Report: Avenger HQ 2207.5-1750KV Motor (Date: March 11, 2020)* Ambient temperature: 23.9C* Maximum temperature reached during testing: 24.5C* Test results:+ 2.1V input: 10481 RPM, 3.71A current draw, 40C temperature+ 4.1V input: 13458 RPM, 3.42A current draw, 90C temperature

Avenger 2207.5 Motor Specifications:* Dimensions: 5.1mm x 4.1mm x 3mm* KV rating: 1900KV* Tri-blade design* Test results:+ Ambient temperature: 23.9C+ Maximum temperature reached during testing: 25C+ Results at different throttle settings:- 24.0V input: 24567 RPM, 2.20A current draw- 34.3V input: 27648 RPM, 1.90A current draw- 41.7V input: 29610 RPM, 1.85A current draw

Avenger 2207.5 Motor Specifications: * Dimensions: 5.1mm x 4.1mm x 3mm* KV rating: 2350KV* Tri-blade design* Test results:+ Ambient temperature: 20.0C+ Maximum temperature reached during testing: 25C+ Results at different throttle settings:- 20.0V input: 23071 RPM, 2.28A current draw- 35.9V input: 26772 RPM, 1.90A current draw
