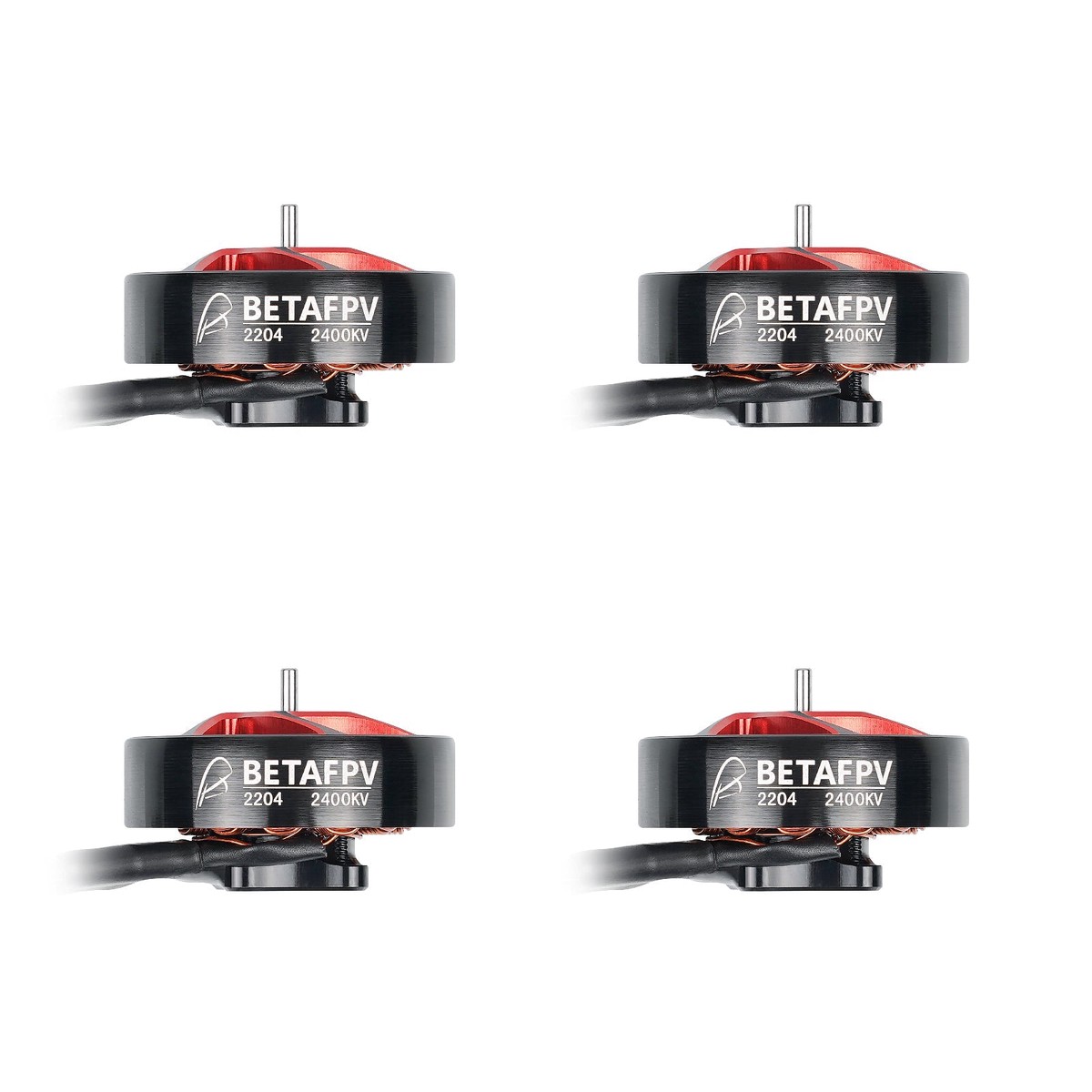

BetaFPV 2204 2400KV Brushless Motor for 3in Ducted Whoop, 4in Drones & Lightweight 5in (4-6S)

BetaFPV 2204 2400KV Brushless Motor for 3in Ducted Whoop, 4in Drones & Lightweight 5in (4-6S)

BetaFPV 2204 2400KV Brushless Motor for 3in Ducted Whoop, 4in Drones & Lightweight 5in (4-6S)

Original price was: $30.89.Current price is: $24.71.
  • SKU:WKA86610369548
  • Category:
  • Free shipping on orders over $40!
  • Secure Payment: Guaranteed safe & secure checkout with encrypted protection.
  • Return within 30 days. Duties & taxes non-refundable.

Overview

The BetaFPV 2204 brushless motor is an enhanced version based on the popular 2004 motor. It is designed for smooth running, strong control, and responsive power delivery on 3″ ducted whoop builds, 4″ drones, and lightweight 5″ setups with low overall AUW.

For build compatibility questions, contact support at https://rcdrone.top/ or email [email protected].

Key Features

  • 2204 size brushless motor with 2400KV (rpm/V) for 4S6S input voltage setups
  • Designed to provide higher torque with smoother output
  • Black-Red color scheme

Specifications

Item 2204 brushless motor
KV (rpm/V) 2400KV
Weight 21 g
Color Black-Red
Shaft phi 1.5 mm
Shaft diameter 1.5 mm (0.06 in)
Shaft length 3.8 mm (0.14 in)
Hole distance 12 mm
Motor mount holes M2
Input voltage 4-6S
Cables 105 mm long, 22AWG cables
Dimensions 24.6*24.6*17.2 mm
Additional dimensions (shown) Motor height: 15.1 mm (0.59 in); Length shown: 28.6 mm (1.12 in); Length shown: 90 mm (3.54 in)

Applications

  • 3″ ducted whoop
  • 4″ drones
  • 5″ lightweight toothpick builds

Whats Included

  • 1 * 2204 2400KV brushless motor
  • 1 * Pack of M2 screws

Details

Dimensional reference for fitting the 2204 motor on compact 35 inch builds, including shaft and lead length measurements.
