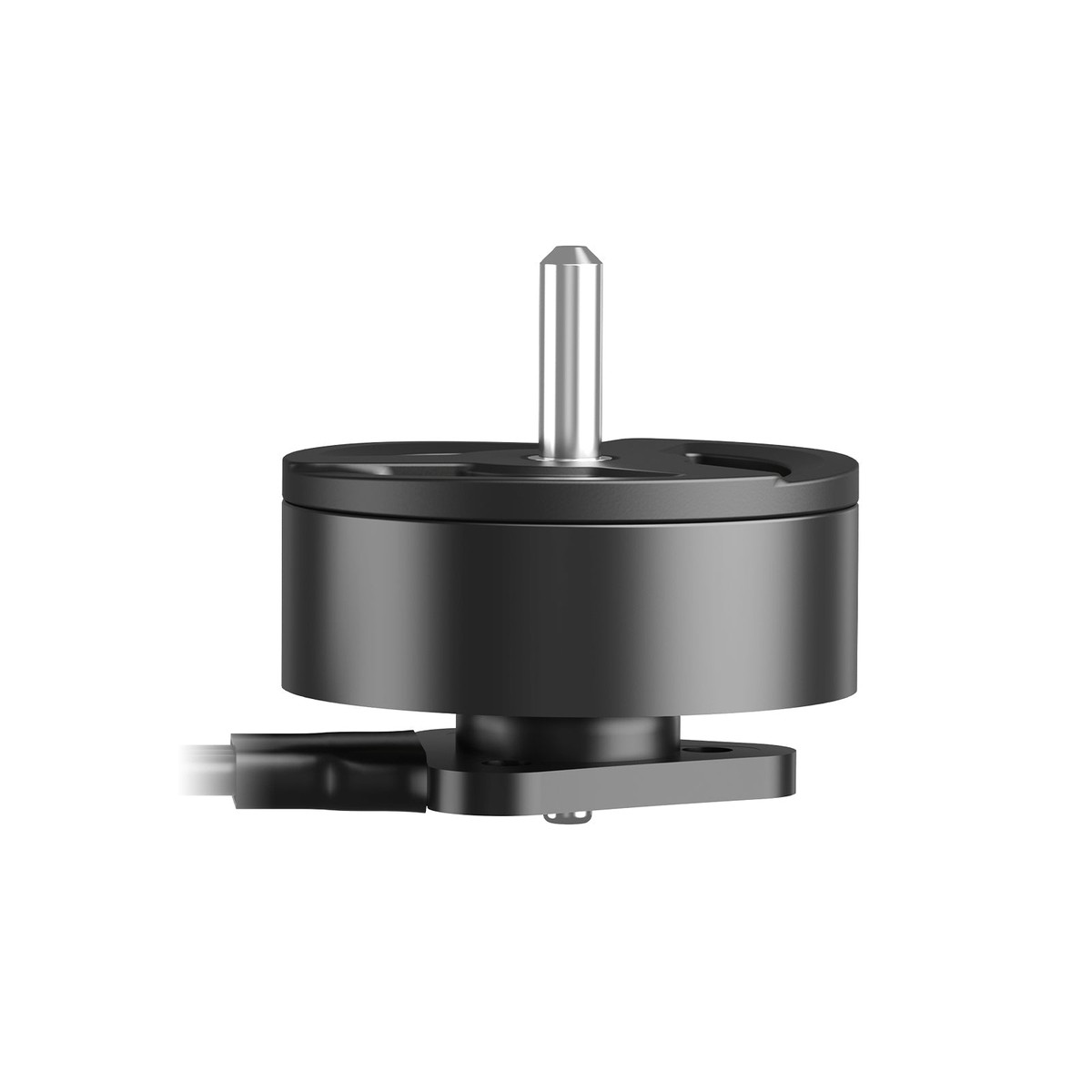

Name: BetaFPV 1103 10500KV Brushless Motor for Aquila20 (2S) | Dual Ball Bearing, 1.5mm Shaft
SKU: WKA86610369103
Availability: InStock

Description
Reviews (0)

Overview

BetaFPV 1103 10500KV brushless motors are engineered for the Aquila20 and matched to its 2S propulsion system. When paired with Gemfan 2218 propellers and the Aquila20 battery system, they are designed to deliver responsive thrust and support extended flight time in an integrated setup.

Key Features

Made for Aquila20
10500KV brushless motor for 2S input voltage
Dual-ball bearings
1.5mm shaft diameter
52mm wire length (connectors included), 30AWG
Black color, 3.5g 0.1g per motor

For compatibility questions (motor version, quantity options, or spare parts), contact https://rcdrone.top/ or email [email protected].

Specifications

Item	1103 Brushless Motors
KV	10500KV
Bearing Type	Dual-ball bearings
Input Voltage	2S
Shaft Diameter	1.5mm
Shaft Length	5mm
Mounting Hole Size	6.6mm
Screws	M1.4 * 3
Wire Length	52mm (connectors included)
Wire Gauge	30AWG
Color	Black
Weight	3.5g 0.1g

Dimensions

Motor Height	13.8mm / 0.54in
Motor Diameter	13.6mm / 0.53in
Shaft Diameter	1.5mm / 0.6in
Shaft Length	5mm / 0.19in
Wire Length	52mm / 2.05in

Load Performance

Model: C23 P1103-10500KV
Propeller: GF 2218-3

Voltage (V)	Throttle (%)	Current (A)	Thrust (g)	Efficiency (g/W)	Input (W)	Speed (RPM)
7.94	20	0.29	11	4.86	2.26	11191
7.93	30	0.80	26	4.03	6.33	16957
7.92	40	1.62	42	3.31	12.80	21901
7.91	50	2.66	60	2.85	21.04	26154
7.90	60	3.85	80	2.63	30.43	30416
7.88	70	5.16	97	2.39	40.63	33674
7.87	80	6.57	113	2.19	51.66	36610
7.85	90	8.10	128	2.01	63.57	39019
7.82	100	9.90	142	1.83	77.47	41219

Recommended Parts

Quadcopter: Aquila20 Brushless Whoop Quadcopter; Aquila20 FPV Kit; Aquila20 HD FPV Kit
Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Battery: Aquila20 Exclusive Battery
Frame: Aquila20 Brushless Whoop Frame

Whats Included

1103 Brushless Motors (4PCS)

4 * 1103 brushless motors
12 * M1.4*3 screws

1103 Brushless Motors (1PCS)

1 * 1103 brushless motor
