BETAFPV 1102 22000KV 1S Brushless FPV Motor for 2.0 to 2.5 Inch 75mm Whoop Racing Drones

BETAFPV 1102 22000KV 1S Brushless FPV Motor 2.79g Micro Motor for 75mm Whoop Racing Drones

Overview

The BETAFPV 1102 22000KV Brushless FPV Motor is built for 1S 75mm whoop drones, delivering higher RPM and punchier throttle response for aggressive indoor FPV racing. Weighing only 2.79g, this motor features a red and black anodized bell, precise dynamic balance, and a durable ball bearing design that improves performance and motor lifespan.

Compared to the 18000KV version, the 22000KV variant provides stronger thrust (up to 46.3g) and faster reaction, ideal for pilots seeking extra acceleration and responsiveness in tight race spaces.

Key Features

• 22000KV output for enhanced thrust and faster throttle response

• Optimized for 1S LiPo systems on 75mm micro drones

• Lightweight: 2.79g per motor (including wire)

• 1.5mm shaft diameter, suitable for T-mount propellers

• Ball bearing construction reduces friction and improves efficiency

• Micro JST-1.25 3-pin connector with pre-soldered 28AWG cables

• Soldered PCB pads for easier maintenance and reliability

• Recommended for use with Meteor75 frame, BT2.0 battery, and 40mm 3-blade props

Performance (with GF-1635-3B props)

Specifications

Recommended Components

• Frame: Meteor75

• Battery: BT2.0 450mAh 1S

• Propellers: 40mm 3-blade (e.g., GF-1635-3B)

• Flight Controller: F4 1S 5A FC / F4 1S 12A AIO

• Screws: Meteor Series Motor Fixing Screws Pack (M1.44mm)

Package Includes

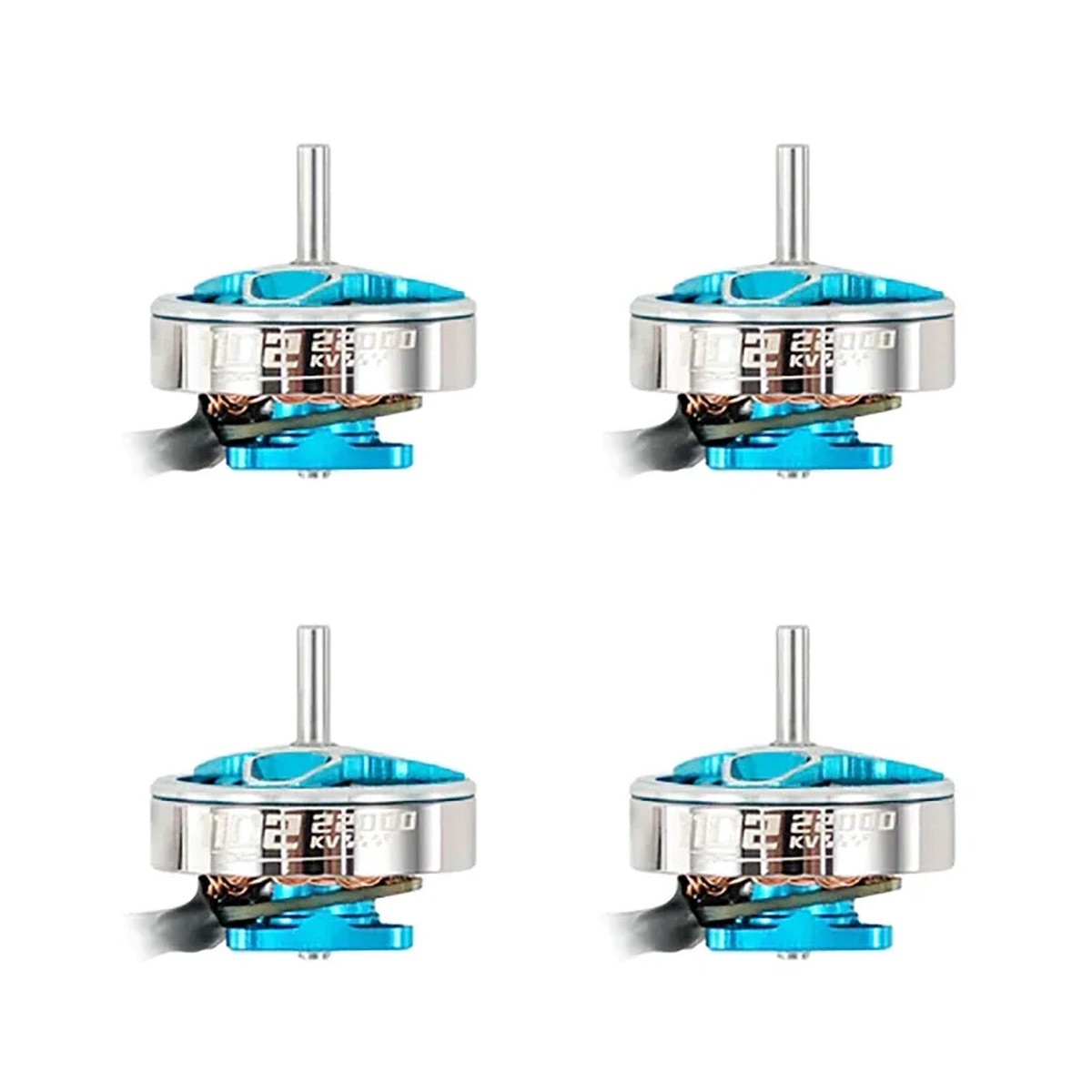

• 4 BETAFPV 1102 22000KV Brushless Motors

• 1 Pack of M1.4 4mm Mounting Screws

BETAFPV 1102 22000KV 1S Brushless FPV Motor specs include dimensions, load performance with various props, voltage, current, speed, thrust, efficiency, and coil temperature data for optimal flight performance.
