Name: Axisflying Cine157-2 C157-2 3750KV Cinematic Brushless Motor for AVATA 3.5" FPV Frame Kit (4S)
SKU: ELAC22173211342
Availability: InStock

Description
Reviews (0)

Overview

The Axisflying Cine157-2 (C157-2) is a brushless motor designed for AVATA 3.5″ FPV frame kit builds, developed for cinematic FPV flying with an emphasis on smooth control feel, responsiveness, and torque.

For product selection or compatibility questions, contact https:/// or email support@.

Key Features

C157 motor upgrade for DJI AVATA to improve flying feel; described benefits include more power, better maneuverability, and less prop wash than the stock motor.
Bearing Shield Technology (BST): IP53-rated dustproof and waterproof bearing placement design.
BST helps protect from environmental elements and is intended to prolong bearing smoothness and lifespan.

Specifications

Parameter	Value(s)
Model	Cine157-2 / C157-2
KV	3750KV; also stated as 3750KV @ 4S with DJI AVATA props
Battery	4S
Slot poles	12N14P; also stated as 12N14P / N52H arc magnet
Stator size	1507
Internal resistance	83 m
Size / dimensions (Dia * Len)	1918.3 mm; also stated as 1918.9MM
Wheelbase	1.5 mm
Motor mounting holes	4-M2 (chart); also stated as 3*M2 (10mm)
Wire	Silicone line 22# 100 mm; also stated as AWG 24#, 100MM
Weight	13.58 g (wire included); also stated as 14.5g (including 150MM cables)
Max power	506.56 W
Max current	31.66 A; also stated as most current is about 25A
Thrust (stated)	Can get over 0.6KG

Testing Data (C157-2 3750KV, HOT90-4P, 16.00 V)

Throttle	Voltage (V)	Current (A)	Thrust (g)	RPM	Power (W)	Efficiency (g/W)
20%	16.00	2.19	52	12379	35.04	1.48
30%	16.00	4.44	179	16356	71.04	2.52
40%	16.00	7.00	239	18269	112.00	2.13
50%	16.00	10.06	324	20725	160.96	2.01
60%	16.00	13.28	392	22956	212.48	1.84
70%	16.00	17.80	474	25095	284.80	1.66
80%	16.00	22.27	544	26828	356.32	1.53
90%	16.00	27.02	623	26014	432.32	1.44
100%	16.00	31.66	670	23195	506.56	1.32

Whats Included

1* C157 motor
3* M2*4 screws for motor
2* M2*7 screws to lock props

Applications

AVATA 3.5″ FPV frame kit builds
DJI AVATA motor upgrade (cinematic FPV)

Details

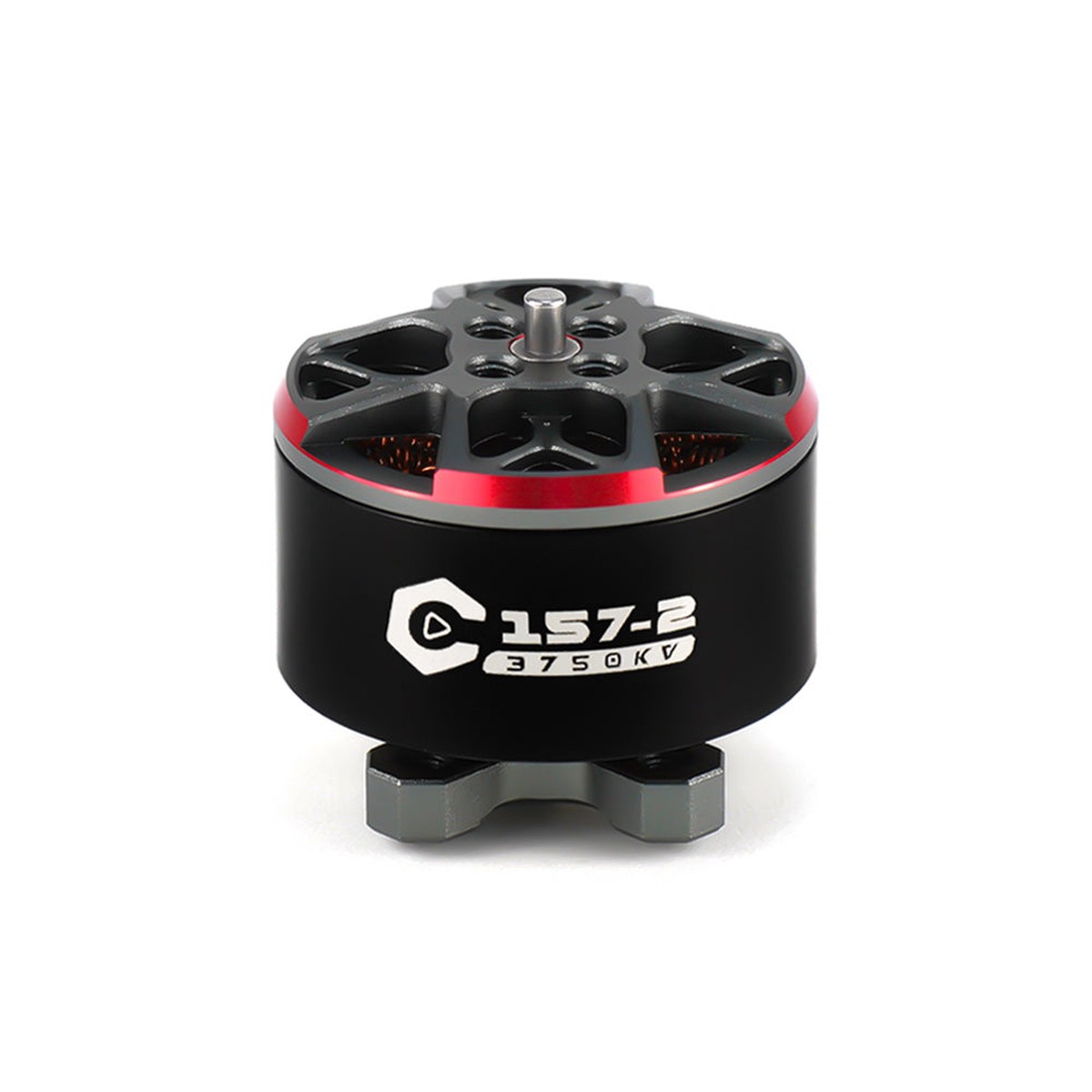

Axisflying Cine157-2 C157-2 3750KV brushless motor is labeled for AVATA 3.5″ setups and features a black can with a red accent ring.

C157-2 motor specifications list 3750KV for 4S setups, a 1918.3 mm body size, and a 13.58 g weight with wire included.

C157-2 3750KV motor includes mounting screws and published 16.00V test results with HOT90-4P props for setup reference.
